Reconditioned, New Bolster, 3 in stock

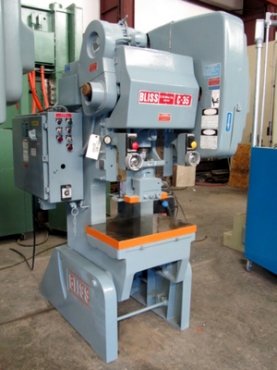

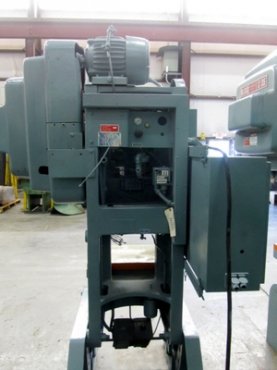

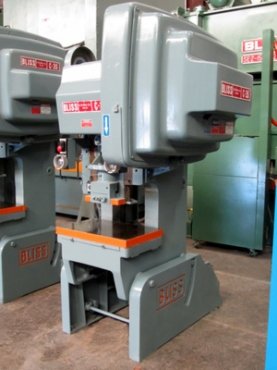

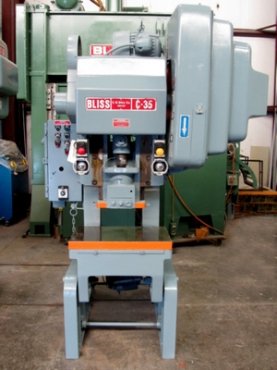

35 TON BLISS FLYWHEEL TYPE PRESS - RECONDITIONED
NOTE: 3 IN STOCK
MODEL: NO. C35
CAPACITY: 35 Ton
STROKE: 3"
SHUT HEIGHT TO BED: 10-3/4" SDAU
BED AREA: 26" RL X 16" FB
SPEED: 120 SPM
RAM AREA: 13" RL X 8" FB
RAM ADJUSTMENT: 2-1/2"
BOLSTER SIZE: 2"x 26" RL x 17" FB (SOLID-NEW)
DIST UPRIGHTS / FLOOR TO BED: 12" / 32-1/2"
CLUTCH: BLISS AIR CLUTCH & BRAKE

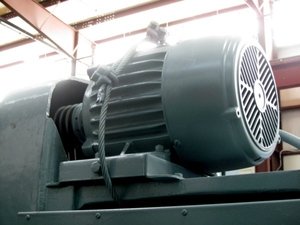

ELECTRICS: 3 HP, 1155 RPM, 230/460/3/60 V

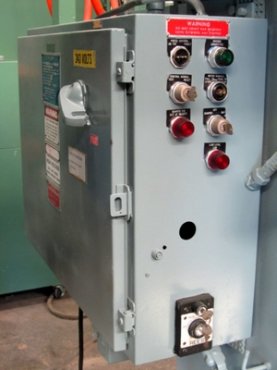

MOTOR & CONTROLS
APPROX DIMENSIONS: 7'6" H X 5' RL X 5' FB
APPROX WEIGHT: 6,500 LBS.
EQUIPPED WITH: CAST IRON FRAME CONSTRUCTION
LUBRIQUIP OIL SYSTEM
FLYWHEEL DESIGN WITH GUARDING
FLOOR STANDING BASE
AIR TANK
YEAR: 1987
CONDITION: VERY GOOD/RECONDITIONED
LOCATION: OUR COLUMBIA, TN WAREHOUSE

5' FB x 5' RL x 7'6" H

6500 (LBS)
