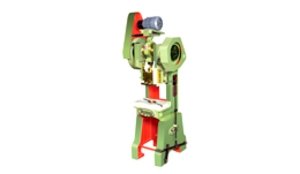

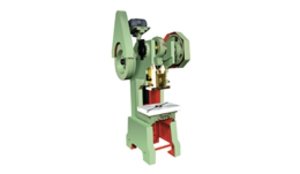

Steel body power press fixed & inclinable
Frame :
The frame is of all steel construction, fabricated from steel plates with suitable cross ribbings. Presses upto 30T will be supplied with C.I. legs. Proper alignment of the frame is ensured by machining of the cut steel plates before welding.
Clutch :
The clutch is of pin/rolling key type. The clutch is rigid and well supported. The clutch gives continuous stroke for mass production.
Crank Shaft :
Crank Shaft is made of special alloy steel machined to close accuracy and fitted in bronze bushes for perfect alignment.
Flywheel :
Properly sized flywheel, is made of high grade cast iron & is balanced for storing and releasing adequate energy for the pressing operations.
Gears :
Gears are of steel cast. Gear teeth are generated by hobbing.
Table & Ram :
Table and ram are made of heavy duty cast iron & seasoned. They are perfectly aligned to each other to obtain quality pressings.
Lubrication :
An efficient shot lubrication system has been provided for lubricating the sliding surface and movigng parts. The lubrication is achieved through hand pump.
Inclining & Mechanism :
Inclinable type presses are provided with inclining mechanism which can be easily set and locked in position. The press is so designed that even in maximum inclined position, it is stale under heavy pressing loads.

Open back c frame inclinable, non-inclinable steel body geared & ungeared power presses
Specifications (C’ Type)

DESCRIPTION 5 Tons 10 Tons 15 Tons 20 Tons 30 Tons
Crank Shaft Dia. 51 60 70 76 89
Stroke Adjustment Jun-38 Jun-51 Oct-64 13-76 13-76
Hole in Ram 25 32 32 32 38
Hole in Bed 63 76 90 90 100
Length and Width Bed 306 381 432 483 534
x x x x x
178 229 305 330 381
Dist. Bed to Ram 190 204 230 254 280
Width of Press Body 230 254 280 305 332
Belt Size B - 52 B – 60 B – 68 B – 80 B – 90
Ele. Motor 960 R.P.M. Ungeared 0.5/H.P. 1/H.P. 1.5/H.P. 2/H.P. 3/H.P.
Ele. Motor 1440 R.P.M. Geared 0.5/H.P. 1/H.P. 1.5/H.P. 2/H.P. 3/H.P.
Fly Wheel DIa
Ungeared 406 508 508 597 622
Geared/Double Geared 356 409 458 508 560
STROKE PER MINUTE
Double Geared - - - 50 40
Ungeared 120 120 120 110 110
Geared 80 70 65 45 40
Floor to Top of Bed 687 724 737 789 801
Weight Approx. 280 500 750 1000 1400

2.
DESCRIPTION 40 Tons 50 Tons 80 Tons 100 Tons 150 Tons
Crank Shaft Dia. 95 102 120 130 145
Stroke Adjustment 13-89 13-89 13-114 13-114 13-127
Hole in Ram 38 51 51 55 55
Hole in Bed 115 150 203 191 203
Length and Width Bed 534 660 762 813 915
x x x x x
381 407 584 560 610
Dist. Bed to Ram 317 332 431 385 406
Width of Press Body 358 408 457 - -
Belt Size B – 100 B – 102 B – 140 - -
Ele. Motor 960 R.P.M. Ungeared 5/H.P. 5/H.P. - - -
Ele. Motor 1440 R.P.M. Geared 5/H.P. 5/H.P. 7.5/H.P. 10/H.P. 15/H.P.
Fly Wheel DIa
Ungeared - - - - -
Geared/Double Geared 610 662 840 889 714
STROKE PER MINUTE
Double Geared 35 30 - - -
Ungeared 100 100 - - -
Geared 35 35 45 45 35
Floor to Top of Bed 812 840 812 915 915
Weight Approx. 1750 2300 4100 5000 6000

All dimensions are in mm & weight in kg. Approximate only.
* As continuous improvements are contemplated for the product, the design and specifications are not binding.

Note : In ungeared machine 960 RPM and in Geared / Double Geared 1440 RPM MOTOR to be used.
