Reconditioned, 1985

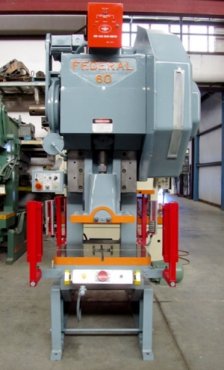

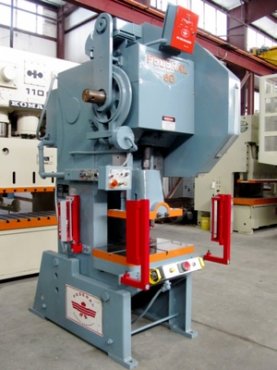

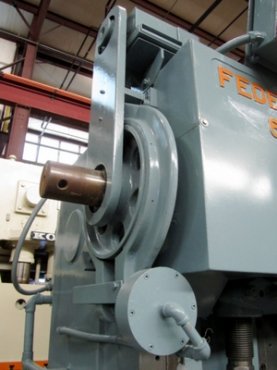

60 TON FEDERAL FLYWHEEL TYPE PRESS - RECONDITIONED
MODEL: No. 60
CAPACITY: 60 TON
STROKE: 4"
SHUT HEIGHT TO BED: 15" SDAU
BED AREA: 32" RL X 21" FB
RAM ADJUSTMENT: 2-1/2" (MANUAL)

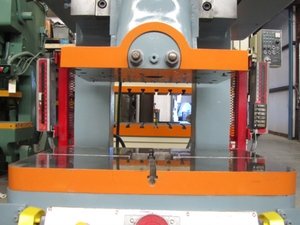

RAM AREA: 21" RL X 16" FB (FLANGED)
SPEED: 90 SPM
DEPTH OF THROAT: 11-1/2"

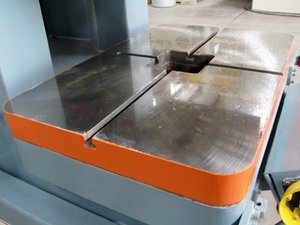

BOLSTER SIZE: 3" X 32" RL X 21" FB (T-SLOT)
DIST UPRIGHTS / FLOOR TO BED: 14-3/4" / 32"
CLUTCH: AIR CLUTCH & BRAKE
ELECTRICS: 5 HP, 440/3/60V

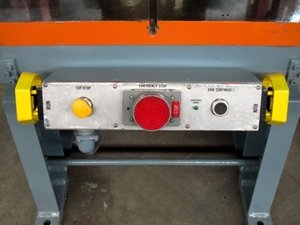

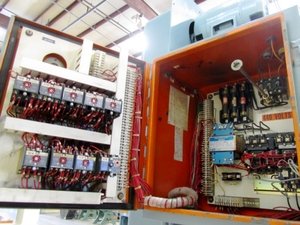

MOTOR & CONTROLS
APPROX DIMENSIONS: 10'8" H X 5' RL X 6' FB
APPROX WEIGHT: 11,200 LBS

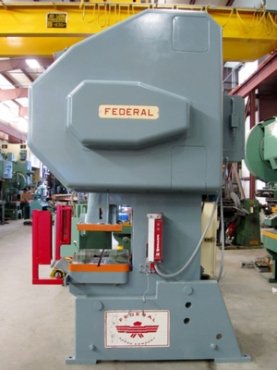

EQUIPPED WITH: CAST IRON FRAME CONSTRUCTION
AIR COUNTERBALANCED RAM

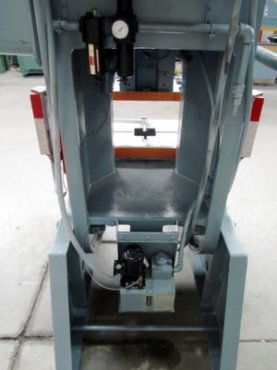

BIJUR AUTOMATIC OIL LUBRICATION SYSTEM
RECONDITIONING INCLUDED: CLEANED WAYS

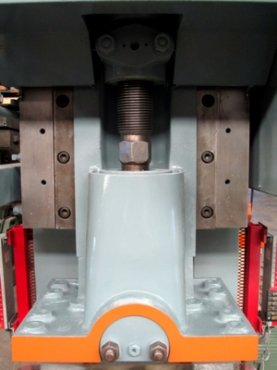

FACED RAM
BLANCHARD GROUND BOLSTER PLATE
YEAR: 1985
CONDITION: VERY GOOD/RECONDITIONED
LOCATION: OUR COLUMBIA, TN WAREHOUSE (Near Nashville)

6'FB x 5'RL x 10'8"H

11,200
