Description:

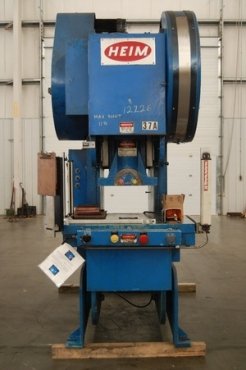

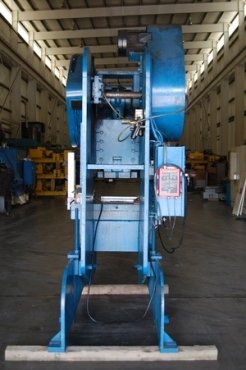

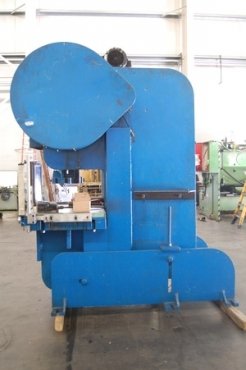

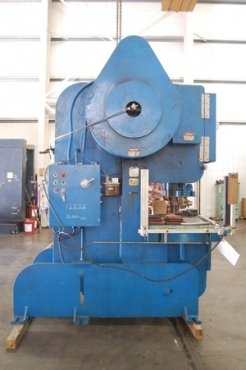

120 TON HEIM BACK GEARED OBI PRESS
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $15,500.00
Stock # 12226
Serial # 2470 New 1979 Model # 12-OBI-B.G.
Bed Size: 30" F-B x 40" L-R
Ram Face: 13" F-B x 18" L-R
Die Shank Hole in Ram: 3"
3" Stroke
Approx. 4" Adjustment
48 SPM
16-1/2" Center of Ram Back to the Frame
Bolster Plate: 30" x 40" x 2-13/16" with 6-1/8" x 6-1/8" Hole in
Center of the Bolster
Dual Palm Buttons
Remote Foot Pedal
Press Controls for Inch, Single Stroke, Continuous Run,
Palm, Foot, Ross Reset
Wintress Light Curtains, Shadow VI
Trico Auto Lube
Inclining Mechanism
10 HP Motor, Wired 3 Phase, 60 Cycle, 230-460 Volts
Presently Wired for 220 Volts
Machine Overall Dimensions: 88" F-B x 55" L-R x 117" H
Weight: 13,200 Lbs.
Specifications:
120 TON HEIM BACK GEARED OBI PRESS
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $15,500.00
Stock # 12226
Serial # 2470 New 1979 Model # 12-OBI-B.G.
Bed Size: 30" F-B x 40" L-R
Ram Face: 13" F-B x 18" L-R
Die Shank Hole in Ram: 3"
3" Stroke
Approx. 4" Adjustment
48 SPM
16-1/2" Center of Ram Back to the Frame
Bolster Plate: 30" x 40" x 2-13/16" with 6-1/8" x 6-1/8" Hole in
Center of the Bolster
Dual Palm Buttons
Remote Foot Pedal
Press Controls for Inch, Single Stroke, Continuous Run,
Palm, Foot, Ross Reset
Wintress Light Curtains, Shadow VI
Trico Auto Lube
Inclining Mechanism
10 HP Motor, Wired 3 Phase, 60 Cycle, 230-460 Volts
Presently Wired for 220 Volts
Machine Overall Dimensions: 88" F-B x 55" L-R x 117" H
Weight: 13,200 Lbs.
