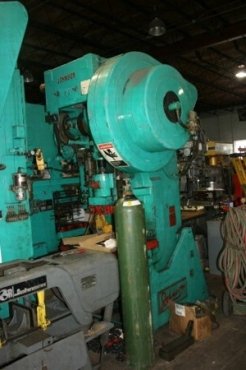

Johnson 60 ton air clucth & brake, 4" stoke, 12 1/2" Shurt height press.
Specifications:
SPECIFICATIONS:
Capacity 60 tons
Stroke 4"
Slide adjustment 3-1/2"
Ram area 13-1/4" x 11-1/2"
Bed area 21" x 32"
Bolster plate 3"
Shut height, SDAU, over bed 12-1/2"
Depth of throat 11-1/2"
Press speed 100 spm
Main motor (900 rpm) 5 HP
Electrics 208-220/440/3/60
Dimensions (L x W x H) 71" x 72" x 112"
Weight, approx. 11,000 lbs.
ACCESSORIES:
Air clutch and brake, Dual palm buttons, Foot switch
Controls: single/continuous/off, Jog, Top stop, Parts counter
