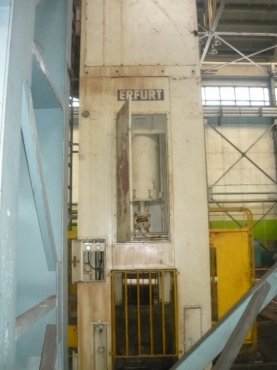

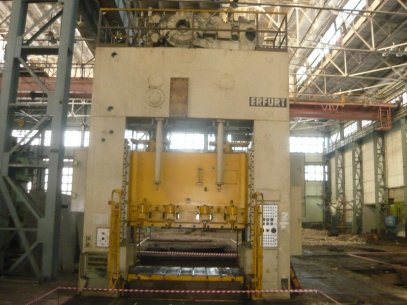

Sheet stamping press ERFURT PE-2U-315/2500/1450 made in 1987, Germany.
Specifications:
Max slide-block force by the distance until lower dead point 12,5 mm: 3150 kN
Slide-block force by the distance until lower dead point 160 mm: 1100 kN
Amount of idle forces: 25 mm
Slide-block course: 400 mm
Min closed shut height: 580 mm
Max closed shut height: 900 mm

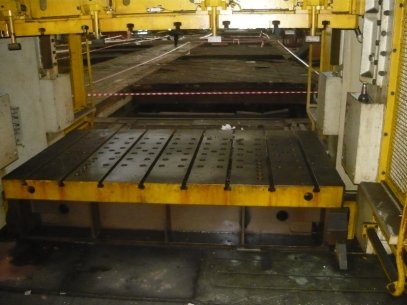

Moving table dimensions: 2500x1450 mm

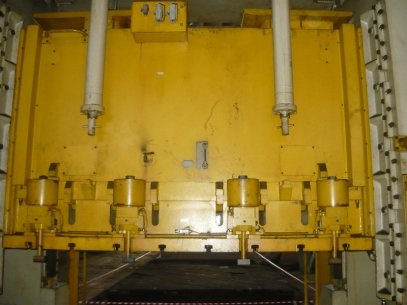

Slide-bock dimensions: 2500x1400 mm
Table pillow:
-Max course: 160 mm
-Course adjustability: 160 mm
-Max force of doubled power supply: 630 kN
-Max force of ejection: 630 kN
Main motor power: 45 kW
Heigh above floor level: 7100 mm
