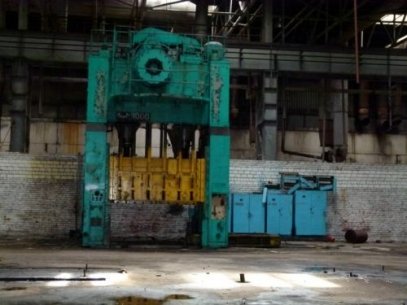

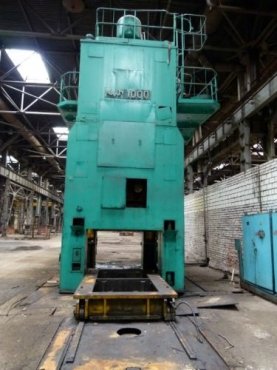

Sheet stamping press VORONEZH KA3540 made in 1985, Russia.
Specifications:
Nominal force: 1000 ton
Slide stroke: 400 mm
No of continuous slide strokes per 1 min: 20
No of single slide strokes per 1 min: 16
Shut height: 810 mm
Slide adjustment: 320 mm
Table dimensions: 3150x1800 mm
Slide dim., front-back: 1700 mm
Bolster thickness: 250 mm
Slide travel to its extreme position where press develops nominal force: 12 mm
Total pneumatic cushion force: 200 ton
Pneumatic cushion working stroke: 200 mm
Upper knock-out force: 50 ton
Main-drive electric motor power: 132 kW
