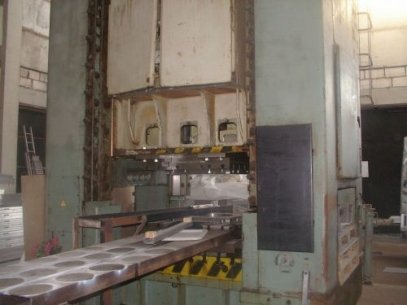

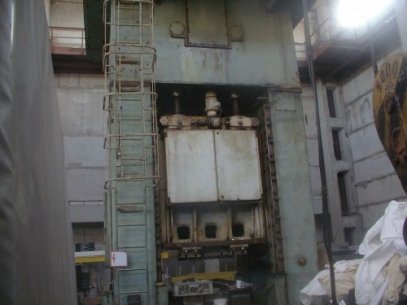

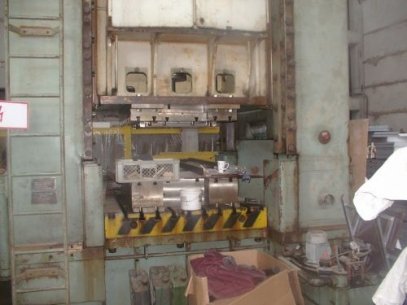

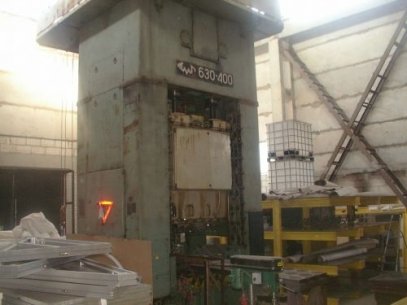

Double-action crank stamping press KA5538 made in 1988, Russia. Press is almost not used.
Specifications:
Nominal effort:
-Exhaust slider: 630 ton
-Clamping slider: 400 ton
Slide stroke:
-Exhaust: 800 mm
-Clamping: 500 mm
Strokes number per 1 minute: 9:14
Closed height off:
-Exhaust slider: 630 ton
-Clamping slider: 780 mm
Slide adjustment: 250 mm
Table size:
-Left-to-right: 1600 mm
-Front-to-back: 1600 mm
Table hole size:
-Left-to-right: 1000 mm
-Front-to-back: 1000 mm
Exhaust slider size:
-Left-to-right: 1000 mm
-Front-to-back: 1000 mm
Clamping slide size:
-Left-to-right: 1600 mm
-Front-to-back: 1600 mm
Window size in the collumns:
-Left-to-right: 1640 mm
-Front-to-back: 1535 mm
Bolster plate height above the floor: 620 mm
Working stroke cushion at the table: 250 mm
Main motor power: 90 kW
