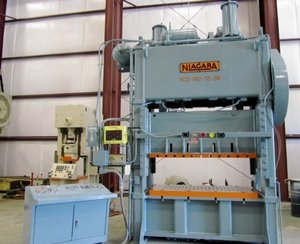

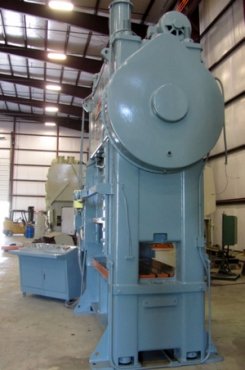

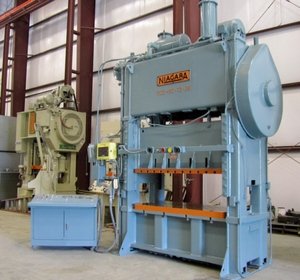

150 TON NIAGARA STRAIGHT-SIDE DBL. CRANK PRESS - RECONDITIONED
Model: NO. SC2-150-72-36
Capacity: 150 TON
Stroke: 8"
Shut Height to Bed: 22" SDAU

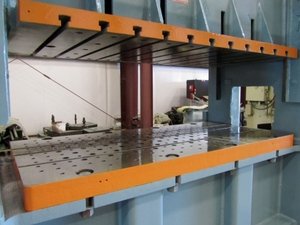

Bed Area: 72" RL X 36" FB
Speed: 36 OR 54 SPM
Ram Area: 72" RL X 36" FB (T-SLOTTED)
Bolster Size: 3-3/4" X 72" RL X 36" FB(T-SLOT)

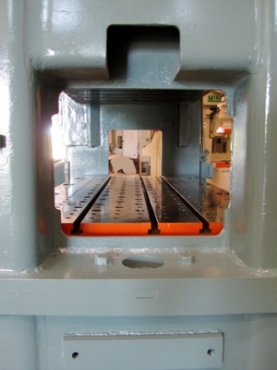

Window Size: 17" FB X 15" H
Dist Uprights / Floor to Bed: 79-1/2" / 32-1/2"
Clutch: AIR CLUTCH & BRAKE
Electrics: 20 HP, 1710 RPM, 220/440/3/60V
MOTOR & AB VARIABLE FREQUENCY
DRIVE
Approx. Dimensions: 14'3" H X 11'5" RL X 6' FB
Approx. Weight: 40,000 LBS.
Equipped With: STEEL FRAME CONSTRUCTION
FLOOR STANDING BASE
TIE ROD WITH GEARS IN OIL
AIR COUNTERBALANCED RAM

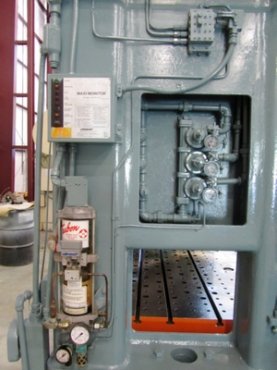

TRABON AUTOMATIC GREASE SYSTEM
Reconditioning Included: *BLANCHARD GROUND BOLSTER PLATE
Year: 1960
Condition: VERY GOOD/RECONDITIONED
Location: OUR COLUMBIA, TN WAREHOUSE (Nashville area)
