Specifications:
CAPACITY
Bed Width 47"
Bed Length 86"
Maximum Distance under Ram 51"

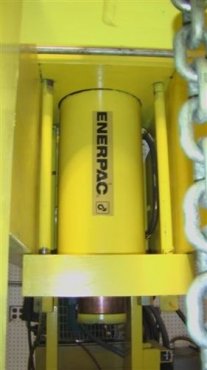

RAM
Type of Ram hydraulic
Machine Type Gantry
Tonnage 200 tons
TRAVELS
Longitudinal 104"
Cross 23.6"
Vertical 13"
Equipped With:
Roll frame design
sub table 35" x 54"
vertical daylight: 11-51"
Horizontal daylight:48"
Hydraulic bloster lift
Hydraulic table clamp
manual table movement
