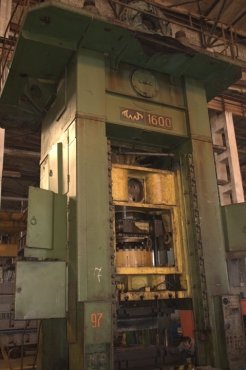

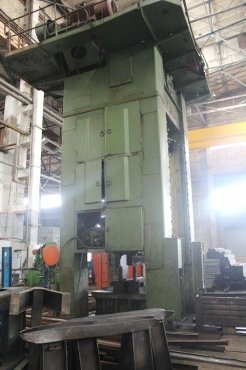

Trimming press VORONEZH KB 2542 1600t
Condotion: good working, still under power, full complete.
Specifications:
Technical specification:
Maximum force ton-force 1600
Slider stroke length mm 400
Unattainable-course mm 12
Number of courses rpm 20
Number of single turn-on rpm 15
The closed height mm 870
Adjustment mm 200
Under-forginig plate: mm
- from left to right 1250
- from front to rear 1250
- thickness 260
Slider mm 1200 x 1460
Aperture in a table mm 800 x 800
Windows in racks mm 1260 x 780
The maximal course of a rigid pusher in a slider mm 70
force of a rigid pusher in a slider ton-force 50
Main electric motor power kW 110
The maximal working course of a pneumatic pillow mm 250
The maximal force of pushing out of a pneumatic pillow ton-force 71
Hydropneumatic pillow:
- The maximal working course mm 125
- The maximal force of pushing out ton-force 12
- The maximal force of a clip ton-force 125
Press overall dimensions: mm 4670/4670/8110
