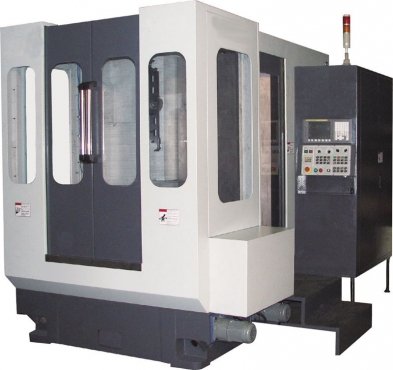

Description:
1. Adapt inverted T-shaped distribution, column moving, and better rigidity.
2. The spindle use high-quality motor to drive, large torque.3. Indexing table covering 1×360, rat tooth plate positioning, high positioning accuracy.
4. Continuous indexing CNC rotation table, employ INA flatbed annular contact thrust ball bearing (Import from Germany), assure superior transmission rigidity and optimized shock absorption performance.
5. Greatly improved the transmission system's dynamic rigidity, enabling 15m/min rapid traverse speed.
6. The guide designed by the principle of wide-inclusive, narrow-oriented, after quenching and grinding, hardness could reach hrc52 or more, fit on the matching guide surface, using intermittent centralized lubrication, assure machine's smooth motion, and maintain high-accuracy.
7. Good cost performance, our factory accuracy is 30% higher than the national standard, belongs to Precision Class machining center.
8. Machine use three-dimensional design, with elegant appearance.
Specifications:
Standard scheme
Cam robot magazine
Automatic spiral chip conveyor
Cooling system (chip Assembly slot)
Automatic lubrication
Table indexing: 1°×360
Fully protection
CNC system: FANUC Oi-MC
Manual operating unit
Optional scheme
Closed loop control
CNC rotation table
Dual pallet
tool inspection system
workpiece probe system
Hollow spindle inner-cooling
Oil-water separator
Chain plate Chip elevators
CNC system: SIEMENS / HNC / MITSUBISHI
Dimensions:
2550*2550*2450mm
Weight:
10000kg
