max. 45° mitre cut: 185x220mm
sawing length max.: 320mm
sawing height max.: 230mm
sawing diameter max.: 270mm
working height: 830mm
mitre left: 60°
mitre right: 45°

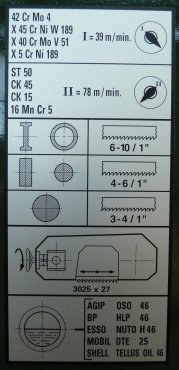

cutting speed max.: 76m/min
cutting speed min.: 27m/min
saw band height: 27mm
saw band length: 3.025mm
power max: 1,8kW
weight: 600kg
dimension L*B*H: 1.500*960*1.320mm

equipment:
- patented original clamping system for inclined cuts by two stops adjustable up to +60°/-45°

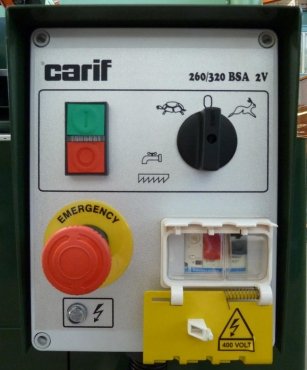

- adjustable down stroke speed and cutting pressure
- easy swivel of bow on bearings-independently from weight of parts in the vice
- rapid travel of vice for cutting to r.h. and l.h. side
- easy chip-removal
- measuring device graduated in millimetres for mass-production cuts L=500mm
- service wrench
- user manual

-
