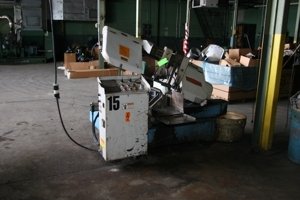

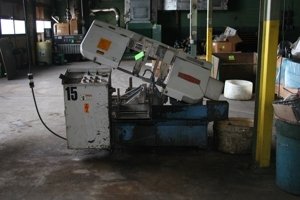

(4) PRE OWNED DAITO GA 260W SEMI AUTOMATIC BAND SAW
SERIAL NUMBER:151KY4-4
GENERAL SPECIFICATIONS
BLADE SIZE 0.0035” X 1” X 11’6”
CUTTING CAPACITIES 10 ¼”
ROUNDS 10’ ¼”
FLATS 12” X 10 ¼”
BUNDLES 12” X 4”
BLADE SPEEDS (VARIABLE) 66 – 525 PER MINUTE
MAX WORKLOAD 5500 LBS
SAW WHEEL DIAMETER 17”
FEEDING STROKE
SINGLE 16”
MULTIPLE 32’9 ¾”
MOTOR
BLADE 5 HP
HYDRAULIC 1 HP
COOLANT 1/12 HP
CHIP CONVEYOR 1/30 HP
HYDRAULIC RESERVOIR CAPACITY 10.6 GALLONS
COOLANT RESERVOIR CAPACITY 21 GALLONS
EQUIPPED WITH

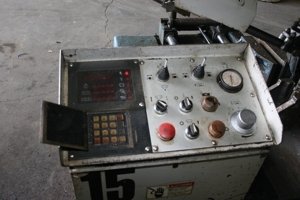

DIGITAL CONTROLS WITH SELF DIAGNOSTICS
RAKE TYPE JAM RESISTANT SCRAP CONVEYOR
INFINITELY VARIABLE DOWNFEED PRESSURE
SAFETY GUARD COVERS BLADE WILL SAWING
VISE PRESSURE REGULATOR FOR THIN TUBE CUTTING
ADJUSTABLE COOLANT SYSTEM
MANUAL TRIGGER FOR OPERATION OF SAW
HYDRAULIC P.S.I GAUGE
MADE IN JAPAN
APPROXIMATE OVERALL DIMENSIONS 75 1/4” W X 62 1/4”D X 39 3/4” H
APPROXIMATE OVERALL WEIGHT 2750 LBS
