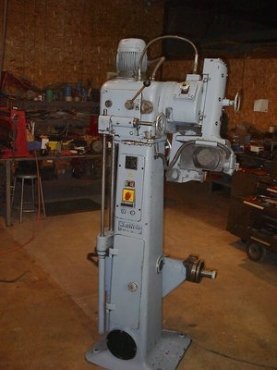

49" to 72" capacity available. Great for friction blades and cold saw blades. Gear drive for accuracy.

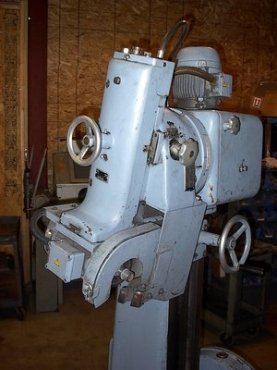

dovetailed guideways with adjustable gibs for the grinding head.
· Convenient controls permit quick adjustment for accurate grinding of desired tooth form. Designed for accurately grinding either the triple chip or alternate bevel tooth form.
· Ideal for generating the tooth form for friction saw blades.
· Totally enclosed gear transmission with four indexing speeds of 25, 51, 38 and 78 strokes per minute.
· Automatic lubrication for gears and cams.
· No electric exhauster for dust extraction included.
· Grinding wheel widths can range from 1/8” to 1-1/8”. Minimum blade center hole is 1-1/8”, maximum without special clamp flanges is 4-1/2”.
· Two electric motors 230/460v 3 phase please specify:
1 - grinding spindle motor, 1.7 hp, 3600 RPM
1 - 2-speed indexing motor, 1/0.5 hp, 1800/900 RPM
· Electric control for all motors, wrenches and guards, including one grinding wheel (9”
diameter), one blade centering ring, an instruction book, and a standard set of gears.
· Optional - Automatic wheel feed attachment – The unit of time for 1 feed motion is preselected by means of a timer. Subsequently, the feed pulses required for sharpening are preset. After reaching the preset number of pulses, the power feed shuts off.

Delivery: 2-4 weeks after receipt of down payment.
Terms: 25% down, cash before removal.


PRICE: F.O.B. Aurora IL Standard 49” $18,500.00
Extended to 56” $20,500.00
Extended to 60-72” $21,500.00
Optional Auto Infeed +$2,500.00
Optional Dust Exhauster +$500.00
