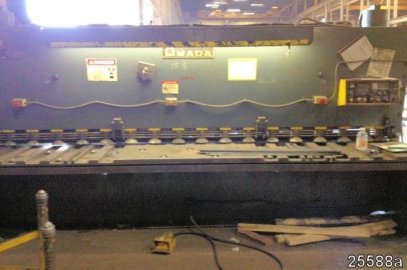

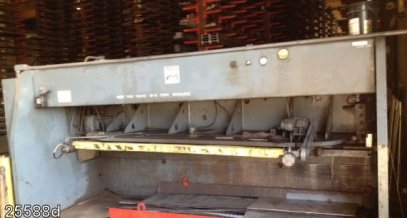

Amada 13' x 1/2" Hydraulic Shear with Power BackGauge Readout

Specifications:
13 FT. X 1/2" AMADA HYDRAULIC SHEAR

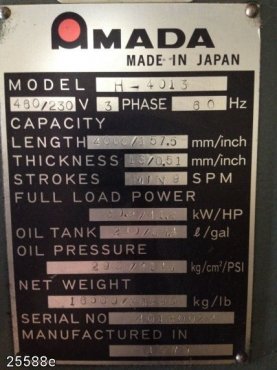

Model no. H-4013

Capacity: 13' x 1/2" mild steel

Length of knives: 162"

Distance between housings: 163.5"

Gap: 20"

Rake angle: 0° - 1.5°

Holddowns: 18

SPM approx.: 40

Floor to top of bed: 44-1/2"

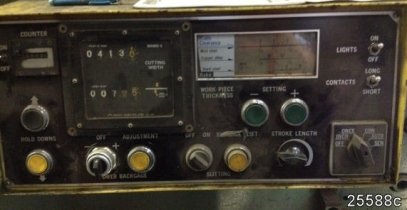

EQUIPPED WITH: 42" front operated power back gauge with control &

readout in inches & millimeters

8' squaring arm

(1) stock support arm

Power rake angle with control & readout in inches &

millimeters

Blade clearance adjustment

Stroke length adjustment

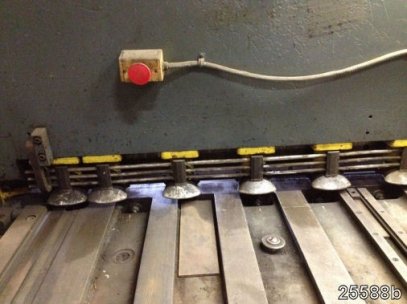

Power holddowns with pushbuttons for on - off

Electric foot switch

Pushbuttons for start - stop & emergency stop button

Toggle switches for long - short

Selector switch for inch - off - once - continuous &

automatic

Extra set of blades

Work piece thickness selector

Bijur one shot oil lubrication

Transfer balls in top of table

Finger & holddown guard

(4) T-slots in top of bed

T-slot in front of bed

Hydraulic pump, driven by

41.2 HP 1460 RPM 230/460/3/60 motor

Weight approx. 36,400#

Overall dimensions approx. 186" L-R x 96" F-B x 102" H
