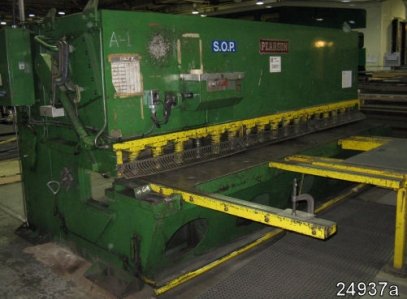

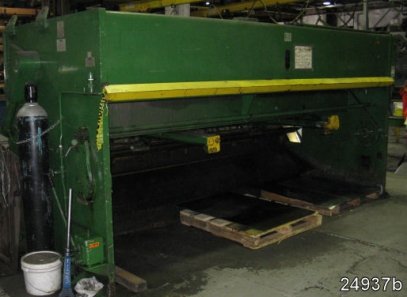

Pearson 12' x 1/2" Hydraulic Shear w/ Power BackGauge Readout

Specifications:
12 FT. X 1/2" PEARSON HYDRAULIC SHEAR

Model no. 1212

Capacity: 12' x 1/2" mild steel

Length of knives: 147"

Distance between housings: 152"

Gap: 12"

Holddowns: 17

Floor to top of bed: 31-1/2"

S.P.M. approx.: 12 to 32

EQUIPPED WITH: 40" front operated power back gauge with

control & readout in inch & metric

5' squaring arm

(2) stock support arms

Full length foot treadle

Pushbuttons for start - stop

Blade rake adjustment control

Transfer balls on top of table

Rear parts chute

Hydraulic pump, driven by

40 HP 1165 RPM 575/3/60 motor

Weight approx. 33,000#

Overall dimensions approx. 180" L-R x 89" F-B x 90" H
