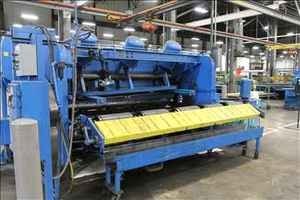

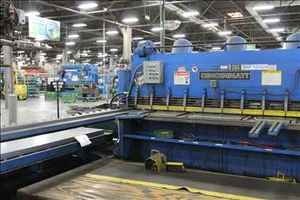

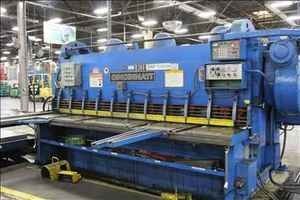

(1) PRE OWNED 1998 CINCINNATI MODEL 4310 MECHANICAL POWER SQUARING SHEAR
SERIAL NUMBER 50478
GENERAL SPECIFICATIONS:
CAPACITY 1/2”
DISTANCE BETWEEN HOUSINGS 10’3”
BACK GAUGE RANGE 0 - 36”
BACK GAGE SPEED 120” PER MINUTE
RAKE TAPER 3/8” PER FOOT
THROAT 4”
STROKES PER MINUTE 40
HYDRAULIC HOLD DOWNS: 13
DISTANCE UNDER HOLD DOWNS 3/4”
MAIN DRIVE MOTOR 15 HP
EQUIPPED WITH:

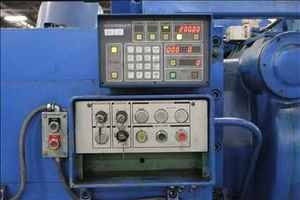

DIGITAL GAUGE CONTROL
99 PROGRAM CAPACITY, 99 STEPS EACH PROGRAM
OFF LINE STORAGE

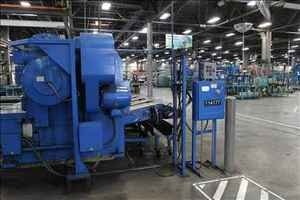

MET-FAB MODEL 1/2 X 10 REAR EXIT CONVEYOR
SERIAL NUMBER: 9810
10 STEEL BELTS
PNEUMATIC SHEET SUPPORTS FOR THIS GAUGE MATERIAL
PNEUMATIC SCRAP SEPARATOR
SCRAP TRAY
10’ SQUARING ARM
DUAL ELECTRIC FOOT SWITCHS
BALL TRANSFERS IN TABLE
36” FRONT OPERATED POWER BACK GAUGE
JAW CLUTCH/ FRICTION BRAKE
AUTOMATIC PRESSURE LUBRICATION
INTERLOCKED STEEL CONSTRUCTION
NON FLOAT INCLINED RAM
