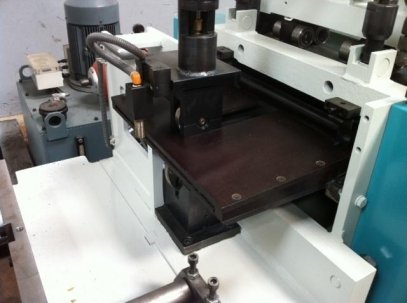

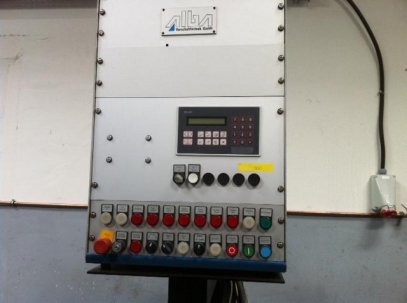

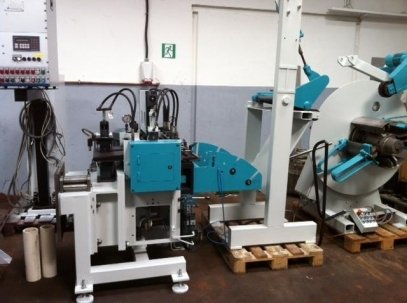

Roll feed: ALBA GVHY 600 Year: 1992 Location: 53424 Remagen identifier (for example, your article number): 1070 Material width (mm): 400 Thickness (mm): 0.5 - 4.0 feed length (mm): 0.1 - 9999.9 Materialqürschnitt (x-axis): 1200 Type of control: conventional machine weight (kg): 800 space about (m): 1.6 x 1.9 x 1.8 Remarks: Custom base with height adjustment with measuring wheel speed hydraulic Ventilation number of rollers 2 roller diameter 120 mm feeding accuracy + - 0.05 in material strength 400 N / mm min. Material width 50 mm speed - 20 m / min Motor power 7.5 kW electro-hydraulic positioning, hydr. Pressing and releasing the top roller, upper and lower roll-hardened, hard chrome plated and polished, both rollers are driven backlash by deflecting with ground gears, rolling support of the upper and lower feed rollers 2-fold over adjustable tandem roller shoes, running roll cage, hydraulic power unit, control panel with controls for cultivation to each stamping presses and hydraulic press eccentric press in connection with strip leveler and uncoiler
