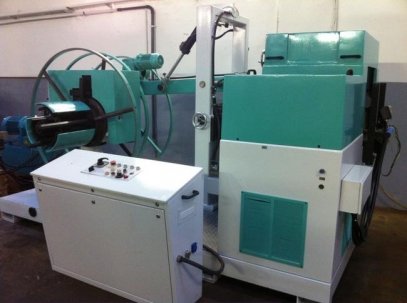

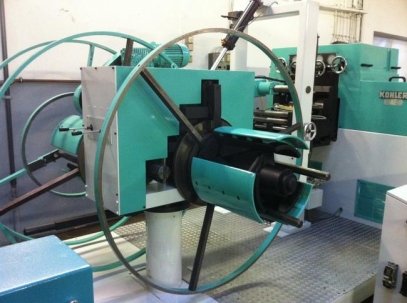

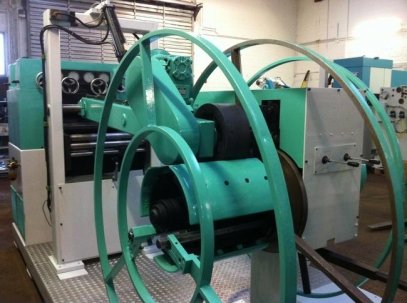

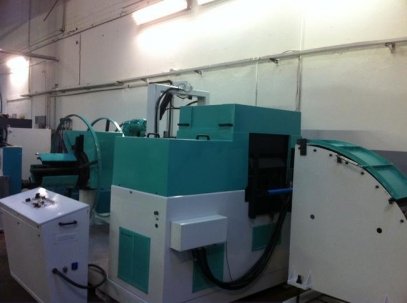

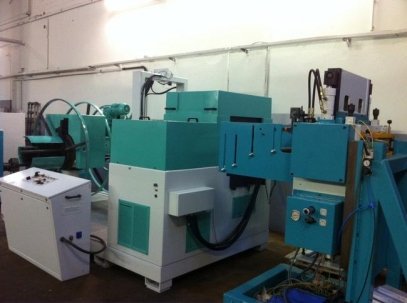

Bearing number 1076 machine type uncoiler straightener with Alba NC roll feeder Year 1998 Make KOHLER Type 60 500/9 Year 1979 Type of control conventional Storage location Storage Remscheid Country of origin Germany Delivery time according agreement Freight basis ex Warehouse, free on truck price on request Technical details Material width 500 mm coil weight 2 x 2 0 t coil pressure roller hydraulic, electro-actuator coil inner diameter 380 - 460 mm coil outer diameter 1500 mm, thickness 0.8 - 6.0 mm Material width straightener 500 mm number of straightening rollers 9, all three times supported straightening roll diameter 60 mm Number of feed rollers 2 feed roller diameter 120 mm, 3000 mm Materialqürschnitt drive power 15,0 kW weight 5,5 t dimensions (WxDxH) 4.0 x 2.1 x 2.0 m
