Cutting Performance
Profiling Speed: Up to 40m/min (1600ipm)
Rapid traverse Speed: Up to 100m/min (4000ipm)
Acceleration: Up to 10m/s2
Accuracy on axis: ± 0.1mm
Repeatability: ± 0.08mm
Configuration
Cutting Widths: 2m
Cutting Length: 4m
Material Thickness: Up to 22 mm mild steel, 12 mm Stainless and 10 mm Aluminium, depending on resonator type
Mechanical
Bearings / Rails: Linear bearings
Drive System: Dual Siemens AC servos
Beam waist compensation: Moving carriage constant beam length system
Electrical/Electronic

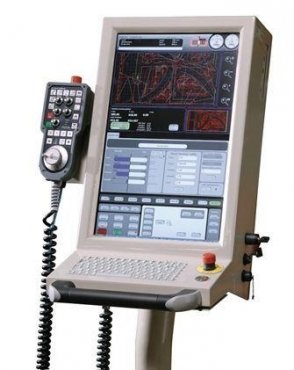

HMI / CNC: HEL EUROPE Laserlab / Siemens 840D
Screen: 24" Touch Screen
Communication: Ethernet LAN
Laser Options
German Lasersource: Rofin DC040
Laserhead: Precitec
Free transportation, inkl. Installation, without unloading and moving to the final position
