Technical specification

Raw material: Hot - rolled steel strip, cold - rolled steel strip and galvanized steel strip.

Coil Specification: Min thickness = 0,30 mm
Max thickness = 3,00 mm
Max width = 1.550 mm
Max weight = 20 tons


Maker: SACMA (ITALY)

Build: 2004 (revamped)

Line space: (16 m long)

Product capacity: 1.500 tons/month - 2 shifts

Line condition: On production, good condition

Line direction: Right to left at operation side




Line Description

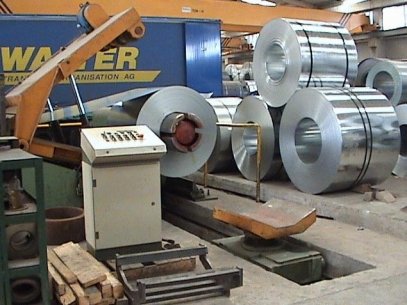

Coil Saddle: 1 coil

Coil car: 1 set

Uncoiler: 1 set

Coil opener: 1 set

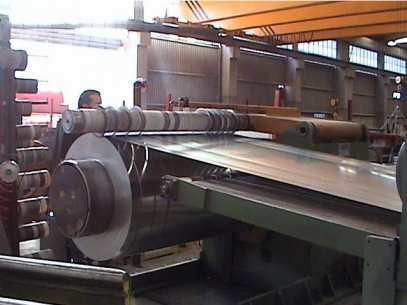

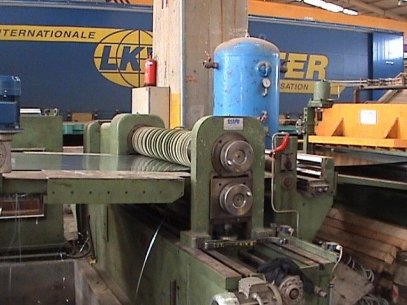

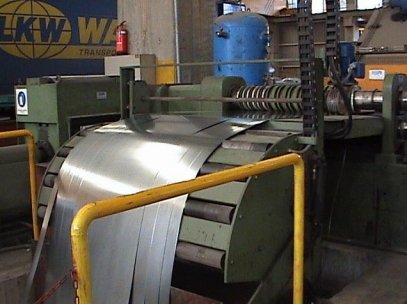

Slitter: 1 set

Hydraulic pinch rolls and edge guides for pull through or drive slitting
Table for lupper: 1 set

Tension device: 1 set

Recoiler: Hydraulic push off and main drive over arm separator

Feeder and hold down roll combination
Scrap baler: 1 set

Saddle with four arms (motorized): 1 set


THE LINE IS UNDER POWER AND MAKING PRODUCTION NOW

-
