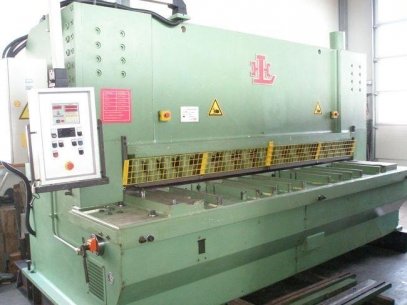

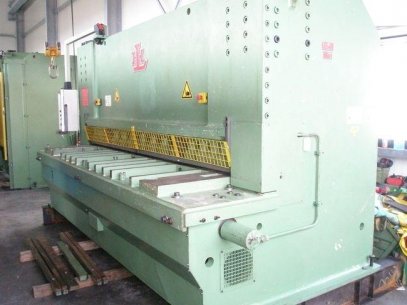

max working width 3040 mm max. Average power at 450 N strength 16 mm at 700 N strength at 12 mm shorter average length of 1200 mm cutting capacity 18 mm 200 mm Number of hydraulic hold-down 15 pcs cutting angle electronically controlled approximately 1 20 - 2 44 - manual side gap adjustment - adjustable cutting lengths - cutting depth preselection back gauge with electronic positioning 10 -1000 mm anterior angle stop + support arms strokes approximately 14 to 36 per / min hydraulic drive 400 V / 45 kW table height 900 mm footprint including backstop without front support arms and guard about B 4350 x D 2600 x H 2350 mm jamb about B 3400 x D 600 x 250 mm Weight approx EH 22500 kg with: -. E-foot switch, line lighting, central lubrication - rear area protection with light barrier and lateral Guards
