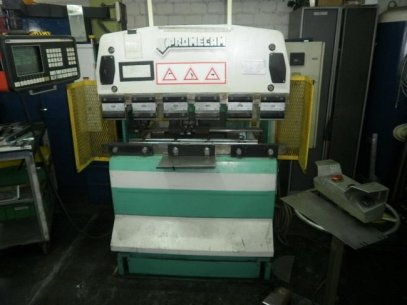

Make Amada / Promecam
Type Promecam RG 25-12
New in 1978
CNC Meiersystem PC 3000
Pressure 25 Tonnen
Bending length 1.250 mm
Distance between side frames 1.020 mm
throat 200 mm
stroke oft he lower press beam approx. 100 mm
Maximum passage between the bar 300 mm
Passage between the beams with spacers 200 mm
delivery speed 20 mm/s
operating speed 17 mm/s
Return speed 80 mm/s
Pump performance 10 l/min
Max. operation pressure 240 bar
Oil tank 40 l
Pressure speed 17,0 mm/l
Drive power 4 kW
dimensions L x W x H 1.310 x 1.000 x 1.715 mm
weight Ca. 1.300 kg

-
