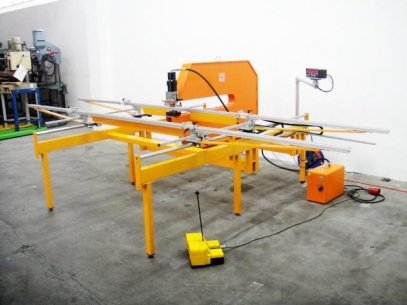

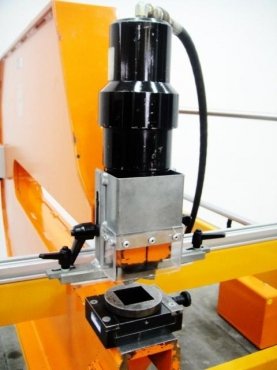

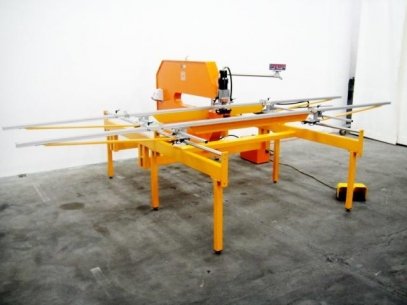

punching capacity 64KN

- round holes up to 60 mm

- square holes up to 46 mm

- rectangular holes up to 62 mm diagonally

max. sheet thicknesses depending on the hole dimension:

- steel plate ST 37 - 3mm

- stainless steel - 2mm

- aluminium 3.5mm

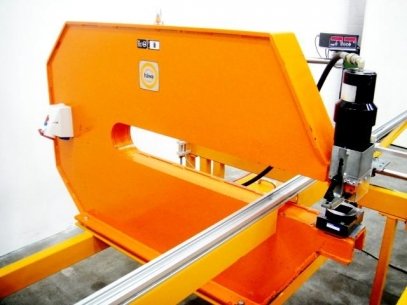

outreach 925mm

max. door dimensions 2,200 x 1,000 mm

working height 950 mm

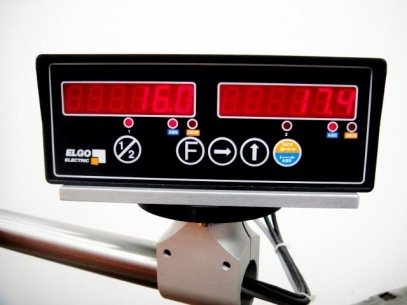

digital display ELGO for X - Y axis - display accuracy 0.1
mm

hydraulic aggregate:

- operating pressure max. 450bar

- flow volume 1.17 litres/min.

- pump capacity 0.55KW

electrical data - hydraulic: 380V / display: 220V

space required length - 4,000 x depth - 2,450 x height -
1,430 mm

weight approx. 420 kg

various tools - list to follow

*- good condition - *

-
