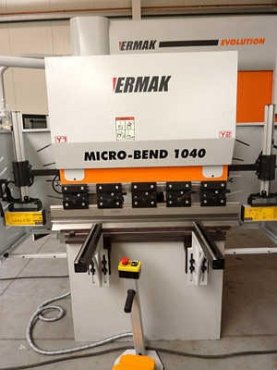

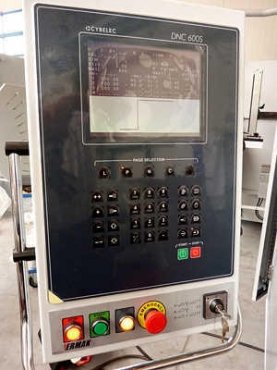

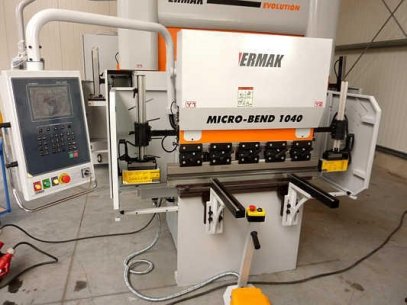

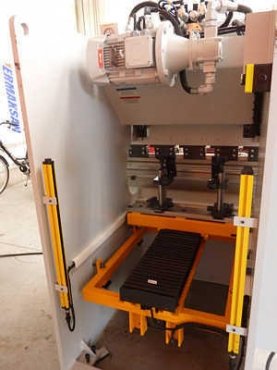

Pressure of 40 tons bending length 1000 mm Distance between columns 800 mm Throat depth 250 mm ram speed 110 mm / sec speed of withdrawal 105 mm / sec operating speed 11 mm / min stroke 100 mm Oelinhalt ltr 60th Table height 850 mm table width 100 mm, operating voltage 400 V Motor power 4.0 kW back stop - adjustable 500 mm Weight 1850 kg Dimension LWH 2150 x 1950 x 1850 mm Features: - CYBELEC CNC control model DNC 600 with graphics Y1 - Y2 - X Achsensteürung - back gauge with 2 gauge fingers, ball screws - Sliding Front support arms (. 2 FRONT support arms) with quick adjustment - quick change punch holder, AMADA Promecam recording - Rehfuss-top tool, polished design - universal matrix block 60x60 mm with 4 V s in Matrizenschuh - Double Foot Switch - SIEMENS - Electrical system - FISSLER photocell behind the machine - BOSCH / HOERBIER hydraulic system - AKAS - laser protection device against the machine - CE-Zeichen/Konformitätserklärung - Bed instructions - including oil filling
