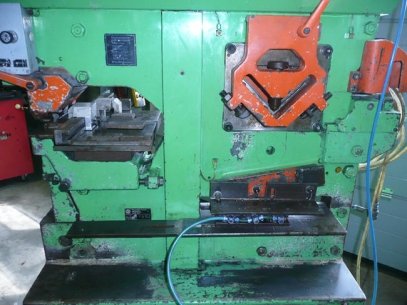

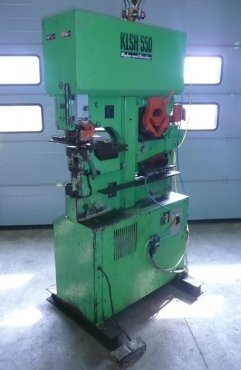

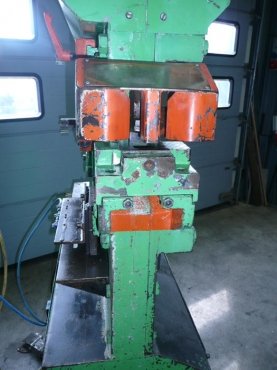

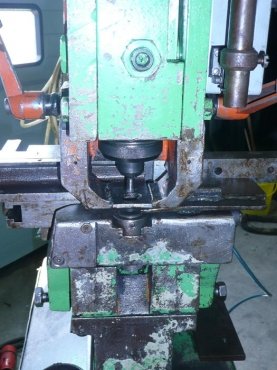

Hydraulic profile, flat, straight and angle steel scissors with Ausklinkvorrichung and hole punch. Flat Shear: 200 x 20 or 400 x 16 mm steel worker: L-Steel 90 120 x 13 mm steel bar cutter: round bar / square bar steel to 35/32 mm release device: triangle - notching plates 12 mm Klink depth 60 mm hole punch. Punching power 50/500 to / kN holes of diameter / material strength 30/15 mm in the flange U-Stahl/I-Stahl 80 - 300 mm in the web U-Stahl/I-Stahl 80 380 mm throat 320 mm Stroke 50 mm stroke rate 50 strokes / min. Drive 7.5 kW Weight 1.100 kg Area approx (L x W x H) 1,160 x 550 x 1,840 mm All data without guarantee. The machine is in very good condition. A demonstration is possible at any time in our exhibition hall.
