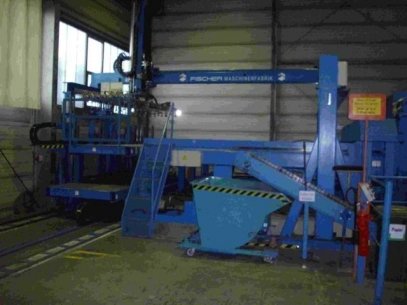

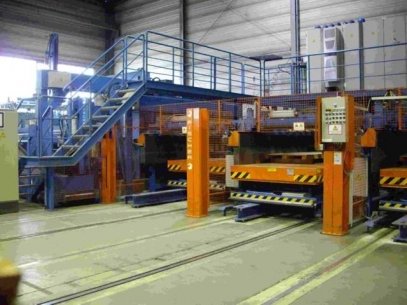

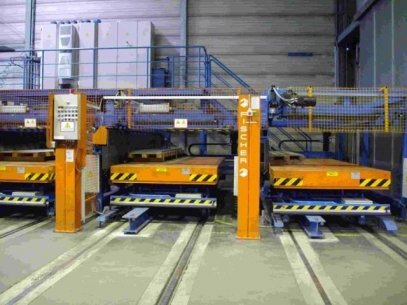

Make fishing type DHS min 4/4000 Rohblechformat built in 2002. Dimension 692.0 mm (width) x 2000.0 mm (length) max. Dimension 1600.0 mm (width) x 4100.0 mm (length) of average power with sheet St37 1-3mm at 400 N Cutting capacity thickness longitudinal plate cut at 4mm thickness only up to 2500mm length Maximum cutting length 4100mm Power supply 400V 50Hz air supply 6 bar automation components 2x loading carriage Automatic Loader System material feed system rotator 4x90 scrap shear with automatic feeding and removal of the feeding conveyor 4 x 4 stack locations by stacking points accessories spare parts package 2x scrap bucket
