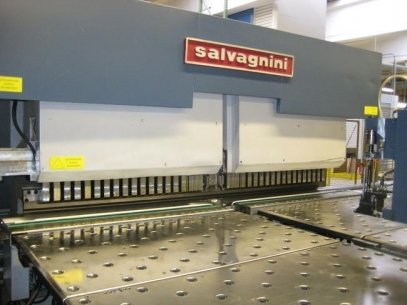

Make Salvagnini
Type P4 2512
New in 12 / 1998
Machine hours 22.000 h

With the following configuration:
TL 27155C. CRPD Shear table
CSR25.H80.OPA Loading and unloading Roboter
P4-2512.LS.LI Bending machine
VFAST Modem
MICROMach Control- and administrative system
ALA30/600/130 Programmable blank holder
CLA Device for bending beam
R81 Water- and Chiller unit
JOBP4.DIARIO Software

Special options RC tapered Rotator
Discharching station - 2 Pallet places
Discharching station – 1 conveyor band

Technical dates
Max. bending length 2.500 mm
Max. bending high 127 mm
Max. board strength 400 N/mm² 2,0 mm
Max. bending angle (werkzeugabhaengig) +/- 135 °
Max. Diagonal released circuit board 2.700 mm
Max. board length 2.695 mm
Max. board width 1.500 mm
Max. recess area on the long side 280 mm

Working height 1.090 mm

Air consumption 6 bar Ca. 2 l/min
Cooling water consumption Ca. 2,0 m³/h
Cooling water inlet temperature Max. 20°C

Floor space required 8.435 mm x 7.070 mm
hith 2.600 mm

Working characteristics
Max. length of the released board at the entry 2.700 mm
Max. width of the released board at the entry 1.500 mm
Max. rotary diagonal of the released board 2.700 mm
Max. bending length 2.500 mm
Max. edge area above the desk 127 mm
Max. thickness, tensile strength 410 N/mm² 2,0 mm
Max. thickness, tensile strength 600 N/mm² 1,5 mm
Max. thickness, tensile strength 265 N/mm² 0,50 mm
Min. thickness 0,50 mm
Height of the ground up to the beginning of the in the pile up area 200 mm
Height of the ground up to the end of the pile in the pile up area 1.500 mm
Weight of the panel 40 kg

-
