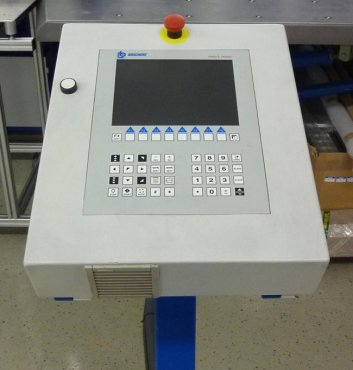

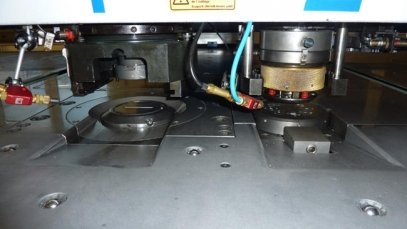

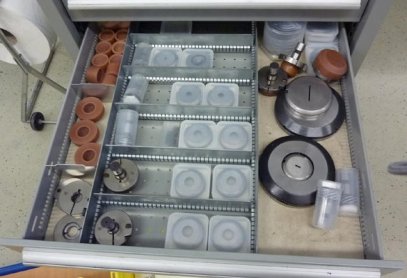

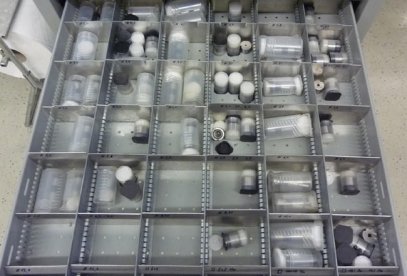

Make: Boschert Type: Twin rotation 1250 x 2500 mm Year: 2001 / Rebuilt in work: 2009 Punching power: 2 x 280 kN (28 tons) Stanzarmausladung: 1250 mm Max cutting diameter: 105 mm Maximum height: 90 mm up and down continuously programmable in the controller. Thickness range: 4 mm stainless steel, 6 mm St. 45, 8 mm aluminum adjustment of the angle: stepless drive the rotation axis: by AC servo motors Matrizenlagerung: hydrostatic, thus completely wear-Values in parentheses are data with faster hydraulic strokes: with sheet thickness 2 mm - travel 0 , 1 mm, 250 (385) strokes per minute - 2.0 mm stroke, 220 (275) strokes per minute - 25.0 mm stroke, 130 (175) strokes per minute Power: 25 kVA Machine weight: 14000 kg Equipment: - 8 times Revotoolantrieb - rotary drive tool holders up and down continuously rotate 360 degrees. - Quick Hydraulics - Stanzbutzenabsaugvorrichtung - ball rolls in the machine table - CNC programming system / CAD system Metalix including import function for dxf and dwg files. - Automatic Werkzeugsprühvorrichtung - Network connection - Tool and Accessory Kit All information without guarantee. The machine is in very good condition. A demonstration is possible at any time in our exhibition hall.
