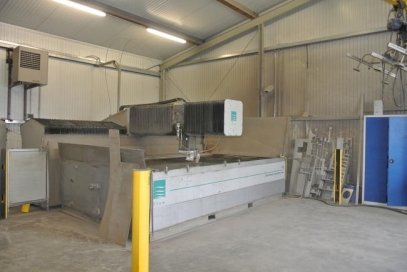

Workspace or cutting area: 3600 x 1800 mm Material support area: 4100 x 2100 mm Z - axis: 200 mm workpiece height max. 175 mm Table height: 890 mm System weight: X - axis: 4840 mm Y - axis: 4440 mm Z - axis: 2270 mm footprint (including safety equipment) X - direction: 5900 mm Y - direction: 6700 mm Z - direction with HD piping : 3600 mm Linear positioning accuracy: X + Y + / - 0.15 Repeatability: X + Y + / - 0.05 Fast speed: 12.500 mm min /. Cutting speed: up to 7600 mm / min. Catcher tank: stainless steel water level control Prepared for Water Veyor Entschlammungsanlage HyPlex high pressure pump 37 KW, 3800 bar, 4.7 liters a minute light barrier sedimentation. 1 x PC control software Flowmaster in 2 x license flow to the nest for external PC Version 6.0 Ultra Pierce, height sensor, abrasive tank, clean water conversion kit. Machine has 6,500 hours of operation.

-
