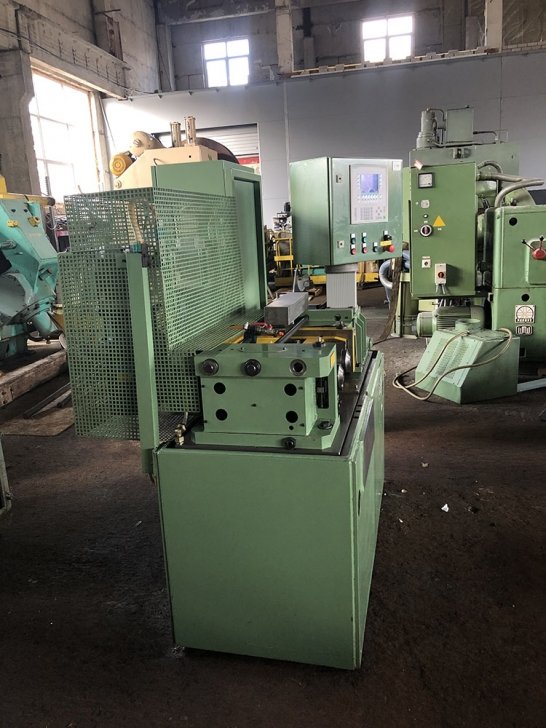

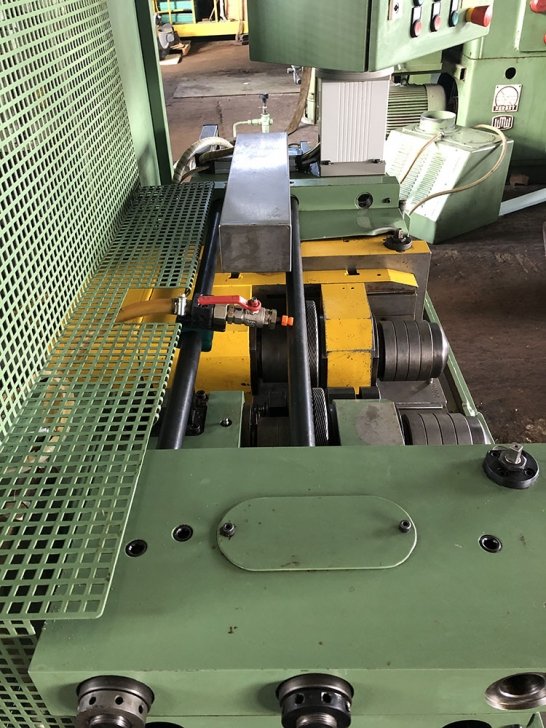

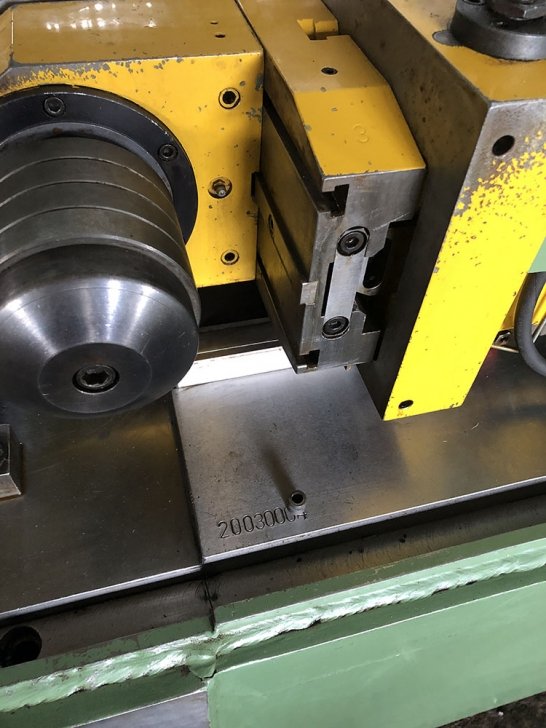

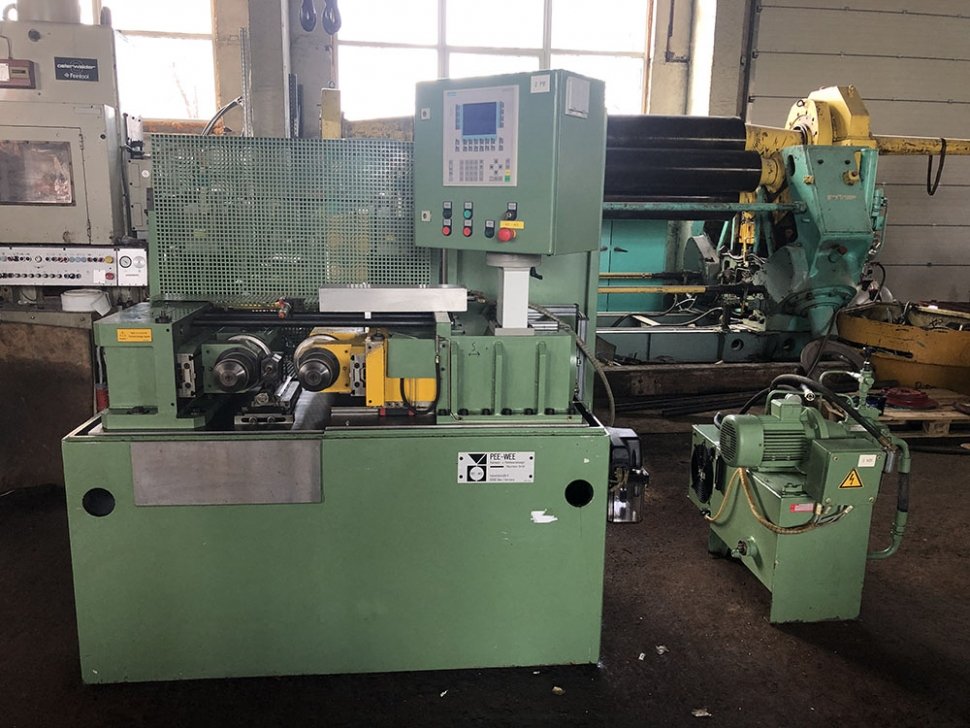

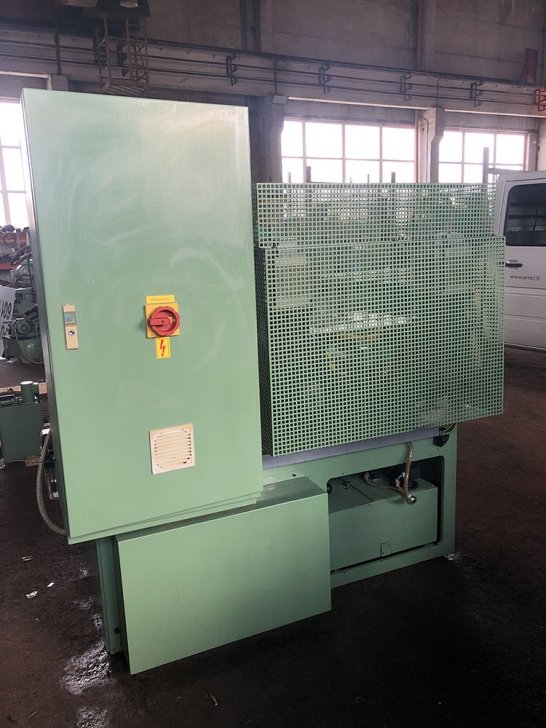

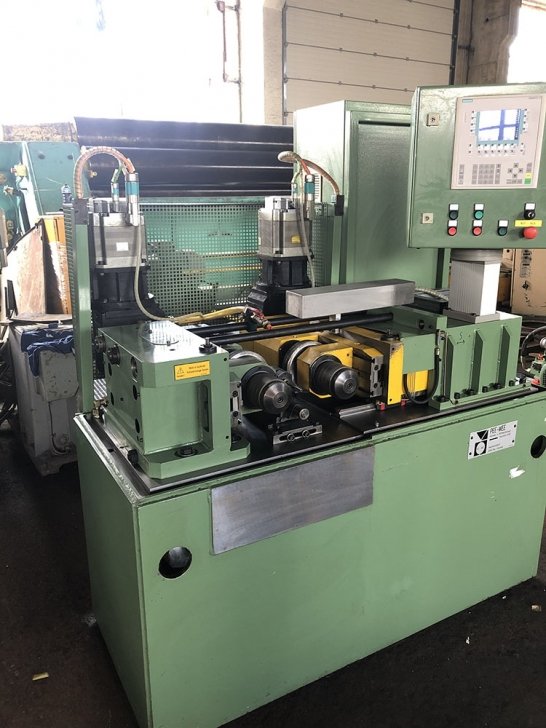

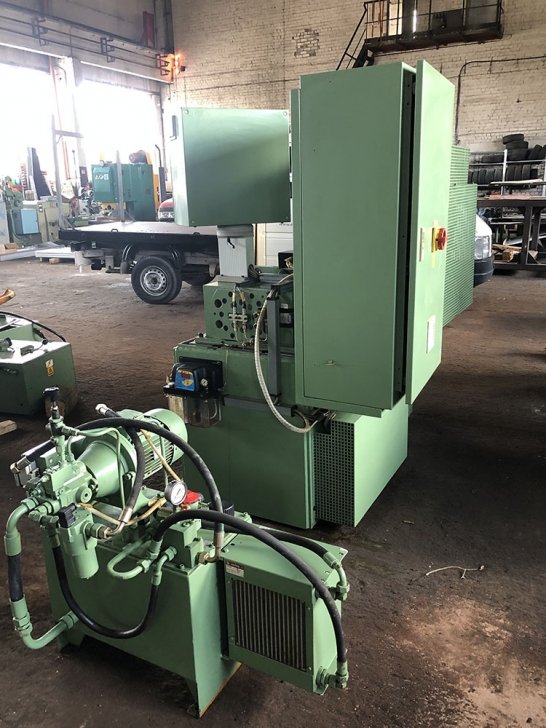

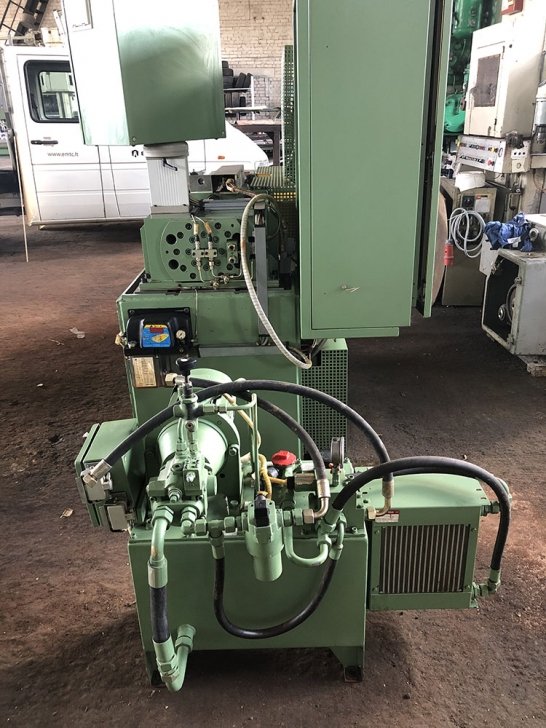

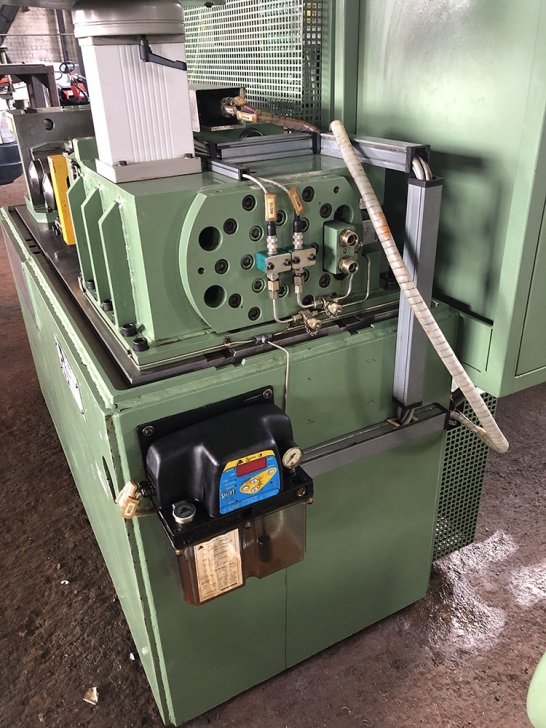

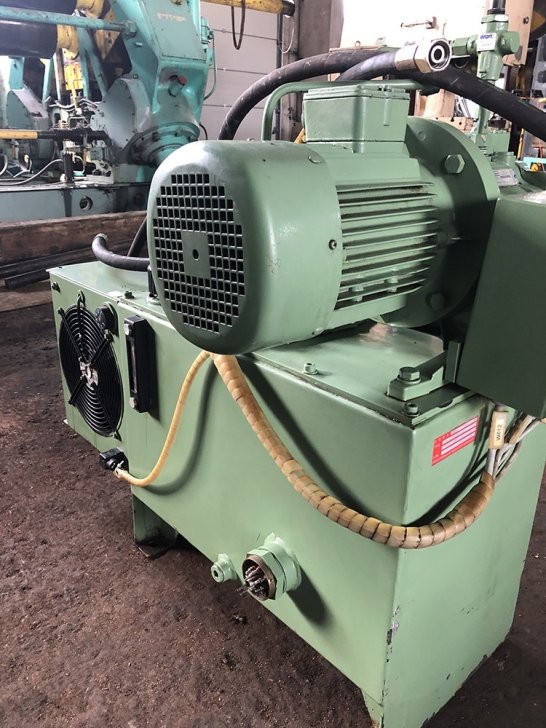

Thread rolling machine PEE-WEE Type P20 CNC made in 2004 in Germany.
Specifications:

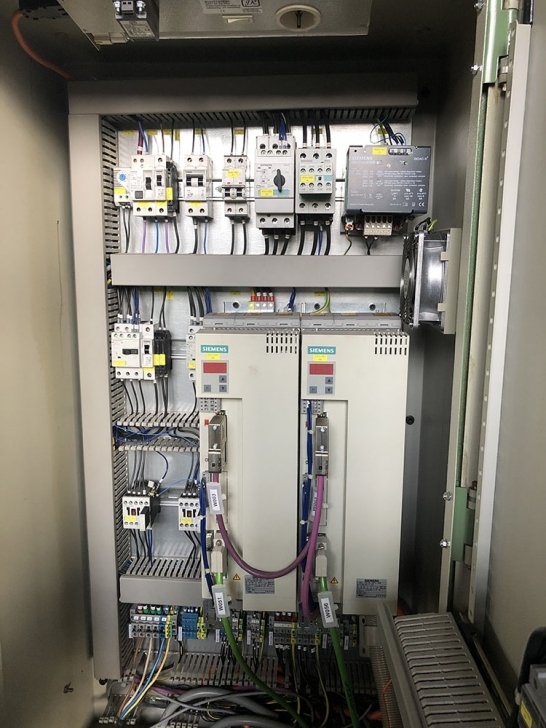

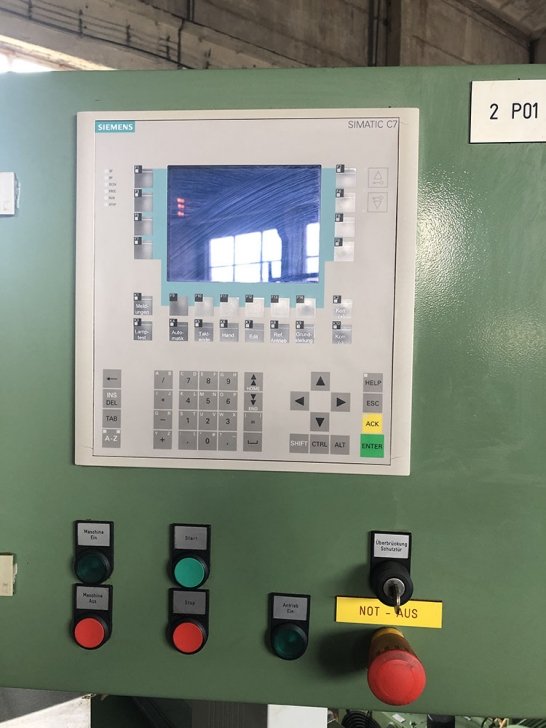

CNC Control: SIEMENS SIMATIC C7
Forming force: 10-200 kN

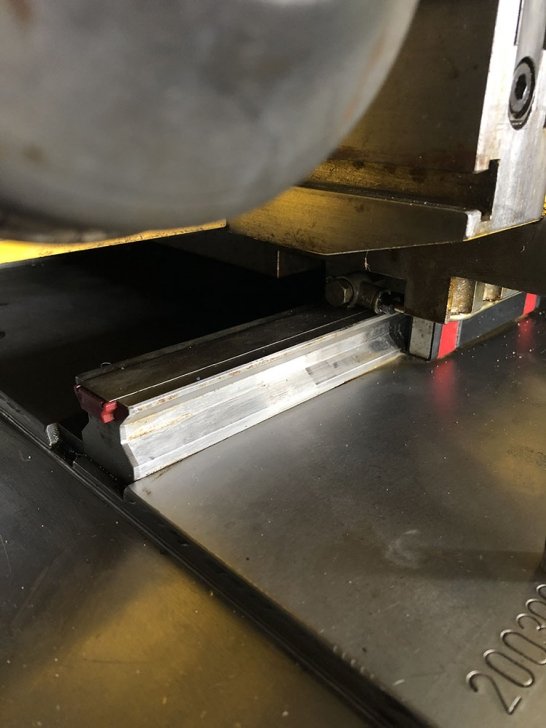

Support length: 180 mm
Work-piece diameter:
-Min.: 4 mm
-Max.: 50 mm
Roll work-piece diameter:
-Min.: 5 mm
-Max.: 105 mm
Roll pressure (stepless adjustment): 0-200 kN
Feed (stepless adjustment): 0-50 mm/s
Roll time per minute: 0-86
Roll spindle diameter: 69,85 mm

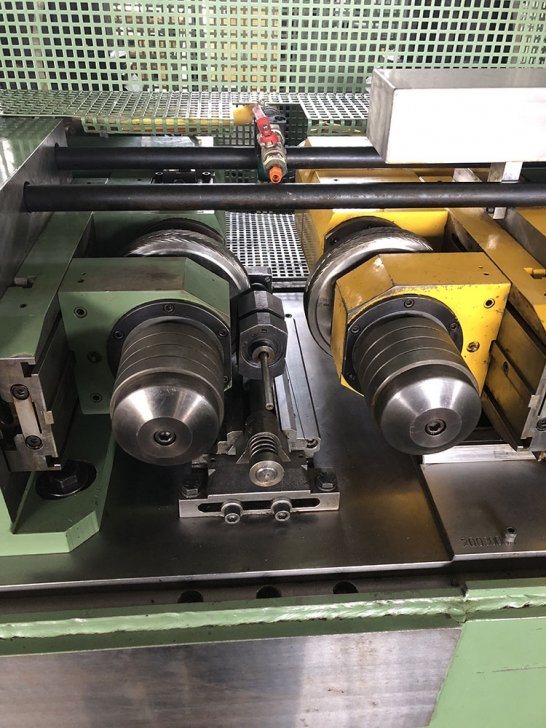

Distance between roll spindles:
-Min.: 125 mm
-Max.: 255 mm
Acceptance length of spindles: 160 mm
Stroke of roll spindle carriage: 130 mm

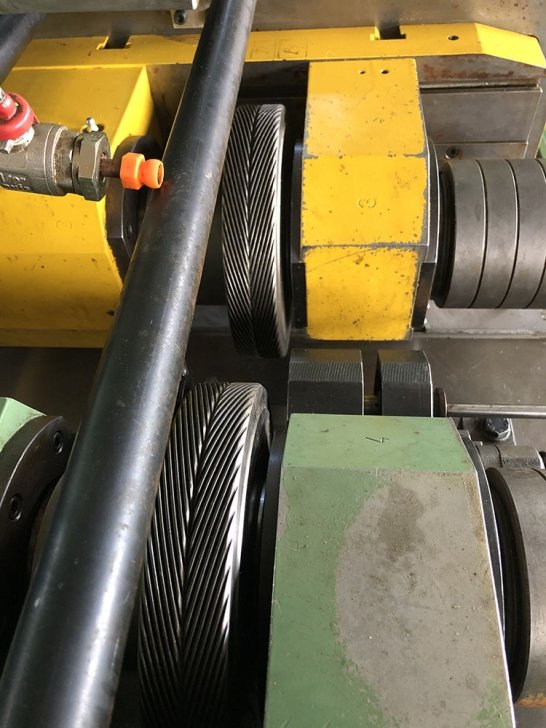

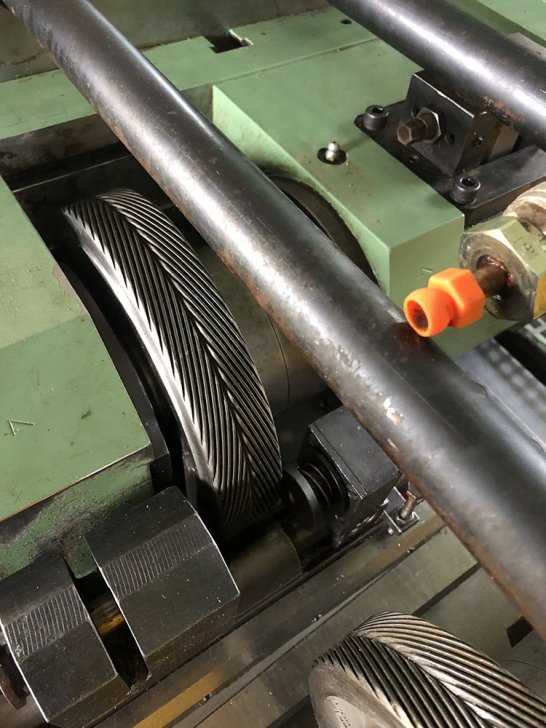

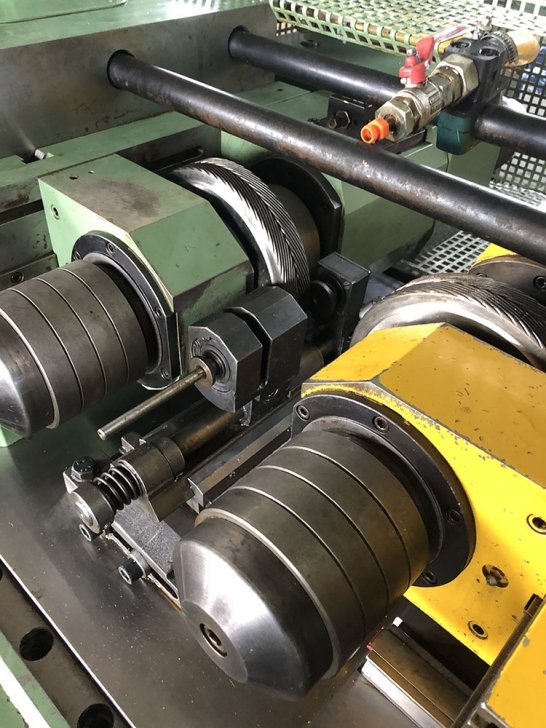

Roll tool diameter:
-Min.: 130 mm
-Max.: 200 mm
Machine bed height: 800 mm
Height of roll spindle over machine bed: 160 mm

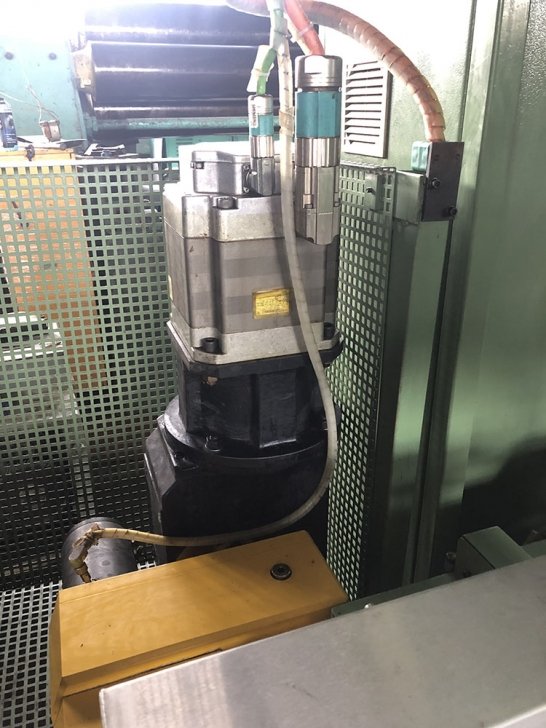

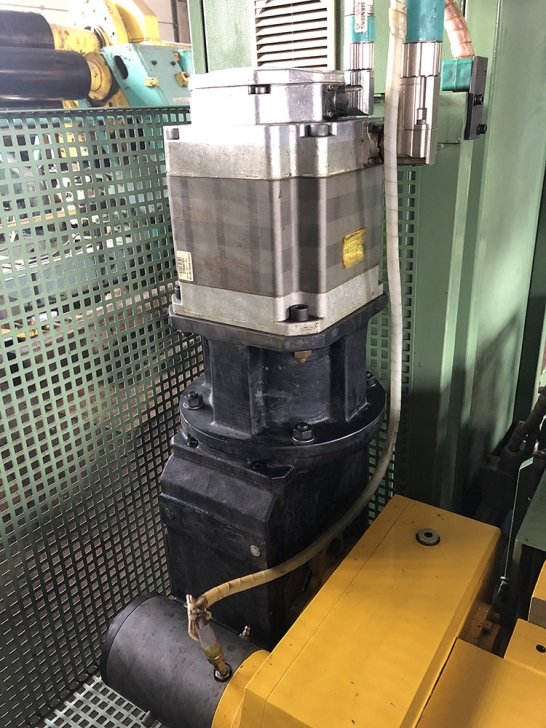

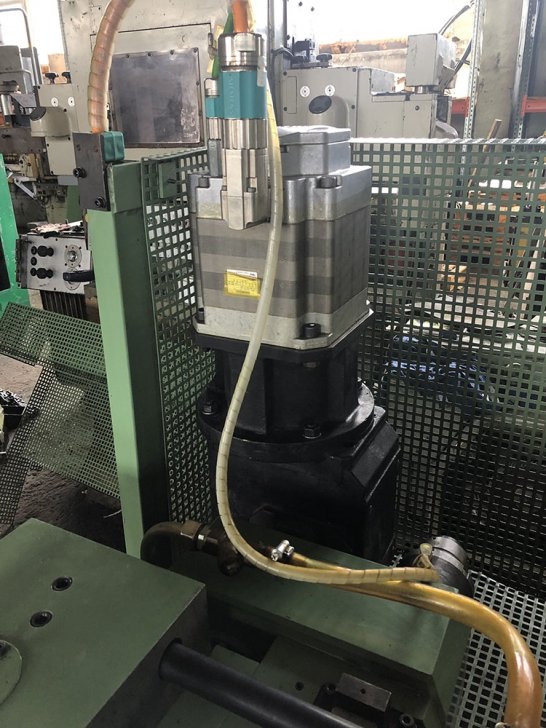

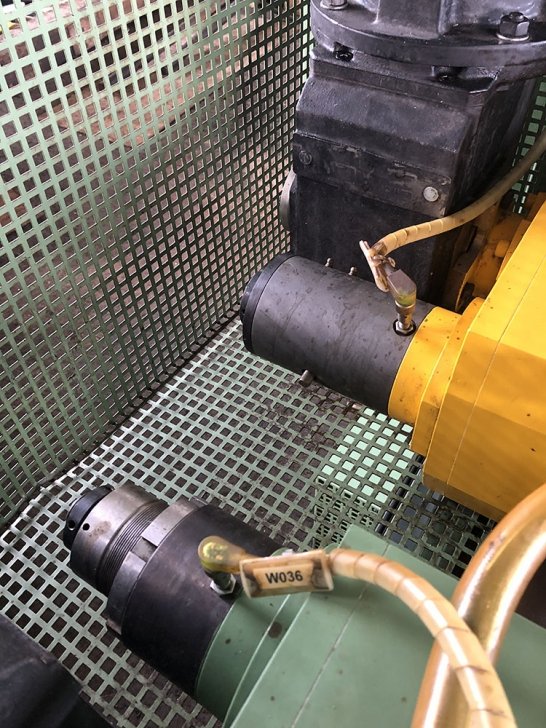

Roll spindle drive motor: 3000-5000 rpm
Voltage: 400 V, 50 Hz
Machine height: 1600 mm
