maximum weight of workpiece 750 kg

torque 500 Nm

swing torque 500 kg x 300 mm

pivoting angle 220°

swing time for 90° - 33 seconds

rotation speed control from 0.07 to 2 r.p.min

diameter of face plate 600 mm with three clamping slots

thickness of face plate 16 mm

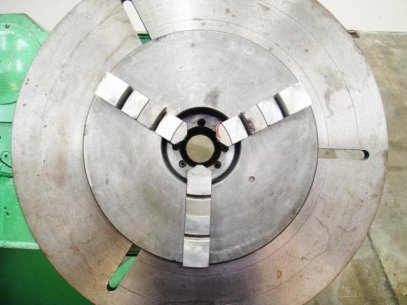

lathe chuck 320 mm with inner and outer flanges

diameter of quill shaft 60 mm

diameter of spigot 64 mm

working height from 715 to 975 mm

space required length - 1,600 x width - 1,320 x height -
1,275 mm

weight approx. 325 kg

*- good condition - rarely used - *

-
