Description:

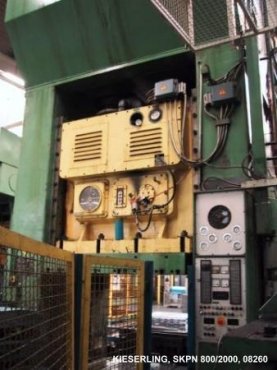

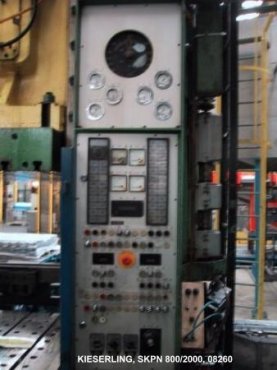

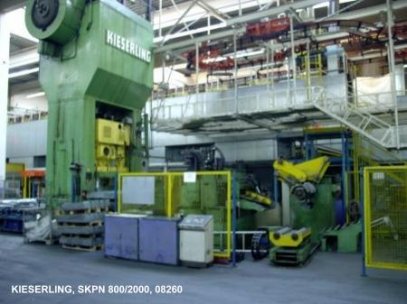

Stamping line make KIESERLING, SKPN 800/2000
Specifications:
YOM approx. 70, cap. 800 t, distance between rams 2000 mm, distance between guide

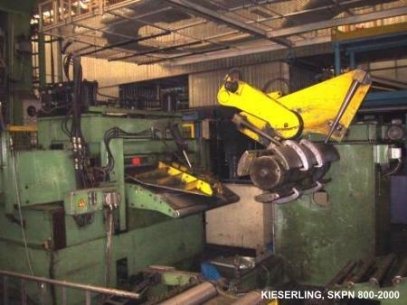

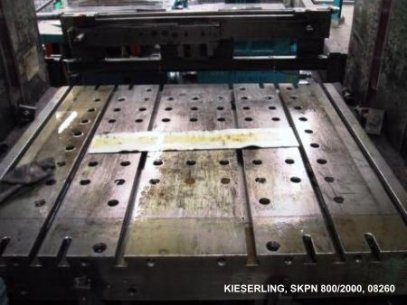

ways 1830 mm, stroke 600 mm, min./max. distance between table and ram 400/800 mm, ram adjustment 400 mm, ram dimension 1800 x 1400 mm, thickness ram plate 225 mm, strokes/min. 14 – 20, max. cap. of ram cushion 32 t, table dimension 1800 x 1400 mm, thickness table plate 225 mm, main motor 105 kw, ram adjustment 7,5 kw, cushion adjustment 5,5 kw, equipped with decoiler 10 t,combined straightening-
and feed device, width 300 – 1300 mm, thickness 0,8 – 6 mm
Dimensions:
aprox. 3,20 x 1,60 x 9,20 m
Weight:
approx. 136 t
