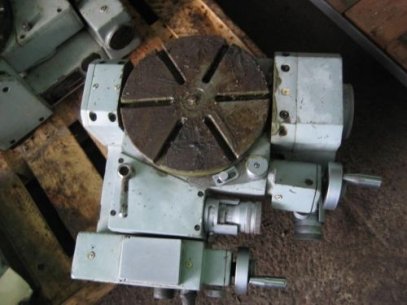

Table model 7400-0263 for the coordinate borring machinery.
Specifications:
Table diameter: 250 mm
Radial gash width: 6 mm
Gash width according to GOST 1574-75: 12H9 mm
Max angle of turning of the table: 360 degree
Max flexure of the table: 90 degree
Distance between table base and table axis (when flexure of the table is 90 degree): 130 mm
Max boring diamter: 6 mm
Max workpiece weight: 20 kg
