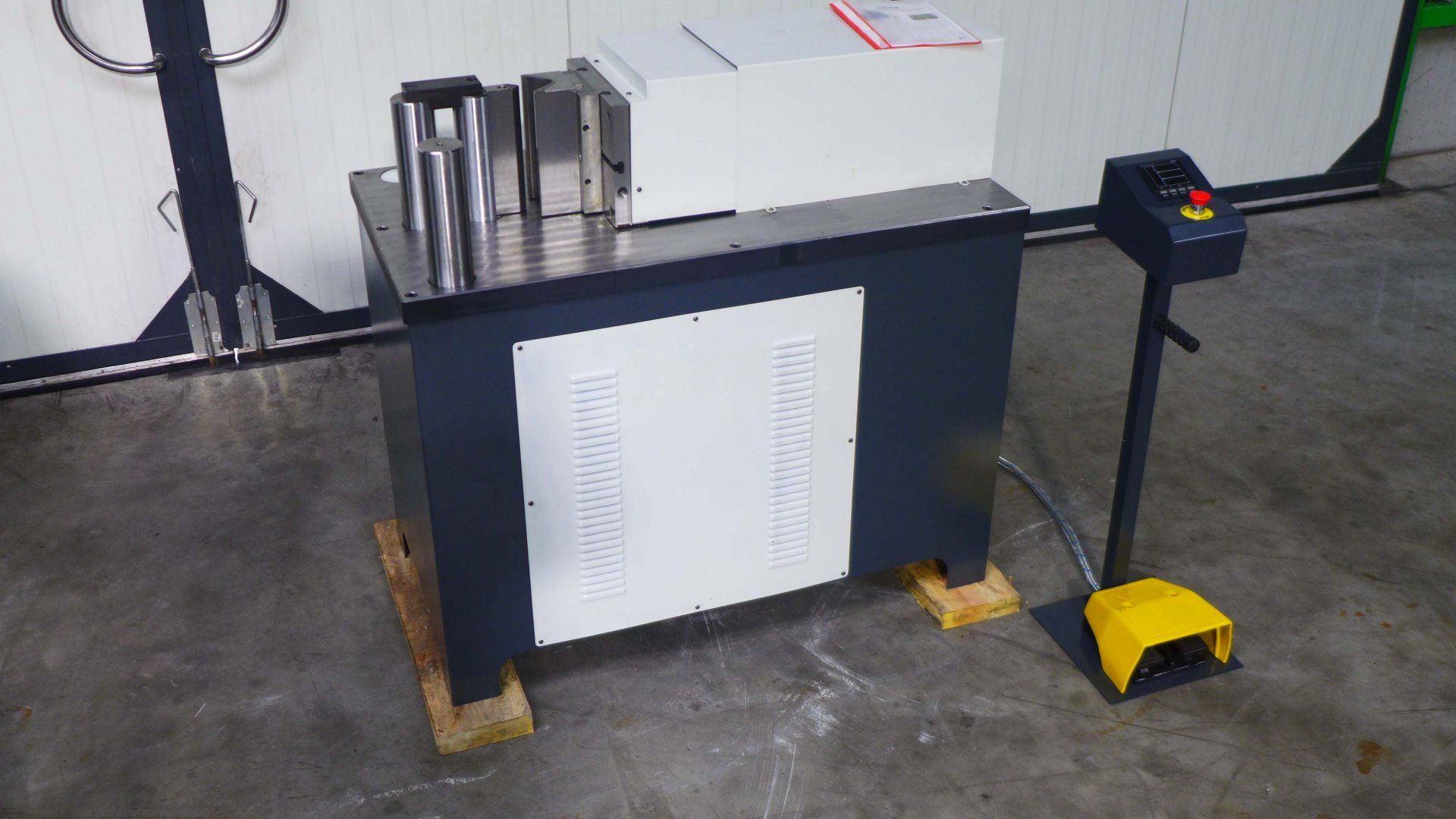

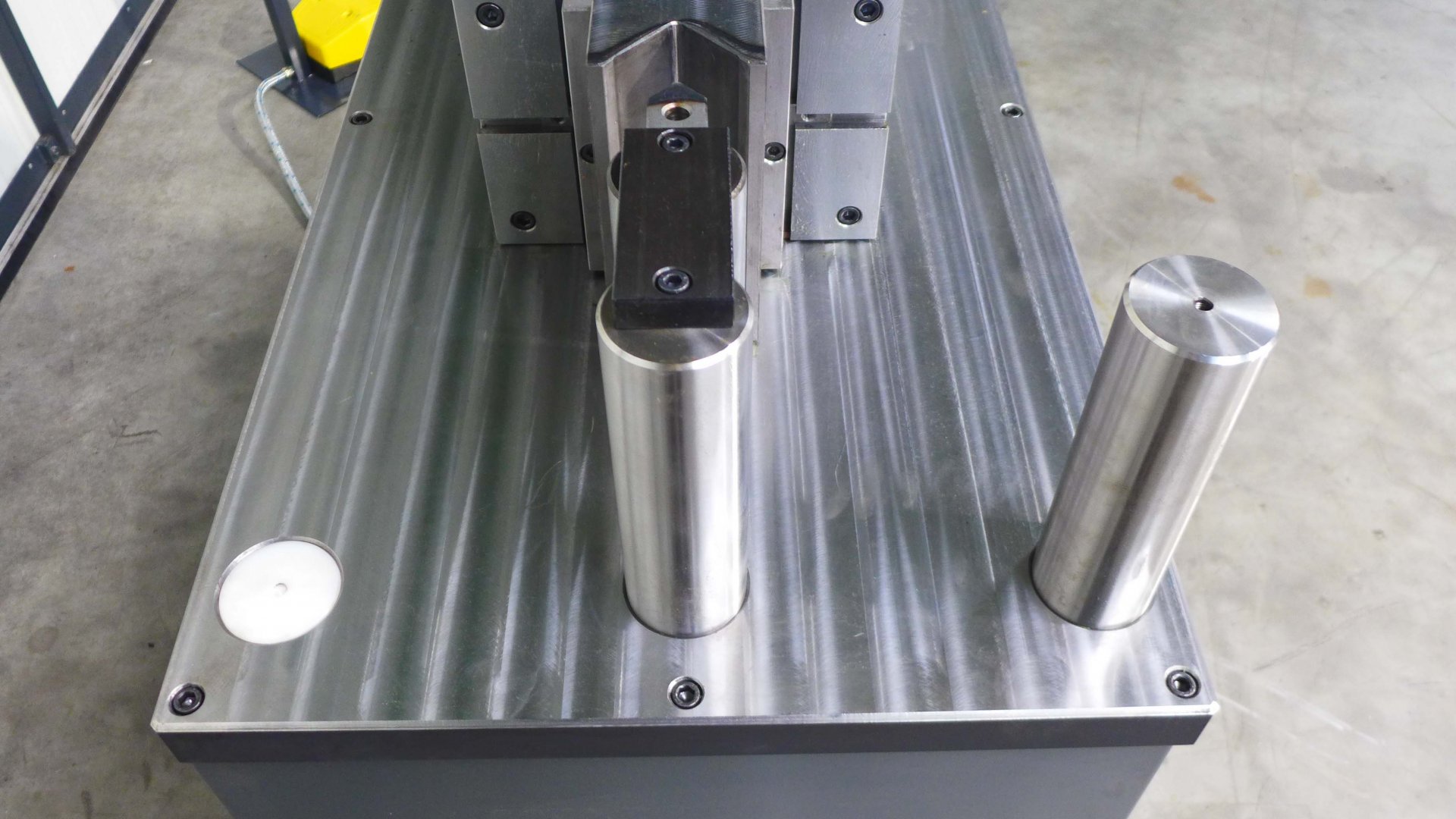

Horizontal bending machine
ZOP BEND - P 30

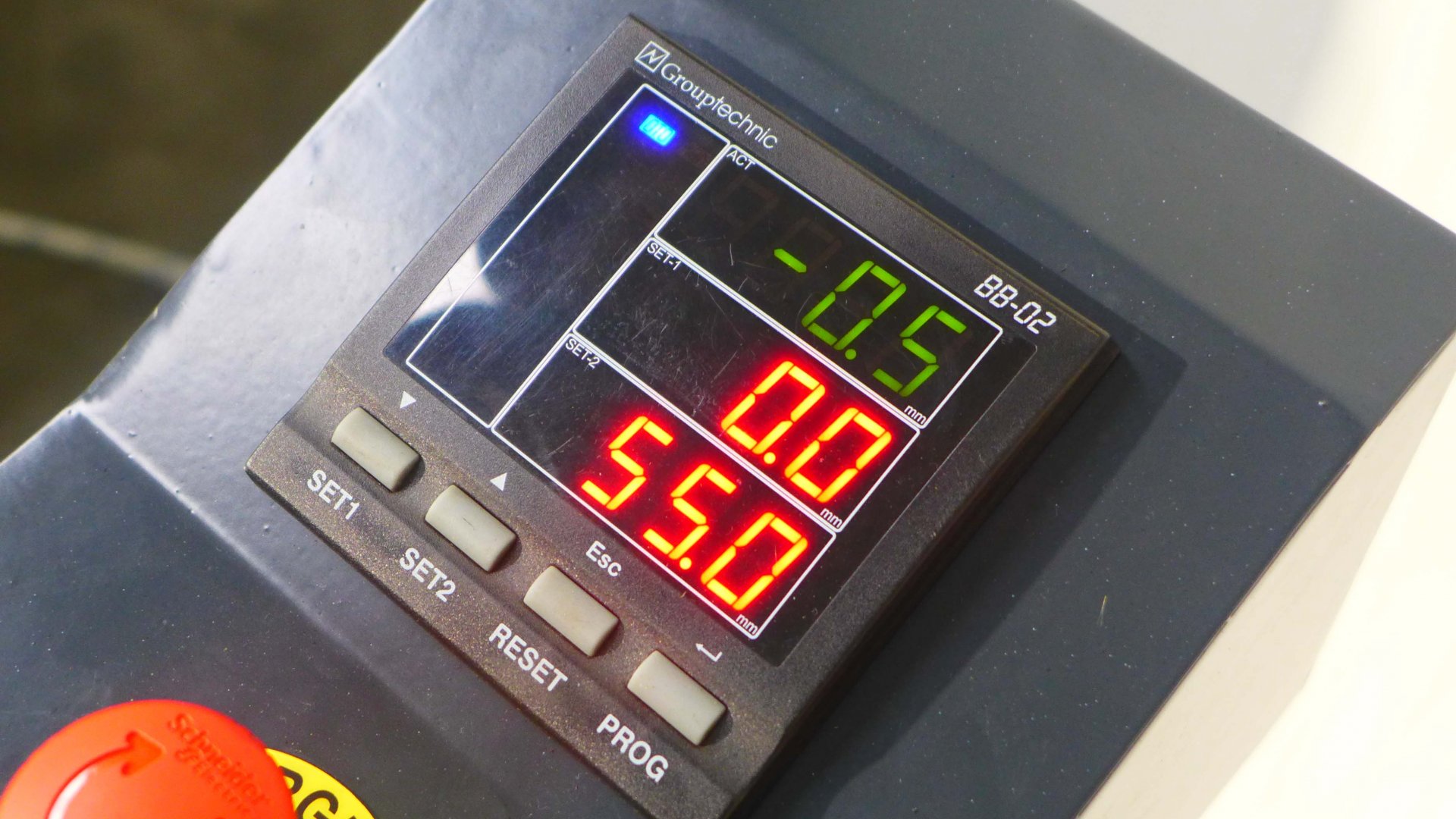

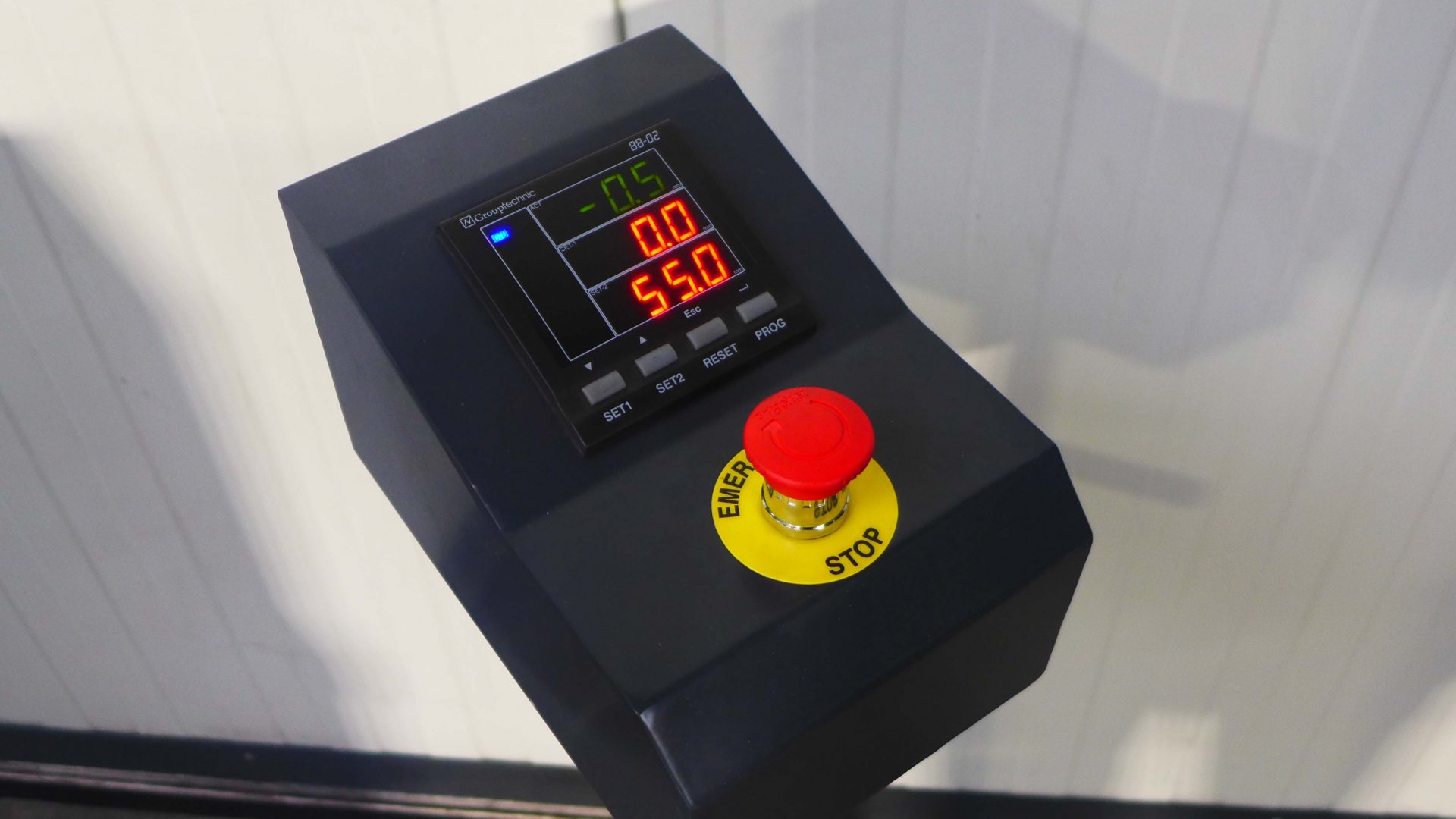

Adjustable stroke with digital read out positioning display
Variabel instelbare druk

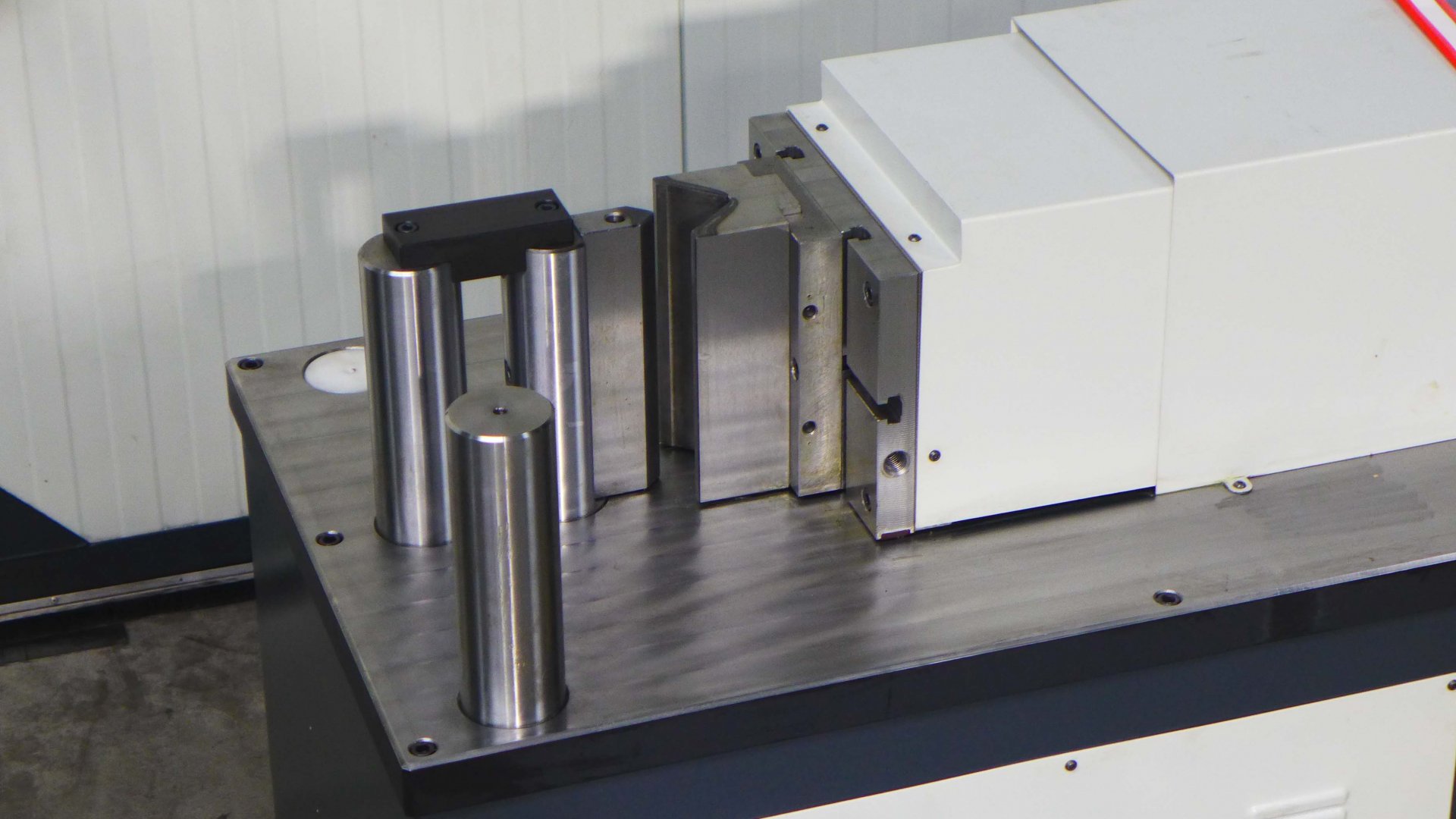

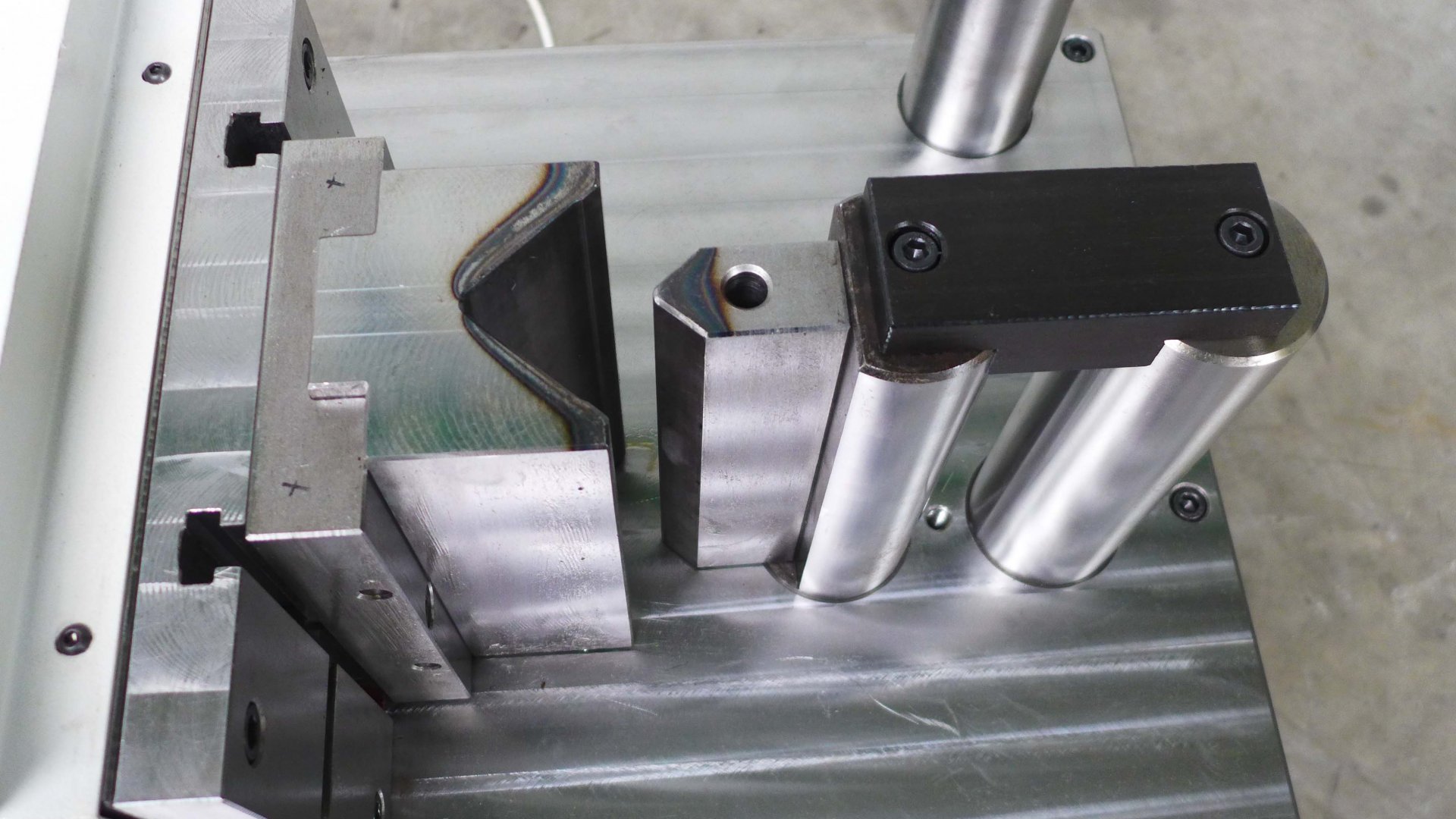

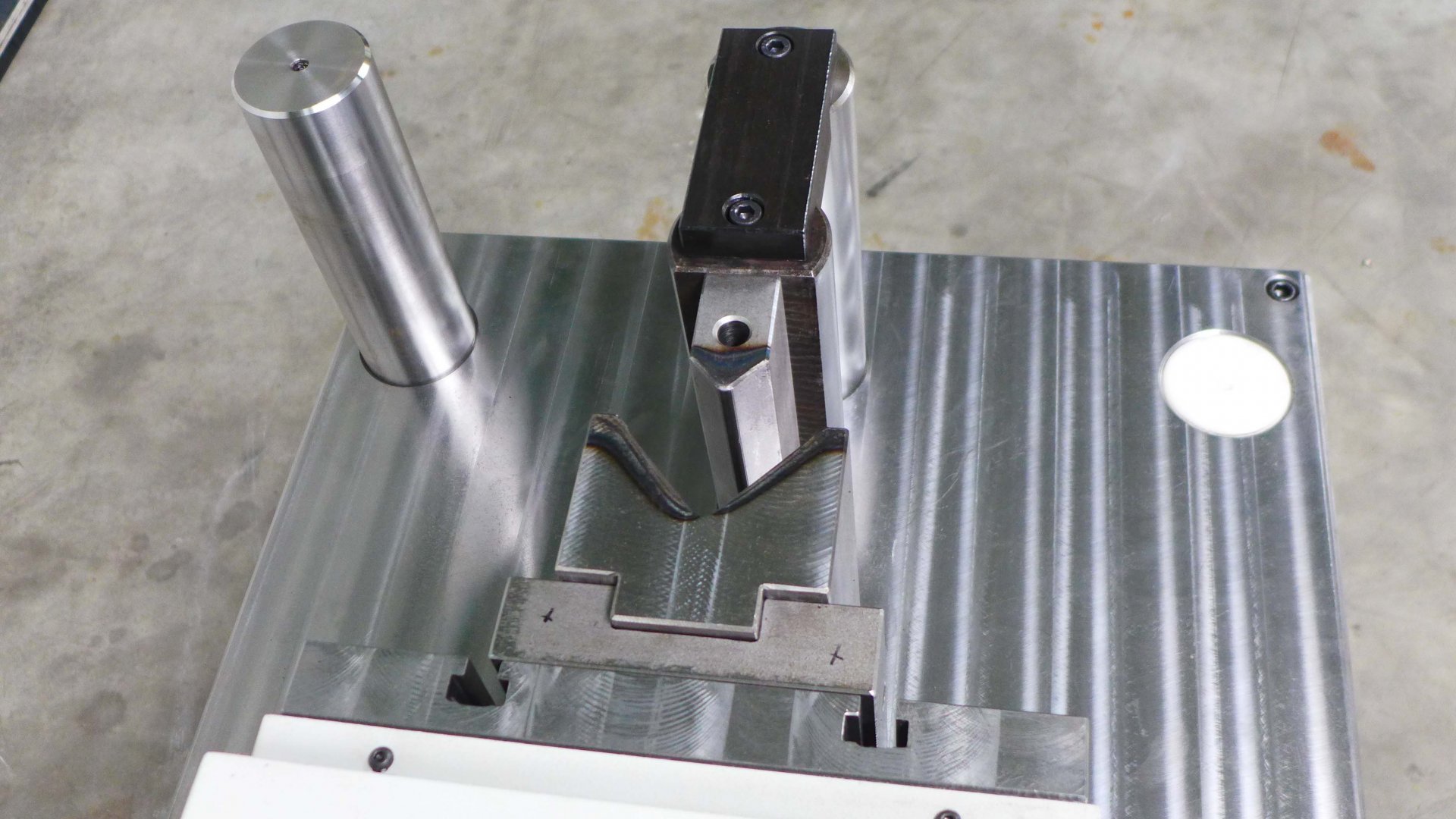

Snel wissel gereedschap systeem
Table Length: 1250mm
Table Width: 660mm
Max. pressing force: 30 Ton
Beam stroke: 235mm
max. work piece height:250mm
Stroke adjustable: 0 - 235mm
Working speed: 10000mm/min.
Return speed: 20000mm/min.
Power: 3kW
Capacity flatt: 200 x 24mm x mm
Capacity Tube: 60 x 4Ø x mm
Capacity bar: 40 x 40mm
Length: 1250mm
Width: 700mm
Height: 1200mm
Weight: 1050kg
