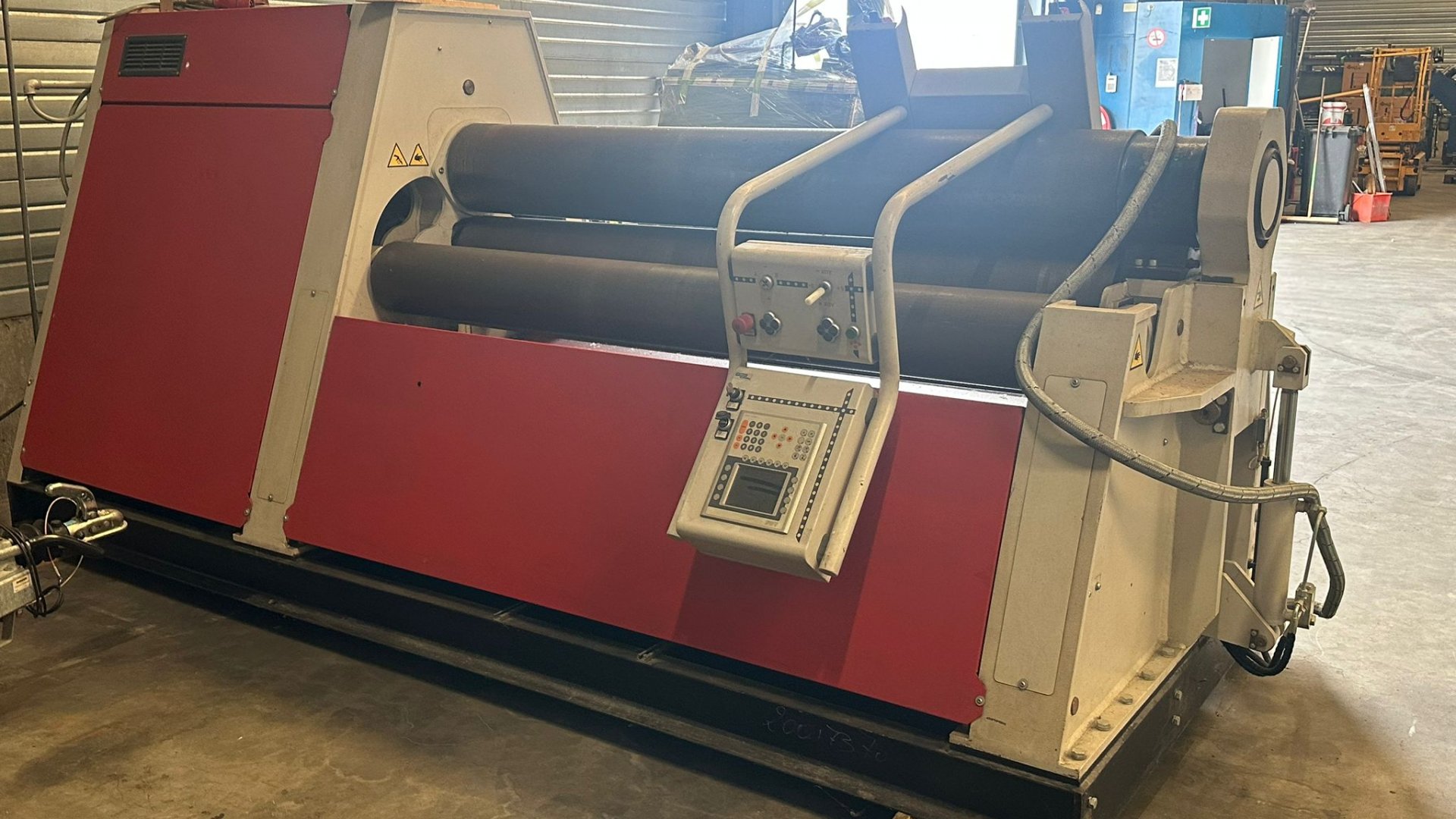

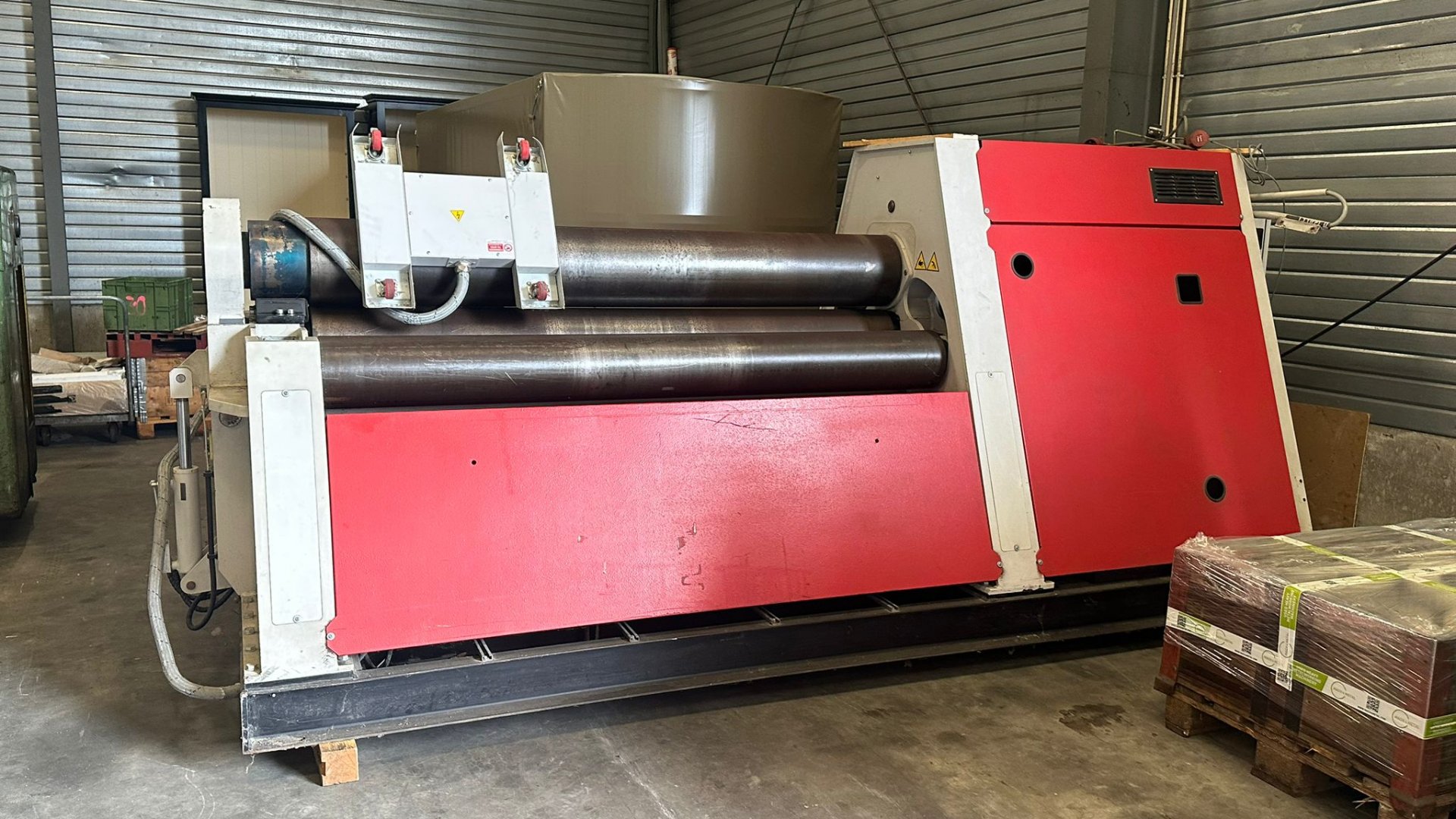

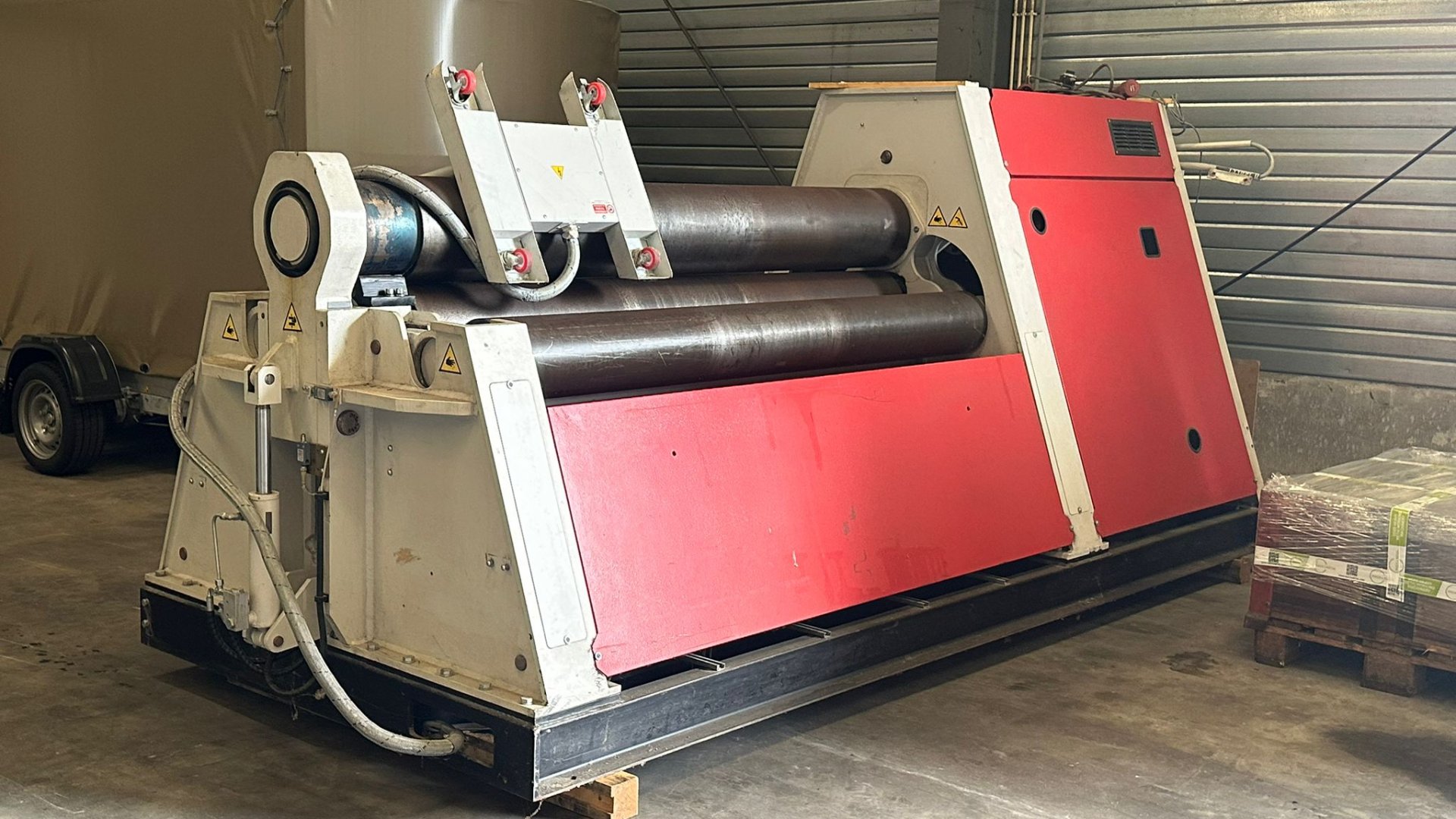

4 roll plate bender

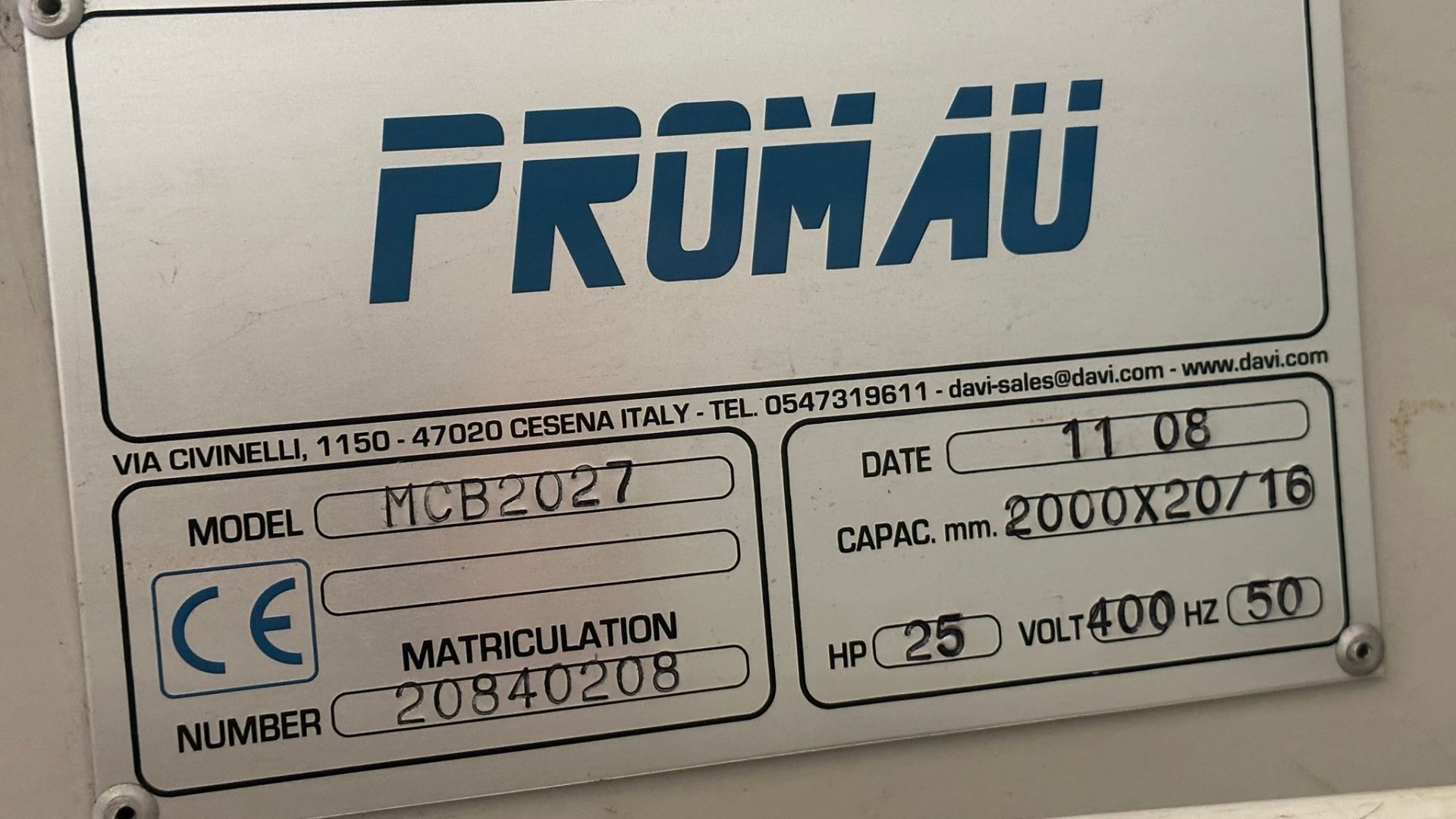

Davi Promau - MCB 2027
Rolling width: 2000mm
Rolling thickness 3x toproll Ø:18mm
Rolling thickness 5x toproll Ø:20mm
Rolling thickness prebending: 16mm
Top Roll Ø: 270mm
Bottom Roll Ø: 250mm
Side roll Ø: 250mm
Number of rolls: 4
Rolling speed: 0 - 5
Adjustiment lower roll: 0 - 200mm/min.
Adjustment side rolls: 0 - 200mm/min.
Power: 20kW
Length: 4000mm
Width: 2080mm
Height: 1700mm
Weight: 9500kg
Specifications:
4 roll plate bender
Davi Promau - MCB 2027
Rolling width: 2000mm
Rolling thickness 3x toproll Ø:18mm
Rolling thickness 5x toproll Ø:20mm
Rolling thickness prebending: 16mm
Top Roll Ø: 270mm
Bottom Roll Ø: 250mm
Side roll Ø: 250mm
Number of rolls: 4
Rolling speed: 0 - 5
Adjustiment lower roll: 0 - 200mm/min.
Adjustment side rolls: 0 - 200mm/min.
Power: 20kW
Length: 4000mm
Width: 2080mm
Height: 1700mm
Weight: 9500kg
