Criterion (3) Module Tube Fab Work Cell, PLC Control System, Bend Station, Drilling Station, Piercing Station, #1556
Specifications:

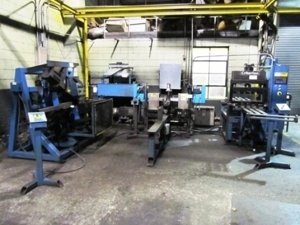

#1556 Criterion (3) Module Tube Fabrication Work Cell
Model: Bend Cell
Mfg: 7/2004
This cell is designed to bend, pierce and drill square tube used for roll cages in the agricultural, construction and recreational vehicle industries.

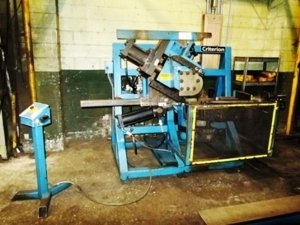

1. Compression Bend Station
Tooling for 2" x 3" and 2" x 4" x 3/16" Wall Tube
Bend Radius 5"
Criterion Hydraulic Square Tube Compression Bender & Former with 4” Capacity
Work Holding Fixture

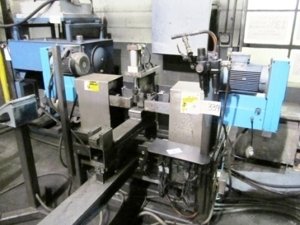

2. Drilling Station
(2) Drill Heads
Part Clamping System
Coolant System
Suhnrr Monomaster Double-End Horizontal Drilling Machine
Hydraulic Clamping, Type BEM20-125, sn: 891

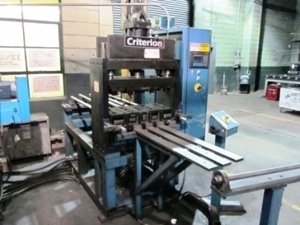

3. Piercing Station
(5) Station Mandrel Type Press
Criterion Vertical Punching Machine, 4-Post Design
12” x 28” Work Area
28” Between Housings
5 Punching Stations
A/B Panel View 550 PC Control
Equipped With:
PLC Control System; Self Contained Hydraulic Power Supply; Tooling for 2" x 3" x 3/16" and 2" x 4" x 3/16" Tube; Complete set of Drawings for entire Cell
Cell was installed in July 2004, at a cost of $280,000.00
