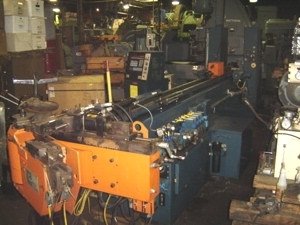

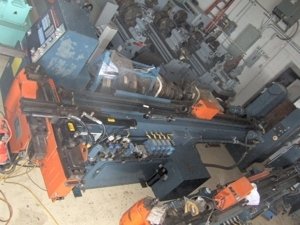

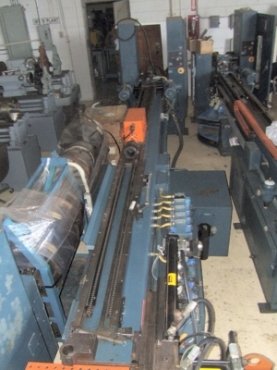

Eaton Leonard 3" CNC
Model VB300-115, S# VB300-HS-R-21-H-MT-0498, New head & hydraulics upgraded in '95, Right hand machine, Clockwise, Auto lube, Max tube length to tangent 12', Machine looks good, Low hour machine, 30hp 230/460/3ph Wired 460v, Velog control
Call Rick 651 207 8203
Specifications:
1 Used EATON LEONARD CNC "VECTORBEND" HYD. MANDREL
Model VB300-115 S/N VB300-421-HL
-----------------------------------------------------------
General Specifications:
Capacity 3" OD & .187
Maximum centerline radius 12"
Max. tube length to tangent 12'
Max. bend angle 195 degrees
Speeds: DOB Bend arm rotation 20 rpm
POB Collet rotation 30
DBB Carriage travel 1800 IPM
Distance, floor to die center 42"
Rotation Left Hand Counter Clockwise
Main Motor 30 HP.
Wired on 480/60/3Ph.
Floor space, machine 19' & 64"W.
Floor Space, machine control 30" & 30"
Est. WT. 12000 lbs.
Standard Equipment:
-Master pressure die bar
-Clamp Die Holder

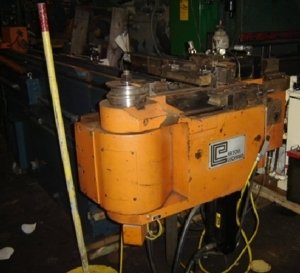

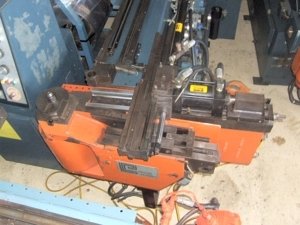

-Fully programmable planing bend head assembly
-Fully programmable hydraulic mandrel extractor
-Fully programmable pressure die assist
-Fully programmable fourth axis CLR shifter
-Pressure control of clamp, pressure die and assist
-Heat exchanger for system cooling
-AC main drive motor & Elec. Panels
Photo's on www.interplantsales.com

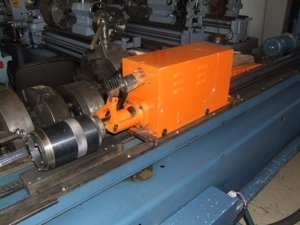

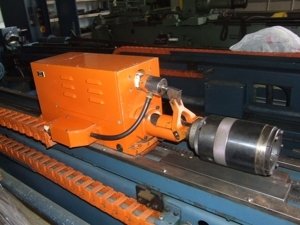

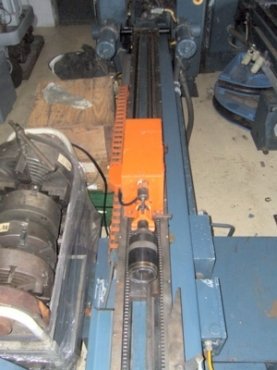

-Motorized carriage for plane of bend & distance between bend stops.
Price $42,000 or B/O
