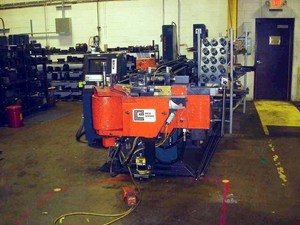

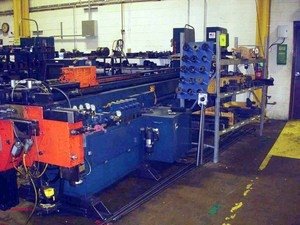

3" Eaton Leonard Model VB300HS Vectorbend High Speed Programmable Tube Bender
Specifications:
3" Eaton Leonard Model VB300HS Vectorbend High Speed Programmable Tube Bender
S/N: VB-30-HS-647-MTL-02.89 New: 1989
EQUIPPED WITH:

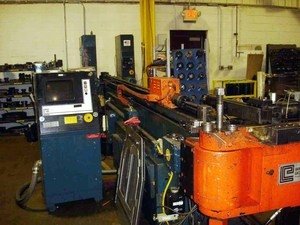

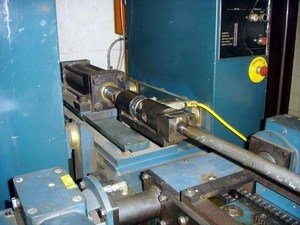

Eaton Leonard EL2000 Touch Screen Controller. Clockwise (RH) Rotation. Mandrel Extractor With Automatic Lubrication. Motorized Carriage For Plane Of Bend And Distance Between Bend Stops. Pressure & Wiper Die Holder. Pressure Die Assist.
SPECIFICATIONS:
Maximum Tube Size (OD x wall thickness) 3" x .187"
Maximum Pipe Size 2 IPS Sched 80
Maximum Centerline Radius 12"
Tube Length to Tangent, Maximum 11'3"
Bend Arm Travel, Maximum 195°
Bend Arm Speed 20 RPM
Plane Bend Speed 50 RPM
Carriage Travel Speed 1700 IPM
Main Pump Motor 30 HP
Electrics 3/60/460V
Working Height 42"
Approximate Weight 6500 lbs
