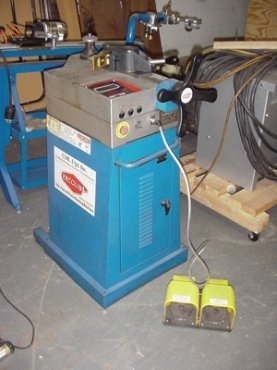

Rotary draw tube and pipe bender. Capacity 2" tube 1-1/2" pipe. Upgraded PLC control with 9 programs, new swing-away die holder, new screw, nut and foot pedal, 40mm hex drive.
Specifications:
1996 Milltronics Partner 10 Series J
Vertical Machining Center
Centurion 5 CNC Control
Specifications:
X-Axis Travel 100"
Y-Axis Travel 30"
Z-Axis Travel 24"
Table to Spindle, Min/Max 12" - 36"
Table Size 110" x 24"
Table Load Capacity 5,000 Ibs.
Spindle Taper Cat 40
Spindle Motor 20 HP
Spindle Speed 4,500 RPM
Tool Magazine Positions 20 Positions
Floor Space x Height 270" X 134" X 129"
Specifications subject to confirmation at inspection.
Equipped With:
Centurion 5 CNC Control Coolant System
Chip Guards All Available Manuals
