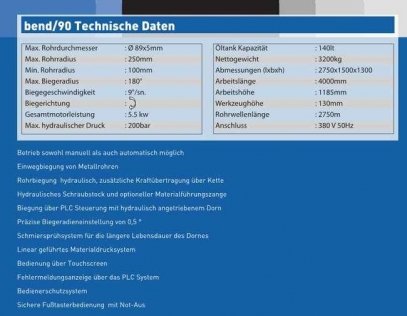

Technical Data Maximum tube diameter 89x5mm tube radius Max 250mm Min 100mm Max bending radius pipe bending radius 180 Speed 9 / sn Total motor power 5.5 kw Max pressure 200 bar hydraulic oil tank capacity 140lt net weight 3200kg Dimensions (LxWxH) 2750x1500x1300 working length 4000mm working height 1185mm Height 130mm tool length 2750m wave tube connection 380 V 50 Hz
