Large capacity high volume production with electric drive swing arm. Can be configured as a single or multi-stack cnc with carriage boost.
Specifications:

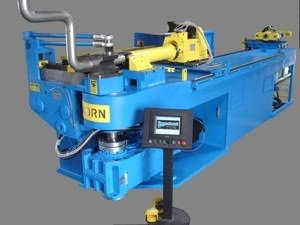

The HMT 3.0ECNC bender is a 3.0” od capacity fully equipped multi-axis machine with all of the normal accessories needed to perform tight radius mandrel bending. This versatile and powerful machine is well suited for many applications such as stainless steel exhaust systems, HVAC components, Job Shop work, Automotive, Motorcycle and Aerospace.
Features:
•Robust design with high production rates.
•Electric drive C axis with low interference
•Servo controlled linear bearing pressure
die with programmable controls.
•Servo controlled linear bearing pressure die assist with position control/following.
•Reverse acting mandrel extractor with guided support for mandrel rod.
•Hardinge quick change collet pads.
