Description:

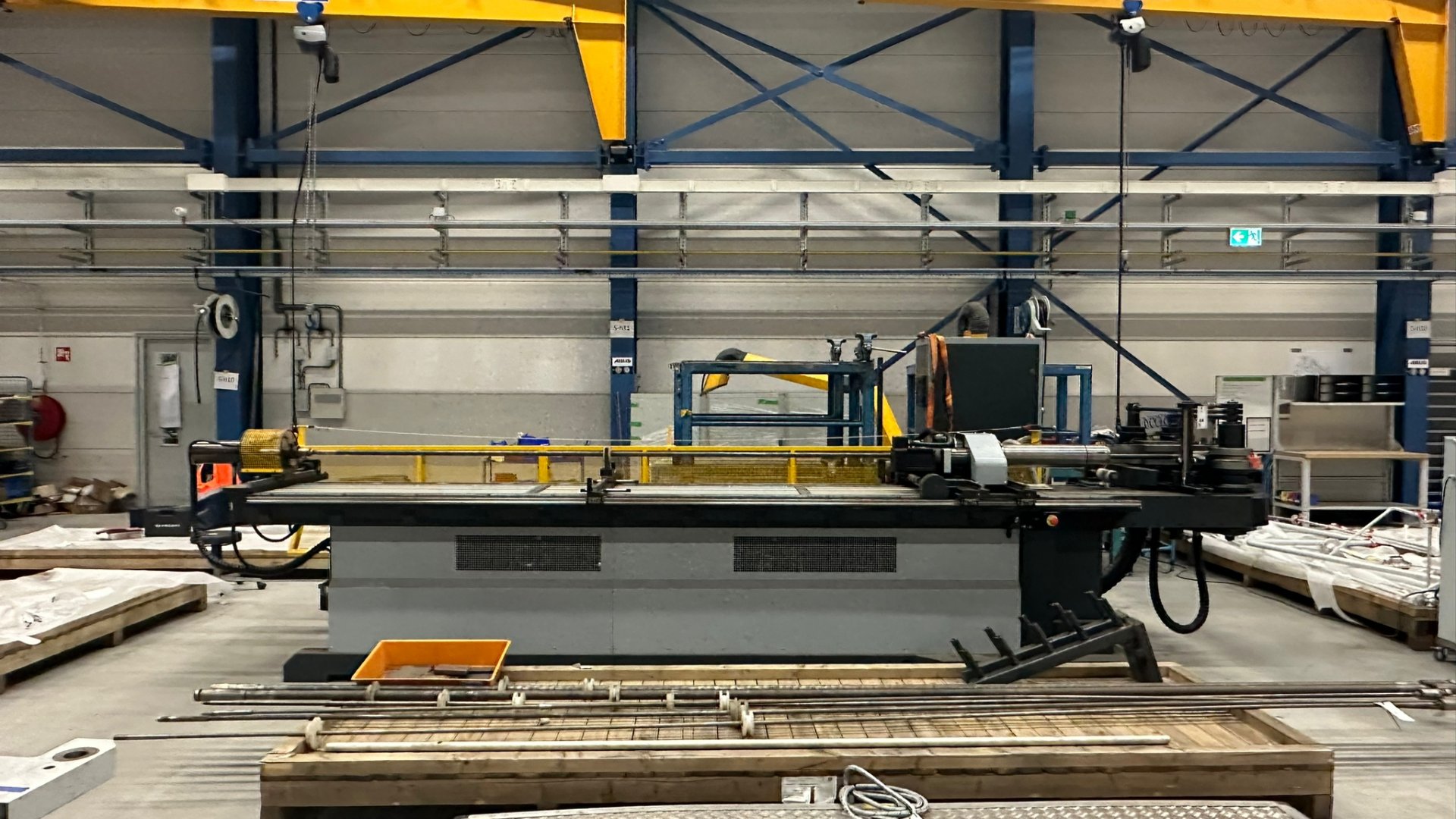

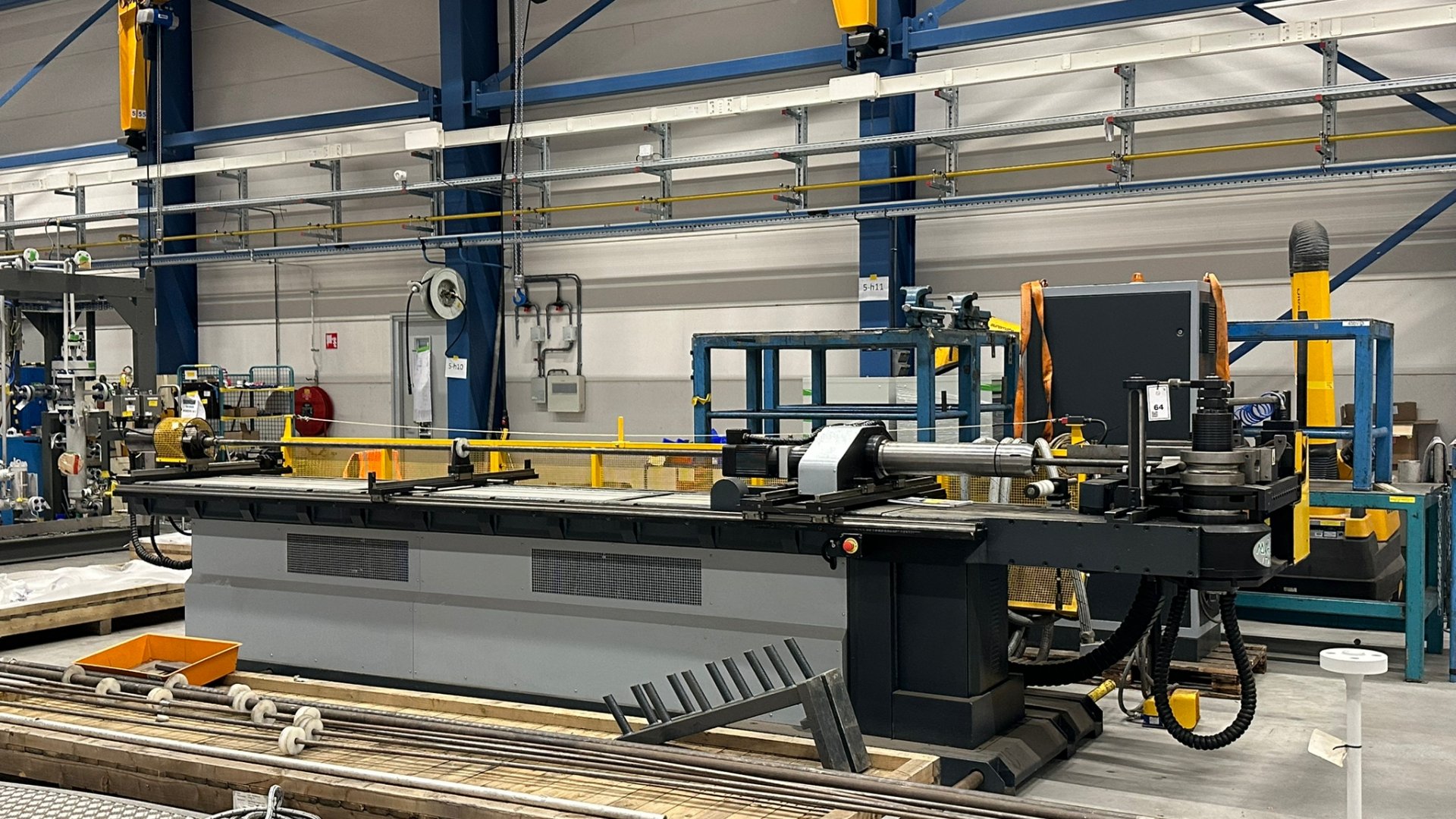

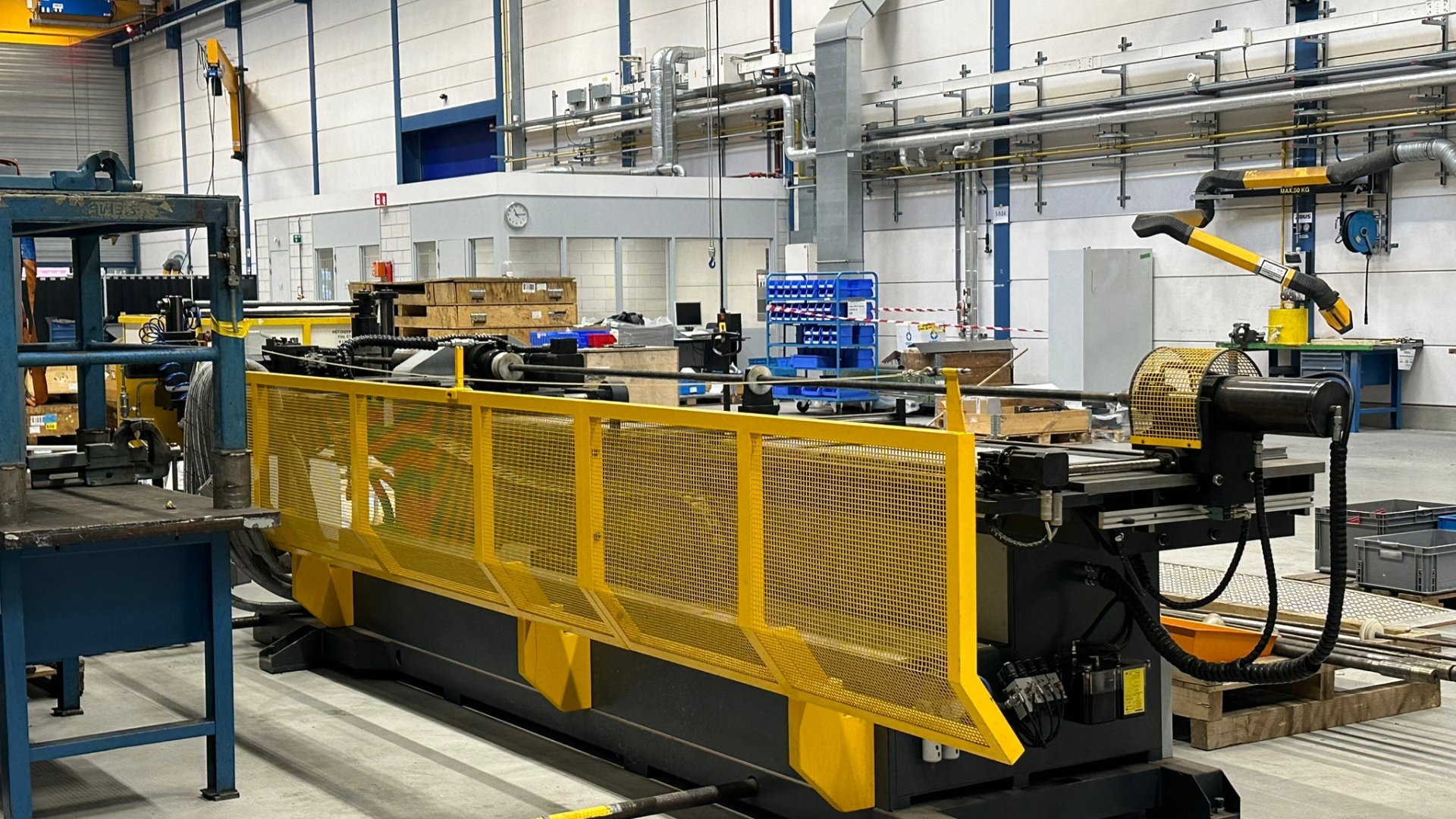

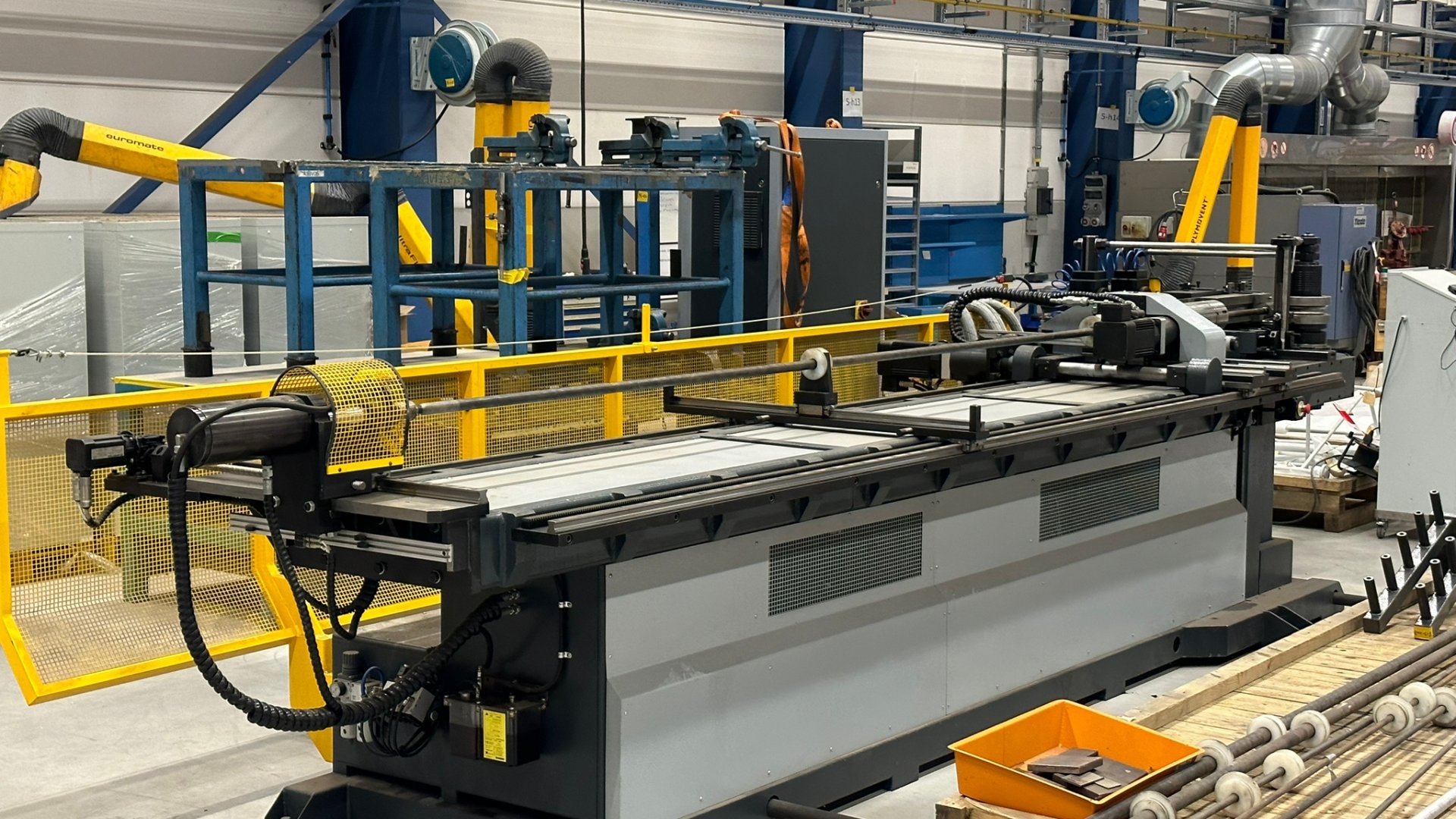

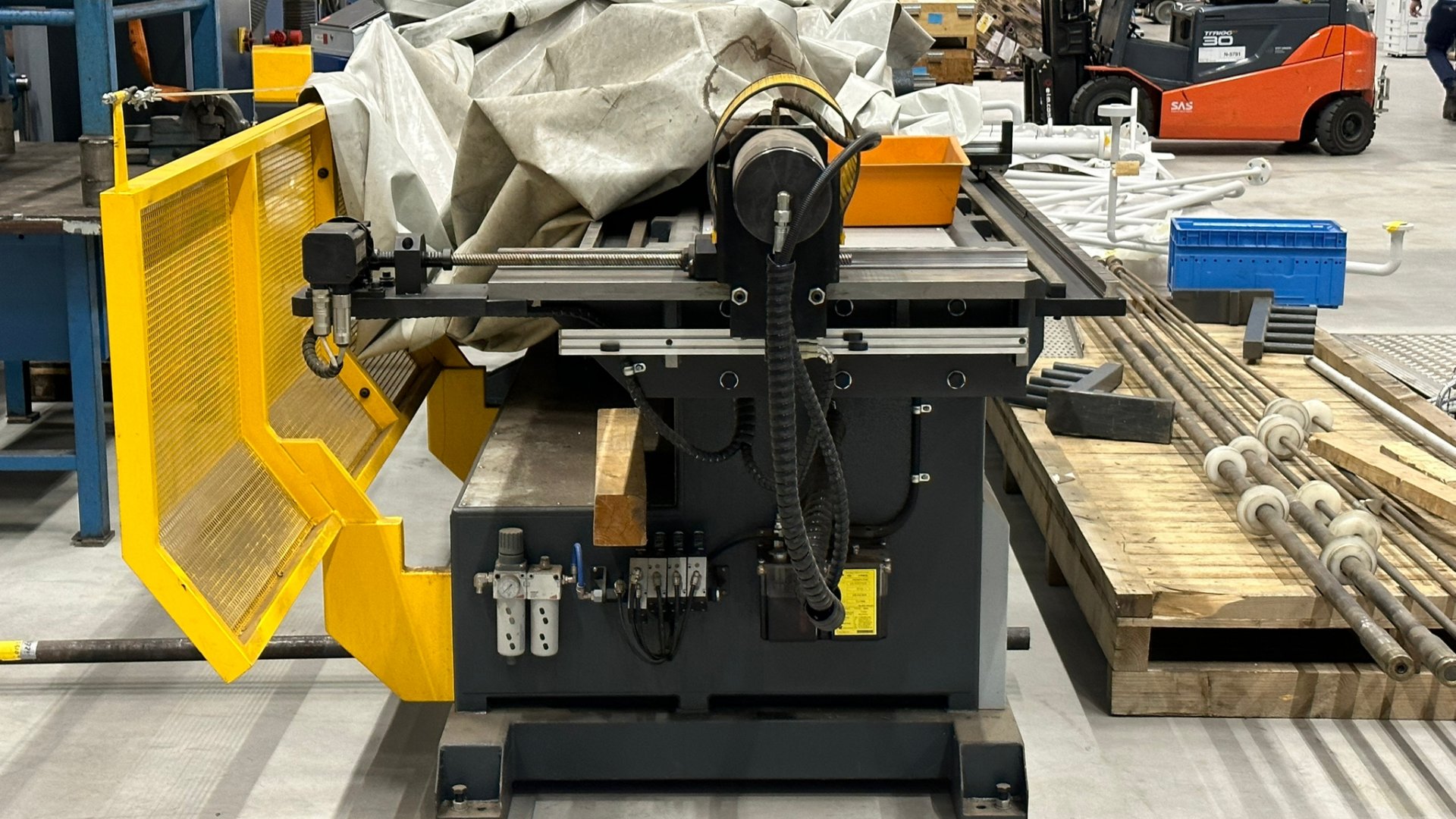

Tube bending machine

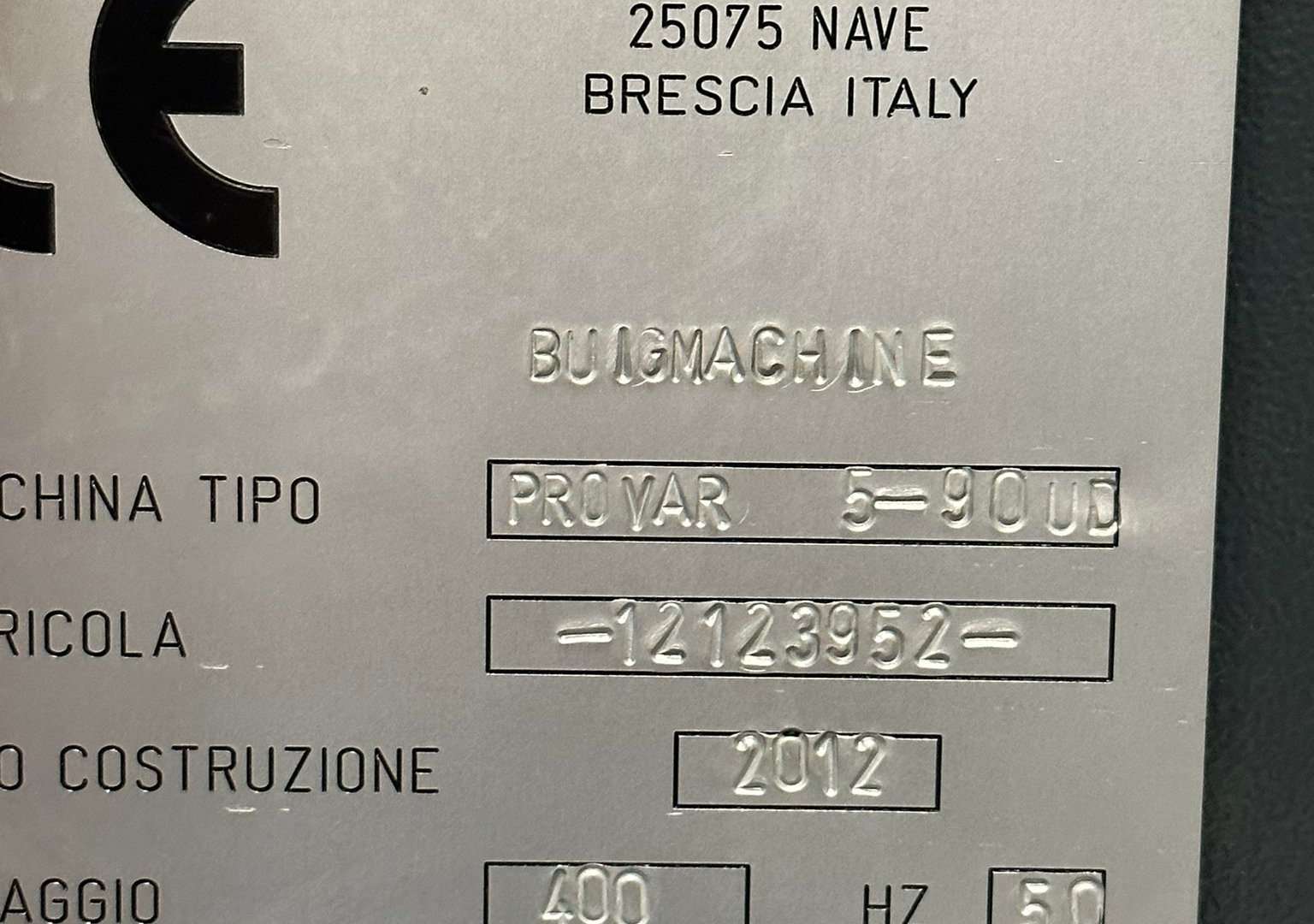

Macri - Provar 5 - 90 UD Controlled 5 axis A,B,Z,X,Y Axis
Y,X,Z,B Accuracy 0,1 Gr
Y, X, Z, B Maximum speed 6 M/Min

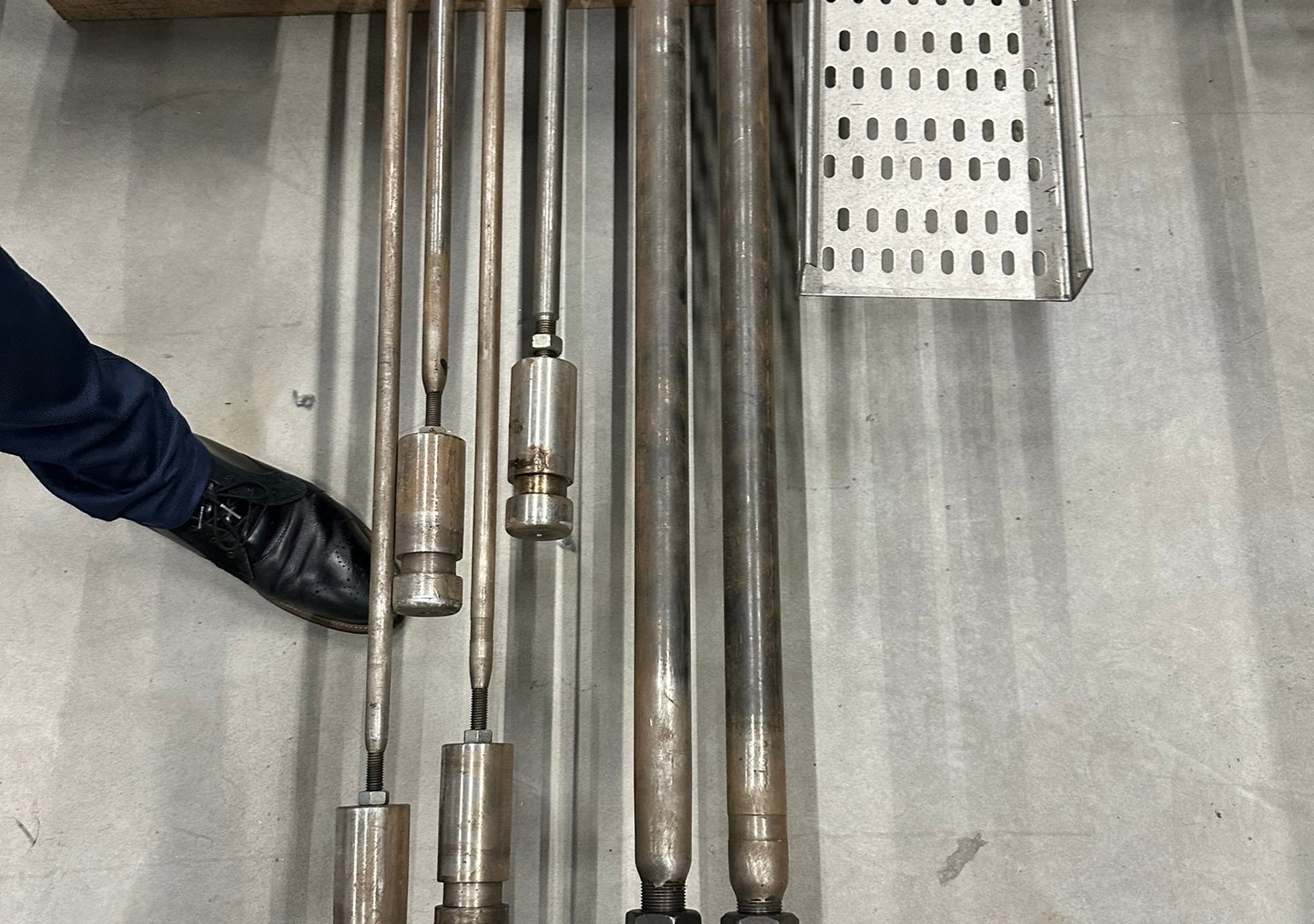

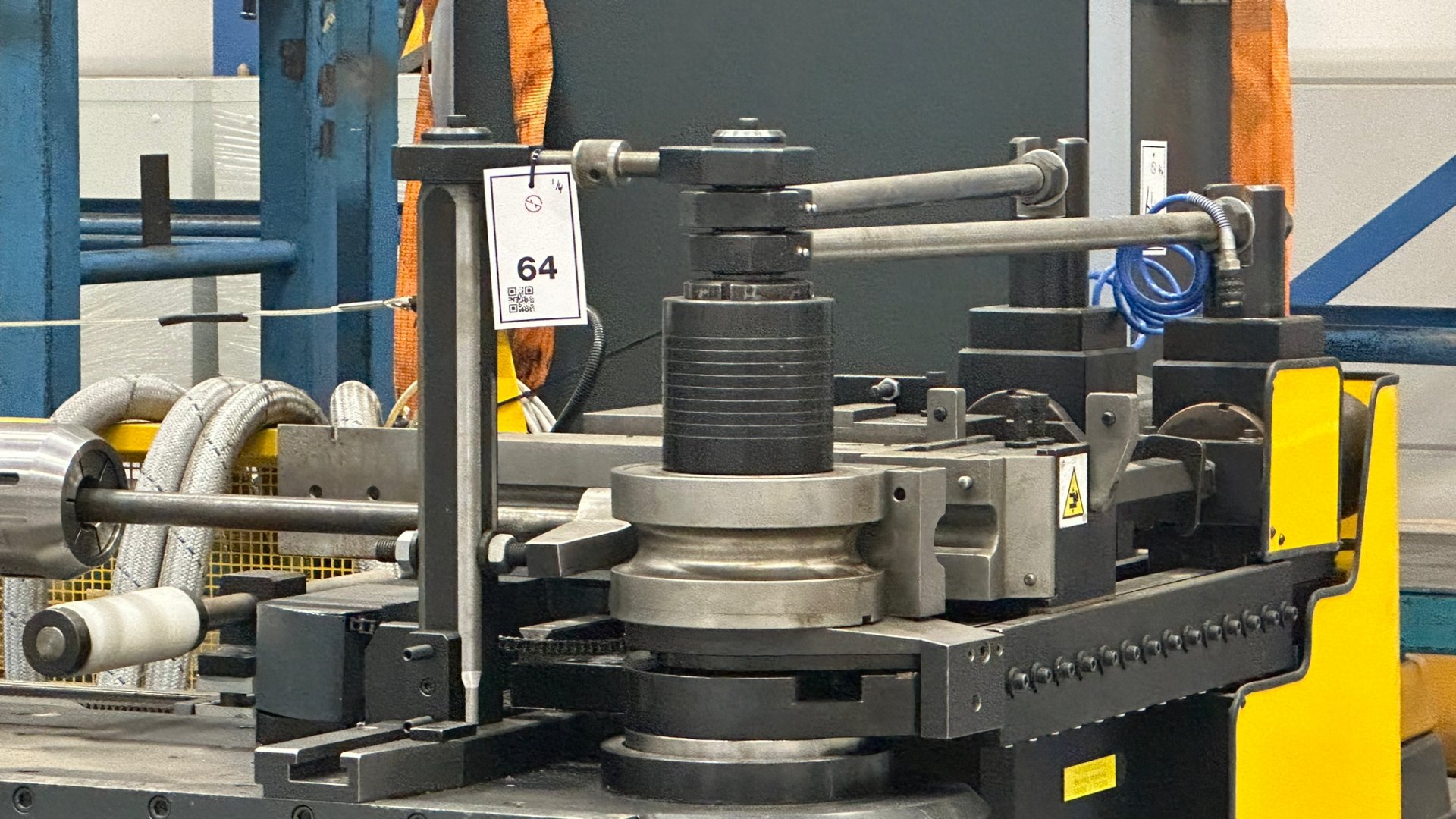

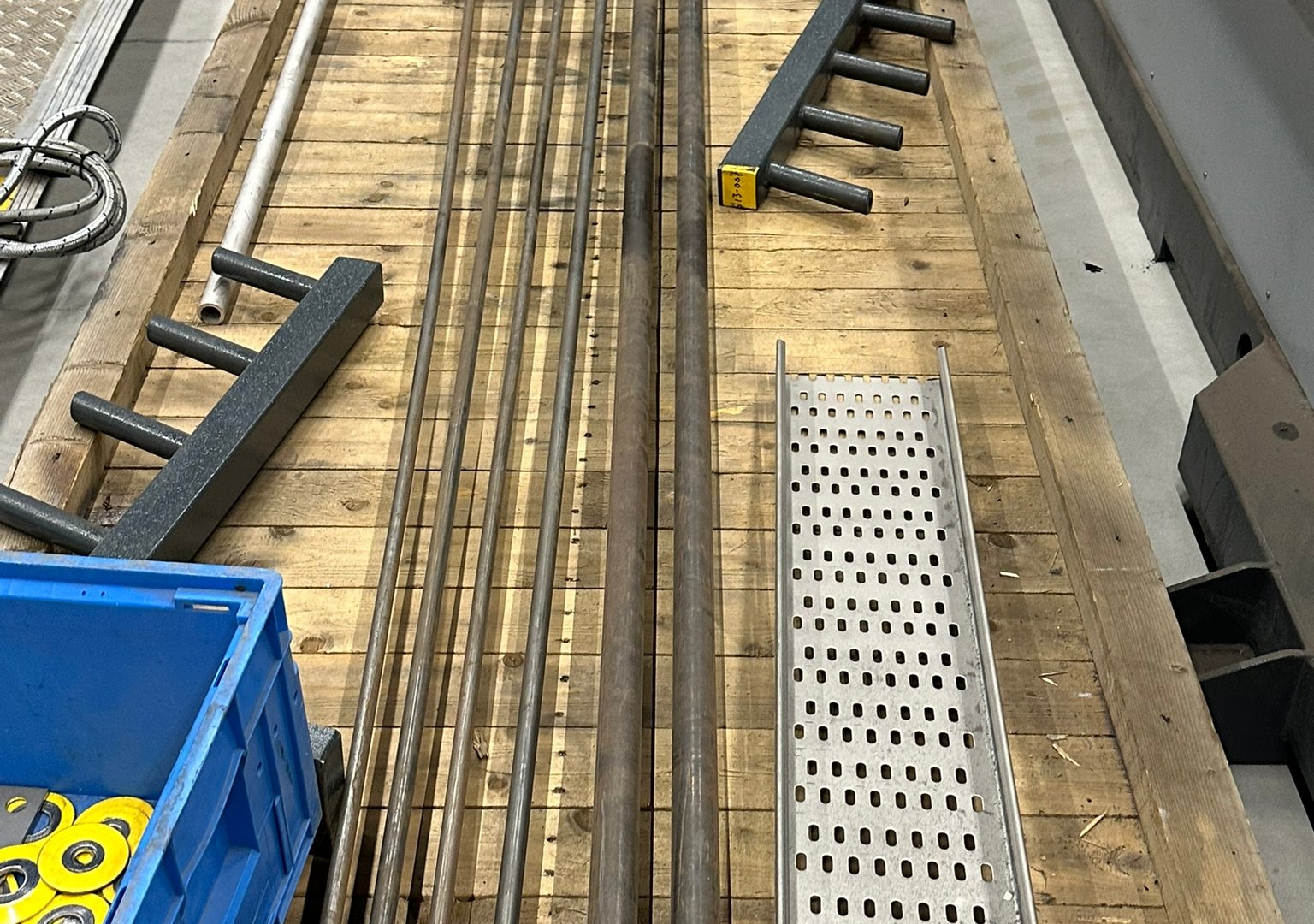

Large tooling package with collet and die blocks
Tooling 25.4 / 26.7 / 31.7 / 33.7 / 38.1 / 42.2 / 46.3 / 48.3
Tooling for steel & stainless steel
Max.Tube Ø: 90mm
Min. Tube Ø: 5mm
Max. Wall thickness:7mm
Max. Bending radius:195mm
Min. Bending radius:5mm
Max. bending length:3600mm
Length: 6000mm
Width: 2400mm
Height: 2400mm
Weight: 7000kg
