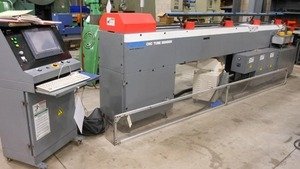

TUBE DIAMETER TO BE BENT: .75” – 1.25”
MAXIMUM BENDING RADIUS: INFINITE, SUFFICIENT ACCURACY CAN BE OBTAINED UP TO APPROX. 30D
MINIMUM BENDING RADIUS (R/D): 3 (2.5)
BENDING CAPACITY: 1.25” X .06”T
MAXIMUM FEED SPEED: 13.78 IPS
MAXIMUM TUBE LENGTH: 78.74”
WEIGHT: 3,100 LBS
SPECIAL FEATURES
CONTINUOUS FREE BENDING OF TUBE
NO DEFORMATION OF TUBE, ALLOWING FOR A UNIFORM WALL THICKNESS AT
BENDS
SPECIAL DIE CONSTRUCTION RESULTS IN CLEAN, SCRATCH FREE TUBE
SURFACE
THE BENDING RADIUS CAN BE EASILY AND CONTINUOUSLY CHANGED
CAN BEND AT AN ANGLE GREATER THAN 180 DEGREES
NC UNIT SPECIFICATIONS
3 CONTROLLED AXES (X, Y, Z)
32K BYTE PROGRAM STORAGE
BASIC FORMAT INPUT ITEMS INCLUDE: LINEAR LENGTH, BENDING RADIUS,
BENDING DIRECTION AND CALCULATION OF TUBE LENGTH
COORDINATE FORMAT INPUTTING THE X/Y/Z COORDINATES OF A LINEAR
SECTION INTERSECTION AND BENDING RADIUS WILL CONVERT TO THE
BASIC FORMAT
