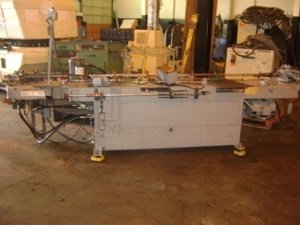

) PRE OWNED 1986 PINES MODEL 1 TUBE BENDER
SERIAL NUMBER: 11045-68333
GENERAL SPECIFICATIONS
MAXIMUM BENDING CAPACITY (1 TUBE)1 3/4”
MAXIMUM BEND ANGLE 180 DEGREE
MAXIMUM TUBE RADIUS10”
MAXIMUM BENDING ARM SPEED17 RPM
MAIN MOTOR HORSEPOWER 5 230/460/3/60 2000 PSI
GENERAL BENDING CAPACITIES
I.P.S. EXTRA HEAVY PIPE 1"
NON-FERROUS TUBING Y.P. TO 12,000 PSI 1-3/4" O.D. X .188" WALL
NON-FERROUS TUBING Y.P. TO 25,000 PSI1-3/4" O.D. X .120" WALL
STEEL TUBING Y.P. TO 40,000 PSI1-3/4" O.D. X .072" WALL
STAINLESS STEEL TUBING Y.P. TO 60,000 PSI1-3/8" O.D. X.065" WALL
STEEL BAR ROUND Y.P. TO 40,000 PSI 7/8" DIAMETER
STEEL BAR SQUARE Y.P. TO 40,000 PSI3/4"
ANGLE IRON Y.P. TO 40,000 PSI1-1/2" X 1-1/2" X 3/16"
SQUARE TUBE (MILD STEEL)1-1/8" X .120" WALL
EQUIPPED WITH
DIGITAL DIAL-A-BEND CONTROLS
BENDING PROGRAM STORAGE AND RECALL
SELF DIAGNOSTICS
PARTS COUNTER
PROGRAMMABLE SPRINGBACK CALCULATIONS
MDI
DIE HOLDERS
REMOTE CONTROL OPERATOR STAND
HAS 1” – 2 ½” R TOOL
OVERALL WEIGHT APPROX. 3100 LBS
OVERALL DIMENSIONS APPROX. 190” L X 40” W X 35” H
