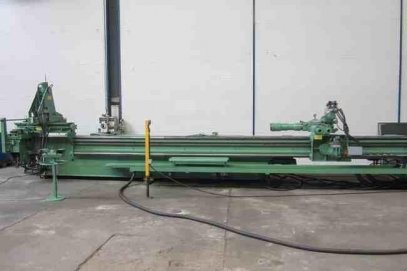

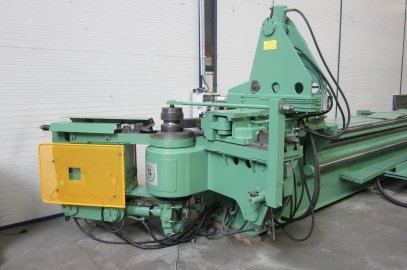

SCHWARZE-WIRTZ, NC80DB, PIPE TUBE & BAR, BENDERS
  • Condition:Used
  • Category:BENDERS
  • Type:PIPE TUBE & BAR
  • Manufacturer:SCHWARZE-WIRTZ
  • Model:NC80DB
  • YOM:1995
  • Location:France
  • Price:-
  • Stock No:05613
  • Control:NC
  • ID:AS22235
Description:
Technical Data:
max. Tube diameter x wall thickness diameter 89 x 5 mm
max. Section modules 26,2 cm3
min. Bending radius up to centre of tube 50 mm
max. Bending radius up to centre of tube 250 mm
Standard tube length for bending with mandrel (extension possible) 5000 mm
max. Bending angle using split/solid former 200°/180°
