Description:

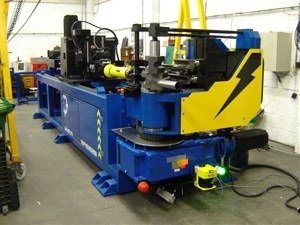

Unison 76mm All Electric CNC bender. Multi-stack with push rolling capability.
Specifications:
PINES MNC-150 CNC ROTARY HYDRAULIC TUBE BENDING MACHINE
M/N: MNC-150 REF: 213B
S/N:
MANUFACTURED: 1982
ROTATION: COUNTER CLOCKWISE
SPECIFICATIONS/CAPACITY
NON-FERROUS TUBING YP TO 25,000 PSI: 6" OD X .250” WALL
STEEL TUBING YP TO 40,000 PSI: 6" OD X .165” WALL
SCH 80 STEEL PIPE: 4"
SQUARE MILD STEEL TUBING: 4" X .250” WALL
MAX RADIUS: 24" CLR
MAX TUBE OVER MANDREL: 12’
MAX DEGREE OF BEND: 180 + OVERBEND
BEND ARM SPEED: 2 RPM
EQUIPPED WITH:
NEW CLAMP HOLDER WITH HALF ROUND
PRESSURE DIE HOLDER AND NEW FOLLOWER BAR
PRESSURE DIE ASSIST WITH PRESSURE CONTROLS
REBUILT SWING ARM, NEW DIE BOSS PLATE, NEW BEARINGS, CHAINS AND SPROCKETS
RE-MACHINED SLIDES AND CAPTURE BARS.
NEW MAIN DRIVE MOTOR - 30 HP, 1725 RPM 230/460VAC.
NEW PARKER HYRAULIC PUMP AND PRESSURE CONTROL VALVES. 2000 PSI SYSTEM.
NEW HOSES, FITTINGS AND HARD PLUMBING
HYDRAULIC MANDREL EXTRACTOR
REBUILT SWING AWAY WIPER DIE BASE AND HOLDER
BIJUR LUBE SYSTEM, LINES, HOSES, METER UNITS AND FITTINGS
REMOTE MOUNTED OPERATOR CONTROL STATION
INCLUDES COLLET PADS:2 X 2, 1.5 X 1.5, 1.25 X 1.25, 2 x3, 1 X 1.75, and 1" round.
CONTROLS:
COMPLETE REWIRE WITH ALL NEW ELECTRICAL COMPONENTS. INCLUDES
BENDPRO CNC, PC BASED TOUCH SCREEN CONTROL WITH WINDOWS XP SOFTWARE. ALL SENSORS, WIRING LIMIT SWITCHES AND COMPONENTS ARE NEMA OR IEC RATED. SEE ENCLOSED.
GENERAL:
OVERALL DIMENSIONS: 6’ W, 16'-10" L, 5' H, WEIGHT APPROX: 18,500LBS
Dimensions:
6' x 24' x 7'
Weight:
17,000
