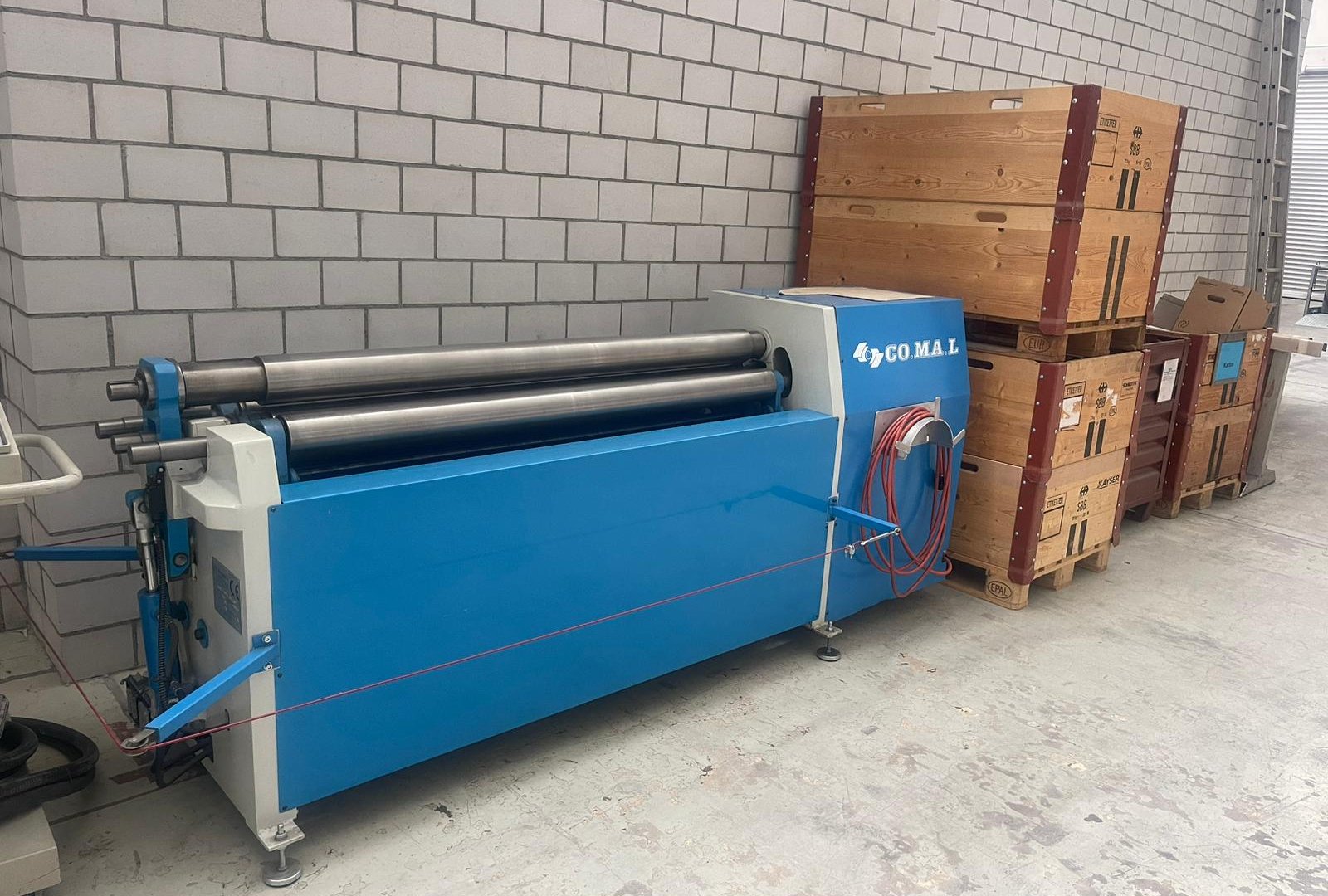

4 roll plate bender
COMAL - Alpha 4
MACH-ID 8555
Make: COMAL
Type: Alpha 4
Year: 2003
Extended rolls end for profile bending jobs
Variomatic speed range
CE-Safety guides
Fully hydraulic machine
Hydraulic drop end
Rolling width: 1550mm
Rolling thickness 3x toproll Ø:2,5mm
Rolling thickness 5x toproll Ø:4mm
Rolling thickness prebending: 2,5mm
Top Roll Ø: 112mm
Bottom Roll Ø: 105mm
Side roll Ø: 105mm
Number of rolls: 4
Rolling speed: 0 - 5
Adjustiment lower roll: 100mm/min.
Adjustment side rolls: 100mm/min.
Length: 2500mm
Width: 1200mm
Height: 1400mm
Weight: 970kg
Specifications:
4 roll plate bender
COMAL - Alpha 4
MACH-ID 8555
Make: COMAL
Type: Alpha 4
Year: 2003
Extended rolls end for profile bending jobs
Variomatic speed range
CE-Safety guides
Fully hydraulic machine
Hydraulic drop end
Rolling width: 1550mm
Rolling thickness 3x toproll Ø:2,5mm
Rolling thickness 5x toproll Ø:4mm
Rolling thickness prebending: 2,5mm
Top Roll Ø: 112mm
Bottom Roll Ø: 105mm
Side roll Ø: 105mm
Number of rolls: 4
Rolling speed: 0 - 5
Adjustiment lower roll: 100mm/min.
Adjustment side rolls: 100mm/min.
Length: 2500mm
Width: 1200mm
Height: 1400mm
Weight: 970kg
