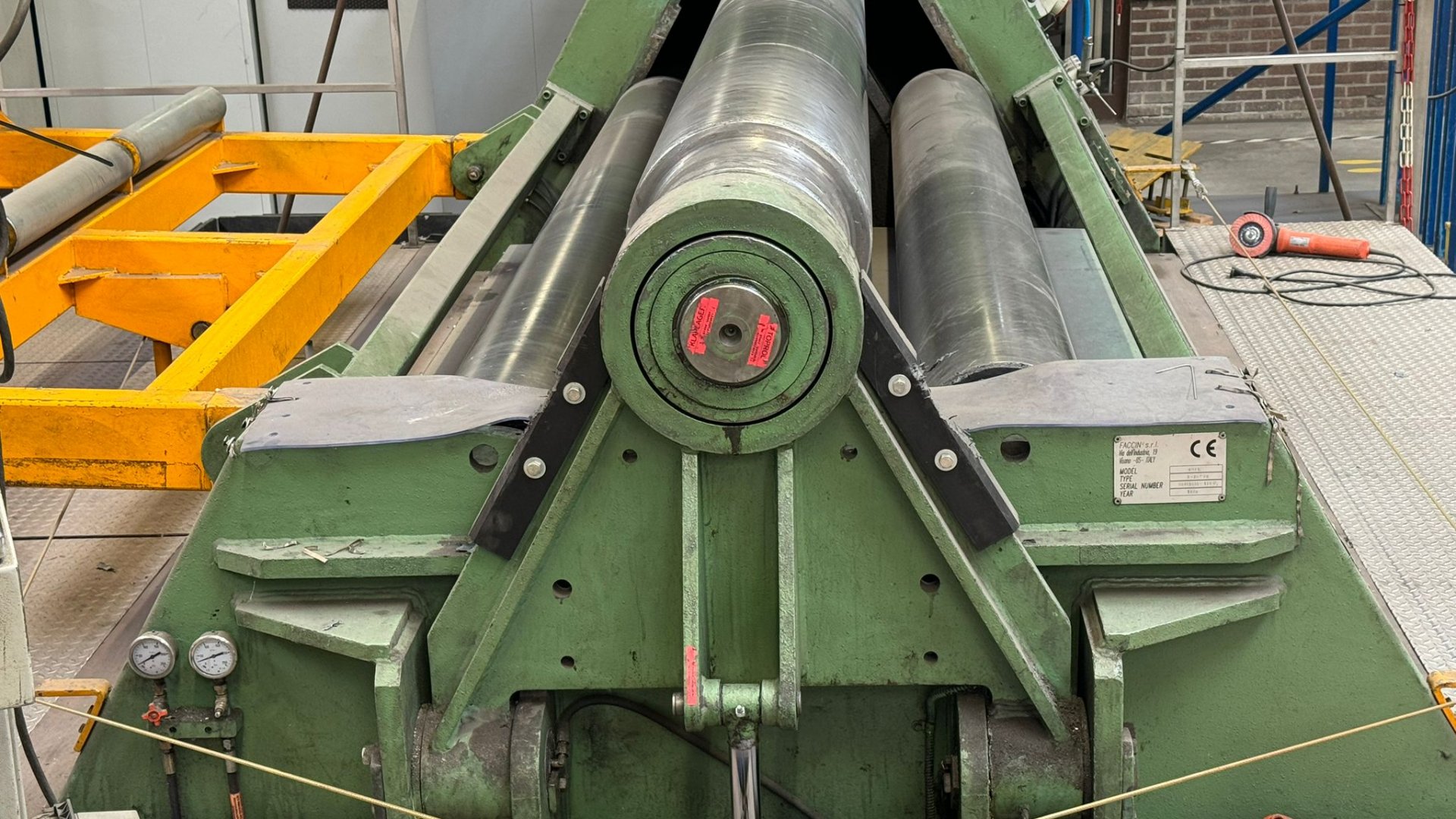

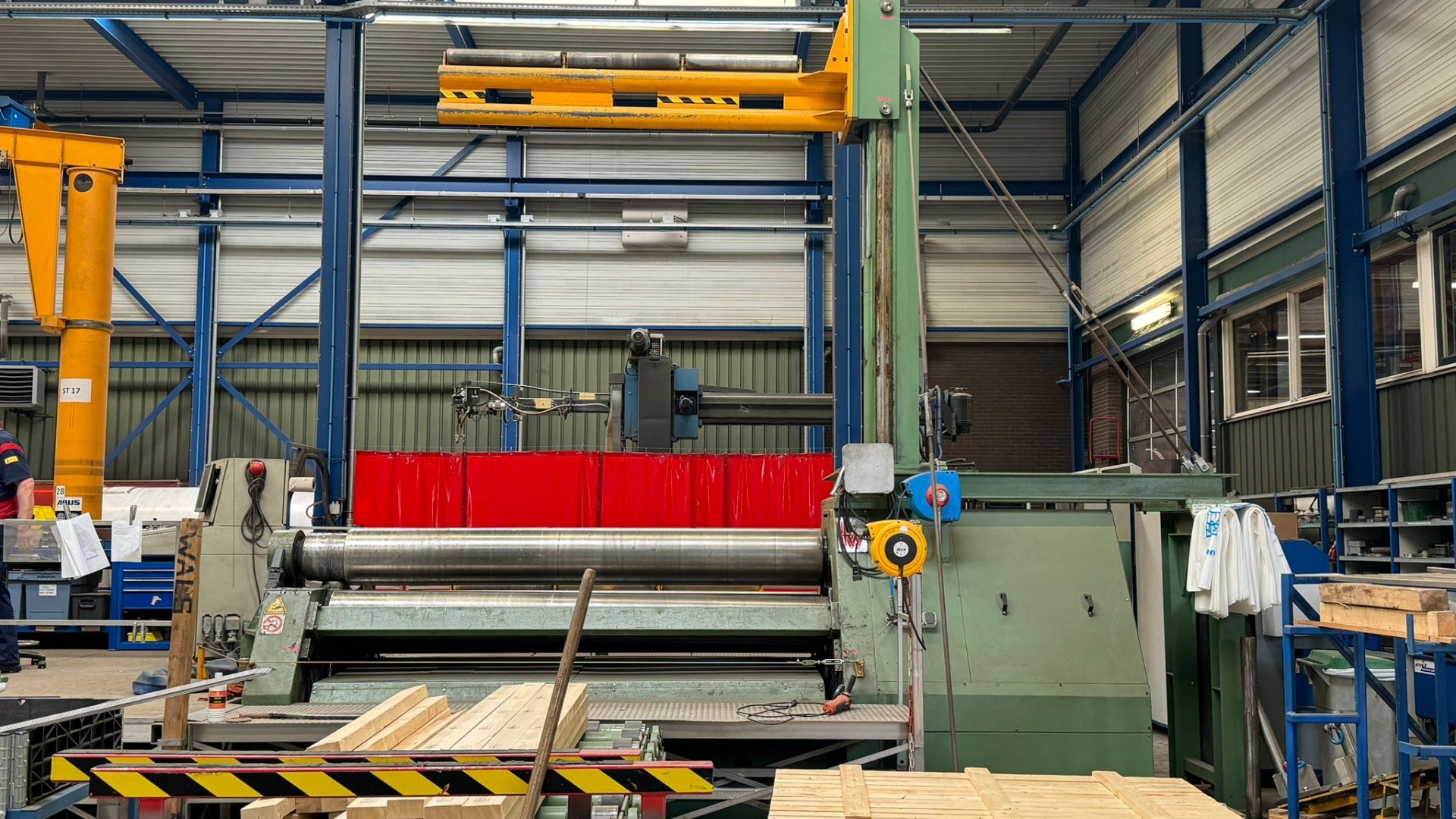

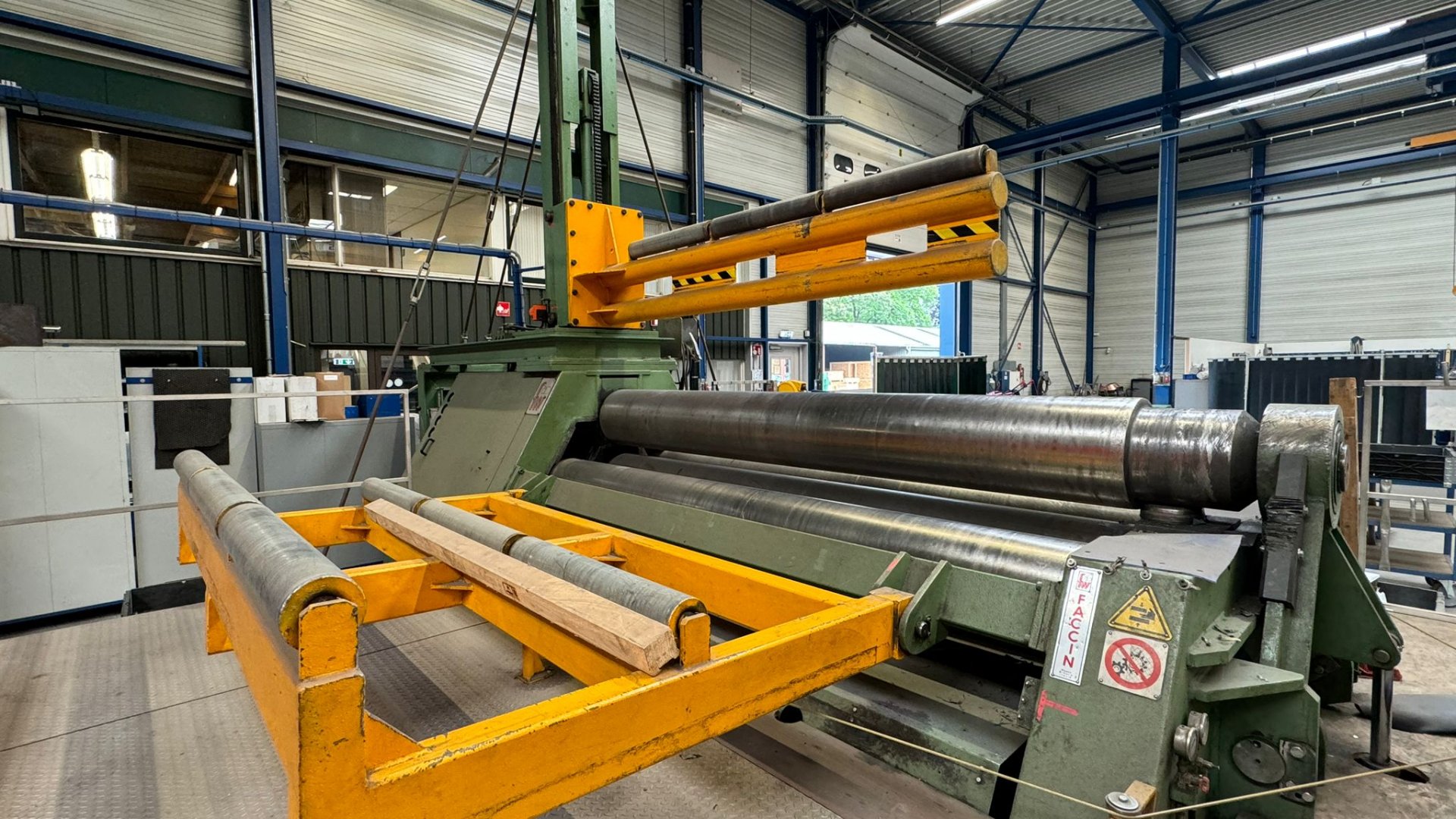

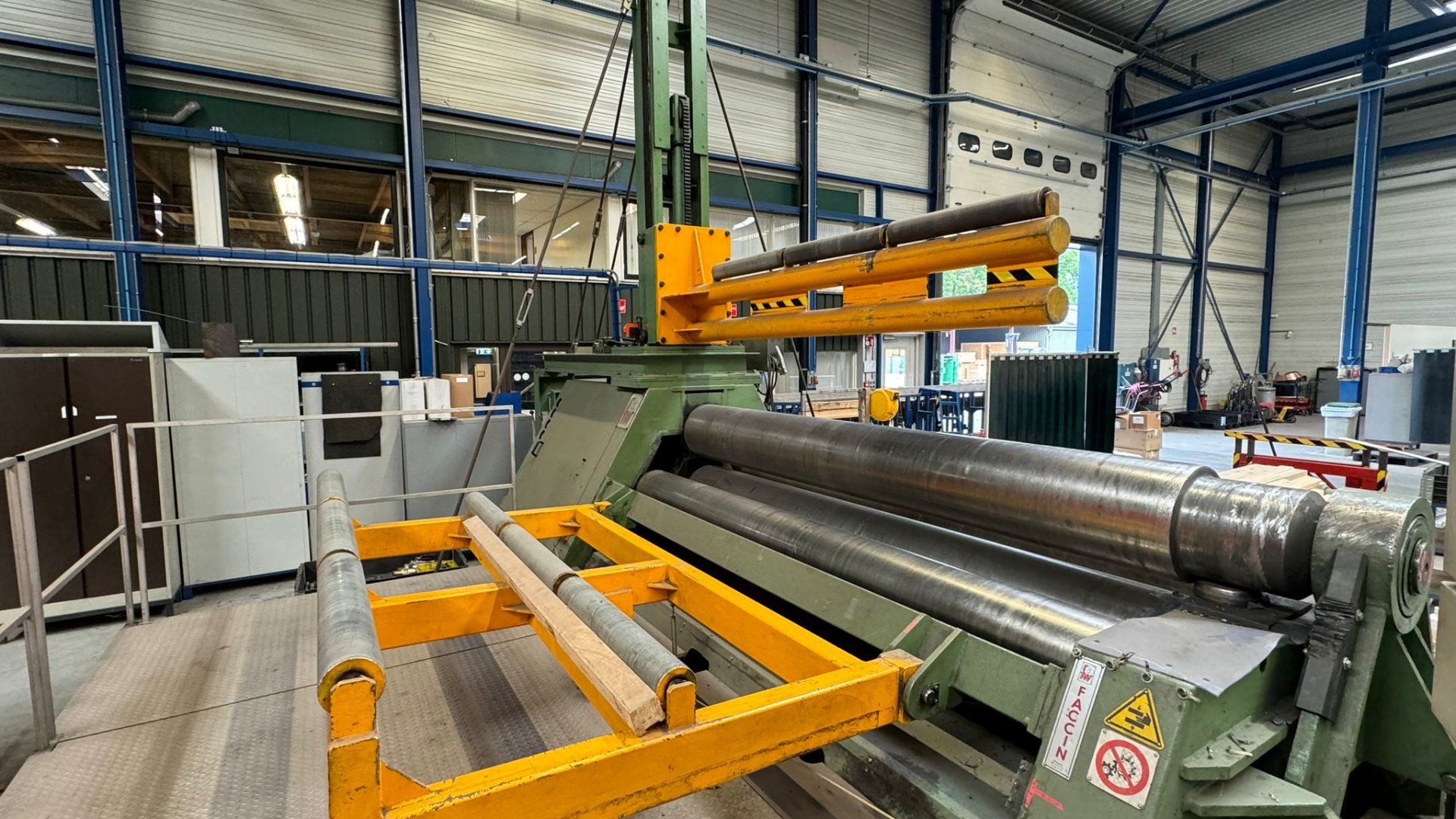

4 roll plate bender
FACCIN - 4HEL 3137
MACH-ID 8733

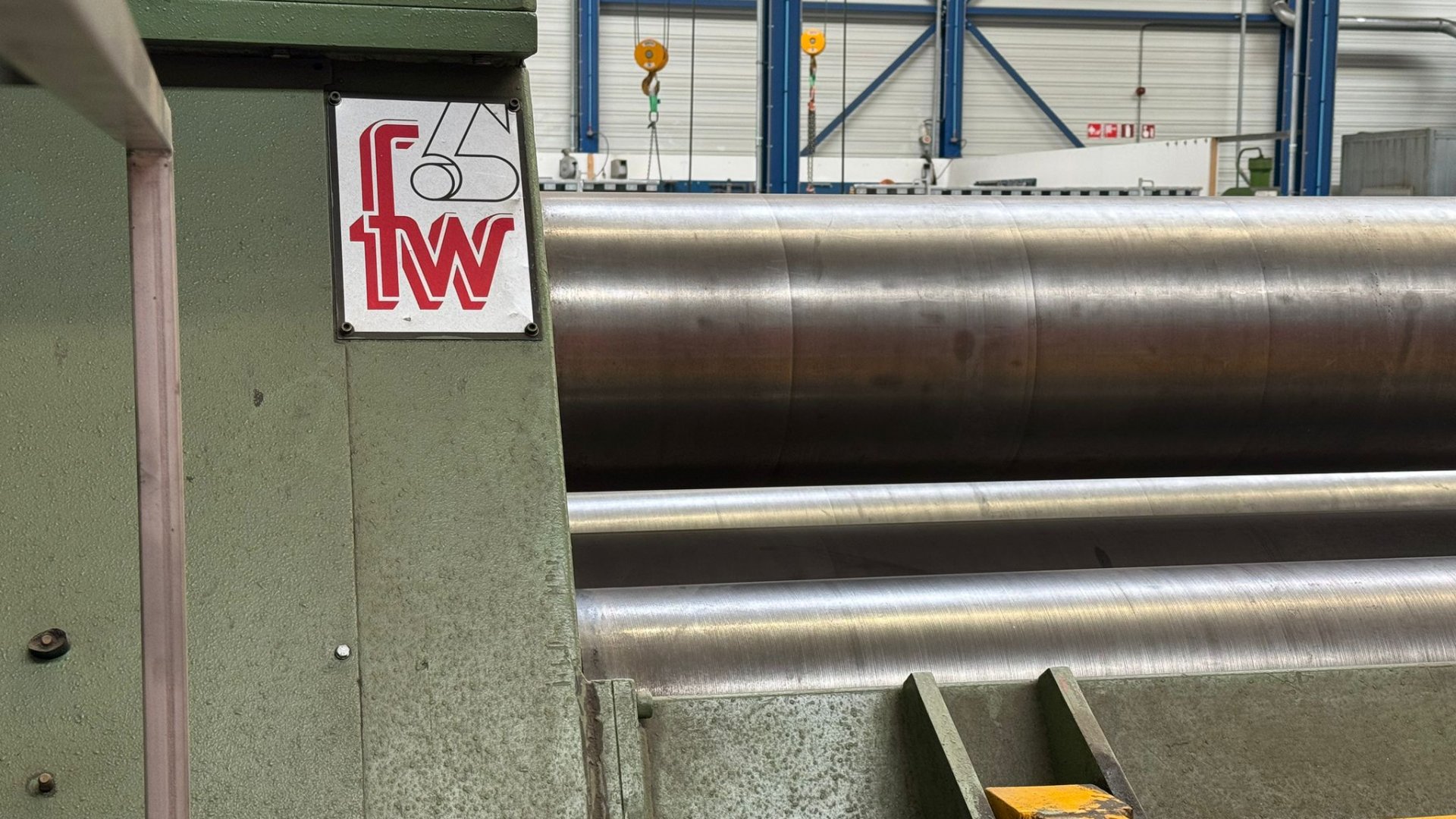

Hardned rolls

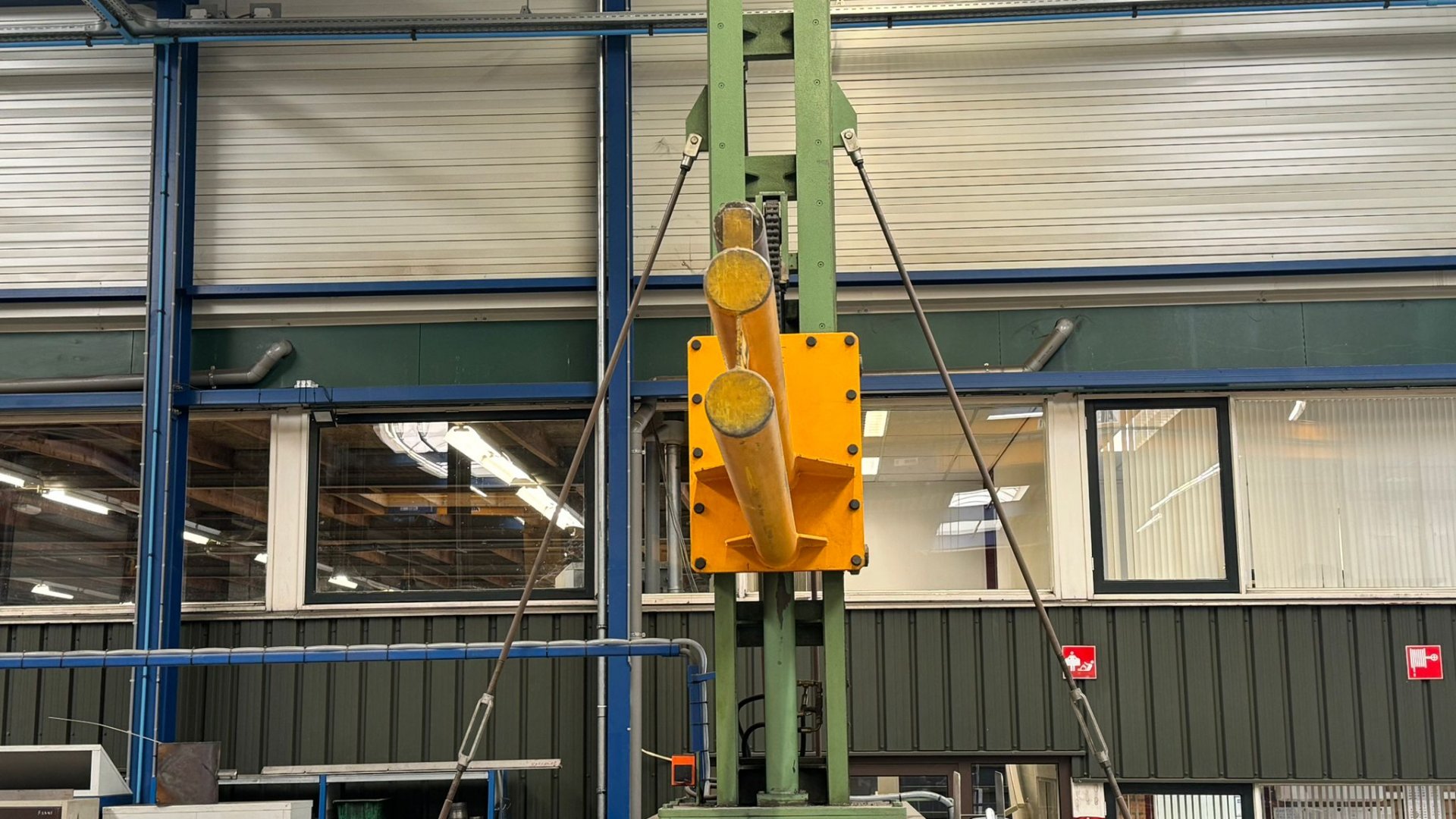

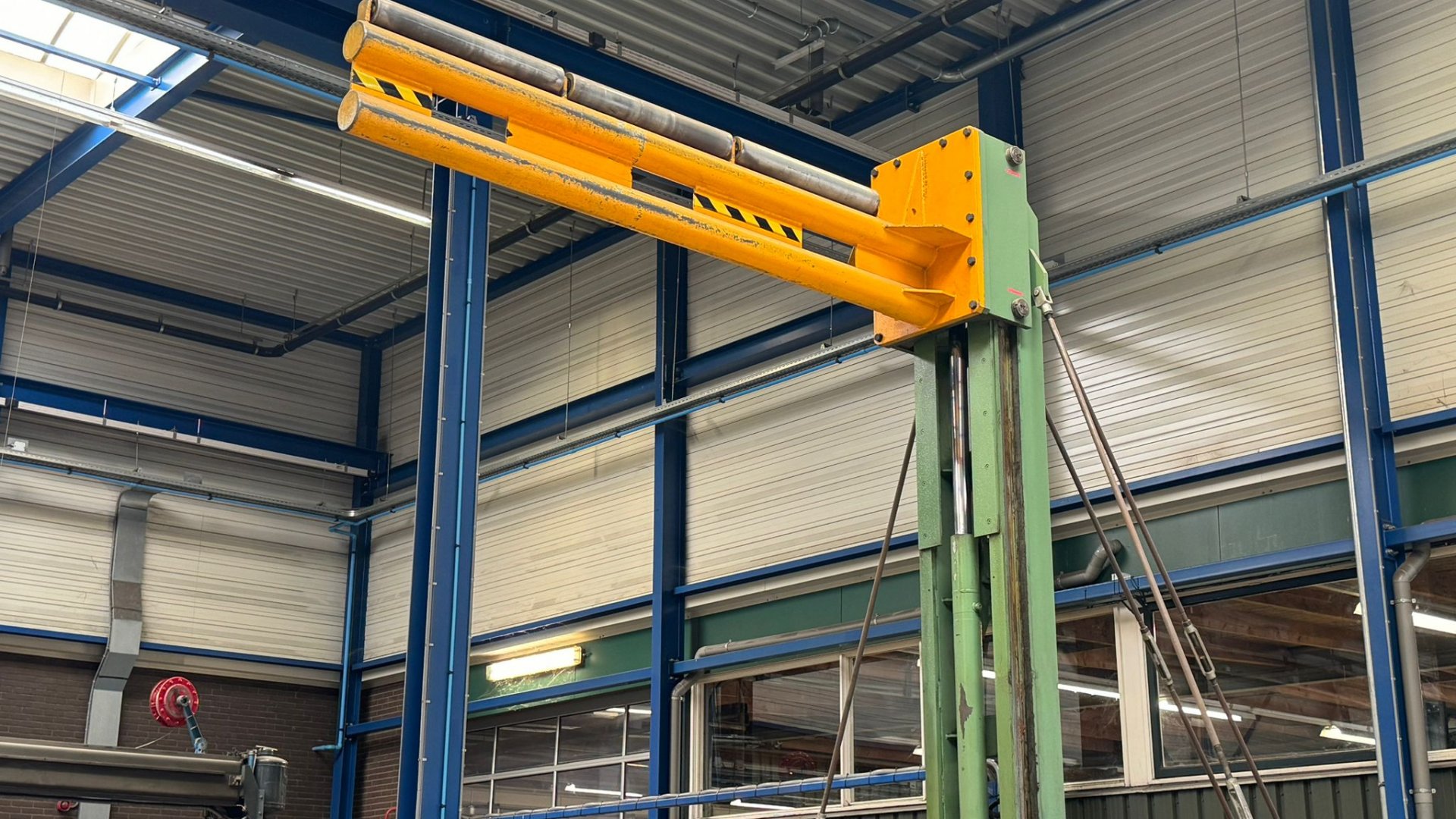

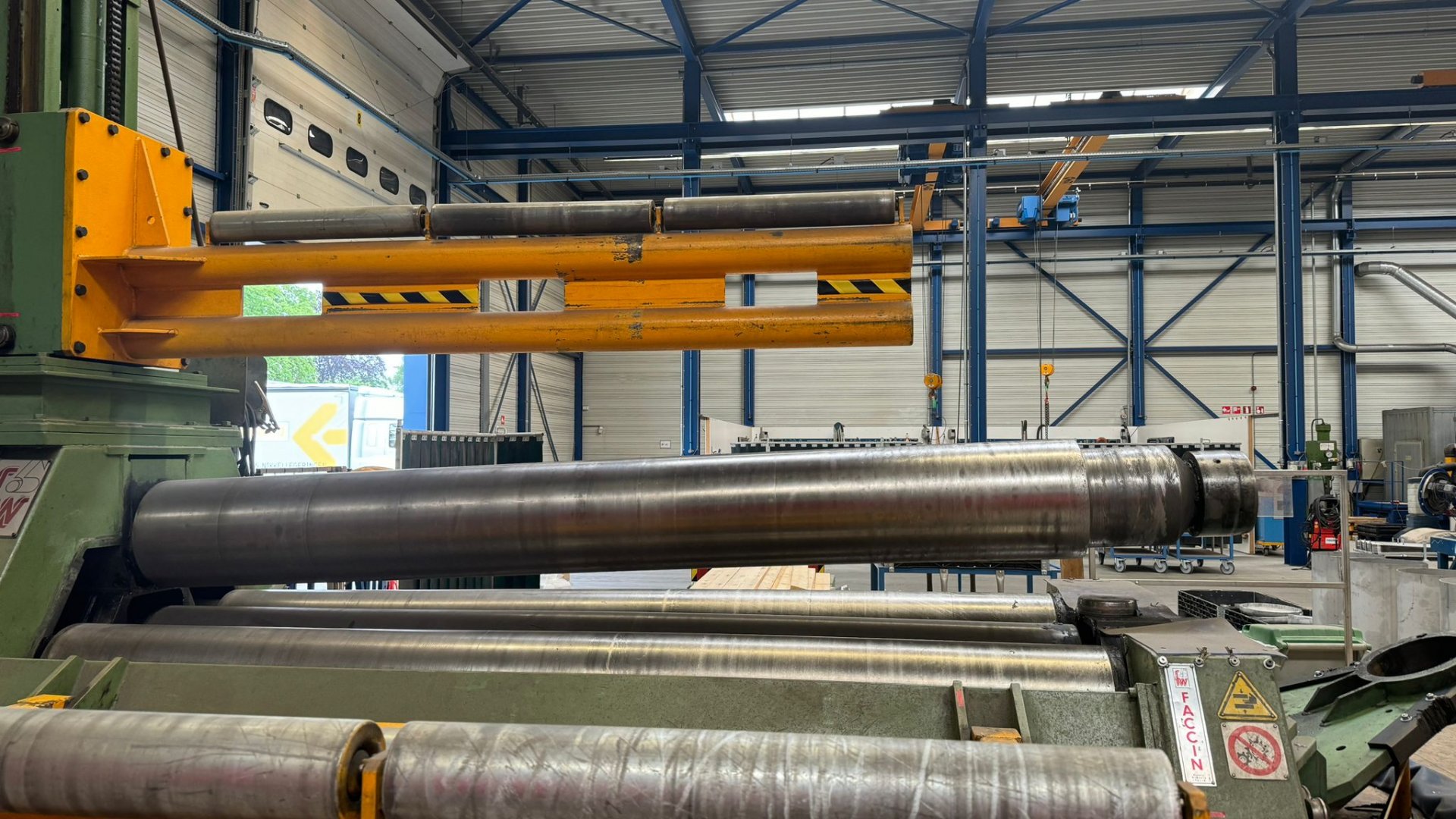

Top support

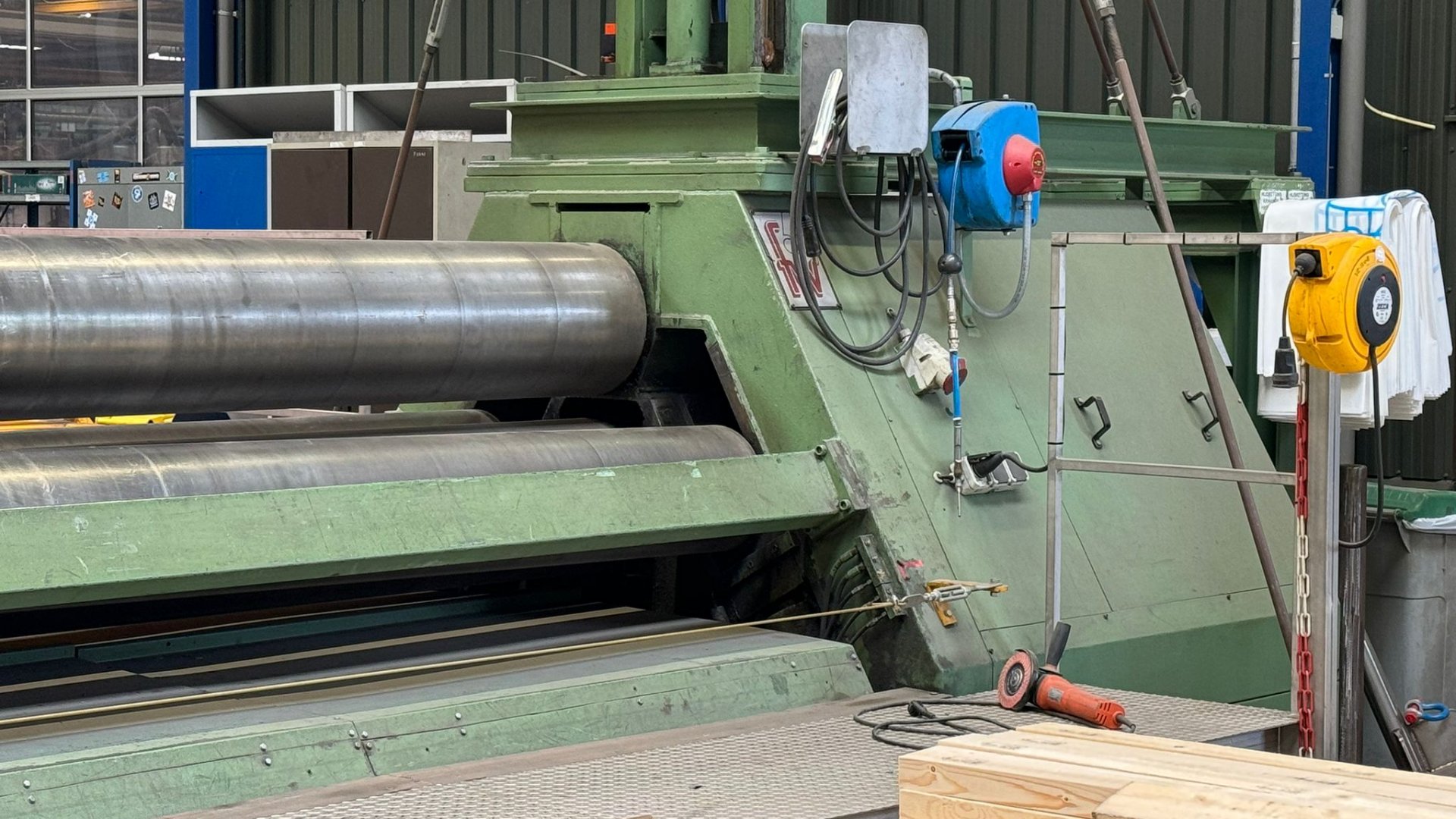

Side support
Conical bending attachment
3 rolls driven
In-Feed table not included
Rolling width: 3100mm
Rolling thickness 3x toproll Ø:25mm
Rolling thickness 5x toproll Ø:28mm
Rolling thickness prebending: 20mm
Top Roll Ø: 370mm
Bottom Roll Ø: 350mm
Side roll Ø: 290mm
Number of rolls: 4
Rolling speed: 0-5
Adjustiment lower roll: 200mm/min.
Adjustment side rolls: 200mm/min.
Top support: Yes
Side supports: Yes
Number of driven rolls: 3
Length: 6000mm
Width: 2300mm
Height: 5800mm
Weight: 20000kg
